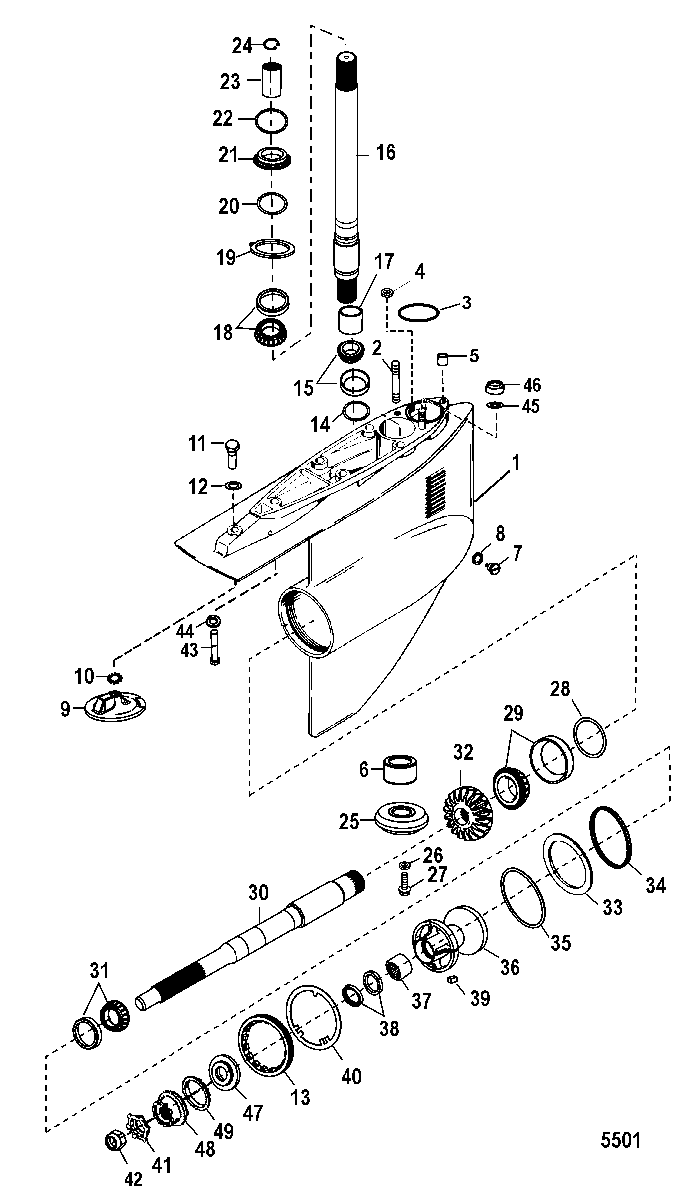

Gear Housing(Bravo Two) для Mercruiser - BRAVO ONE 0W250000 & Up

  • №
    Артикул
    Название
  • -
    1641-8294A19 GEAR HOUSING ASSEMBLY, Complete
    (1.50:1 - 1.65:1 Ratio)
    GEAR HOUSING ASSEMBLY, Complete
    (1.50:1 - 1.65:1 Ratio)
  • -
    1641-8294J02 GEAR HOUSING ASSEMBLY, Complete
    (SEACORE)(1.50:1 - 1.65:1 Ratio)
    GEAR HOUSING ASSEMBLY, Complete
    (SEACORE)(1.50:1 - 1.65:1 Ratio)
  • -
    1641-8294A16 GEAR HOUSING ASSEMBLY, Complete
    (1.81:1 - 2.00:1 - 2.20:1 Ratio)
    GEAR HOUSING ASSEMBLY, Complete
    (1.81:1 - 2.00:1 - 2.20:1 Ratio)
  • -
    1641-8294J01 GEAR HOUSING ASSEMBLY, Complete
    (SEACORE)(1.81:1 - 2.00:1 - 2.20:1 Ratio)
    GEAR HOUSING ASSEMBLY, Complete
    (SEACORE)(1.81:1 - 2.00:1 - 2.20:1 Ratio)
  • 1
    1641-8294A14 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 1
    1641-8294J00 GEAR HOUSING ASSEMBLY, Basic
    (SEACORE)
    GEAR HOUSING ASSEMBLY, Basic
    (SEACORE)
  • 2
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 3
    25-33465 O-RING
    O-RING
  • 4
    26-455771 SEAL
    SEAL
  • 5
    26-805344 SEAL, (.625 Outside Diameter)
    SEAL, (.625 Outside Diameter)
  • 6
    31-86754T BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 7
    22-8M0058389 PLUG KIT, Drain - Magnetic, Magnetic
    PLUG KIT, Drain - Magnetic, Magnetic
  • 8
    26-830749 SEAL
    SEAL
  • 9
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 10
    13-806210 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 11
    10-90084 SCREW, (.437-14 x 1.500)
    SCREW, (.437-14 x 1.500)
  • 12
    12-861854 WASHER, (.453 x .750 x .032) Stainless Steel
    WASHER, (.453 x .750 x .032) Stainless Steel
  • 13
    54163 RETAINER
    RETAINER
  • 13
    8M2000346 RETAINER
    (SEACORE)
    RETAINER
    (SEACORE)
  • 14
    15-92914A1 SHIM KIT
    SHIM KIT
  • 15
    31-8M0103470 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 16
    45-888434A1 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 17
    31-815901 RACE, Bearing
    RACE, Bearing
  • 18
    31-8M0103473 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 19
    14-86739 TAB WASHER
    TAB WASHER
  • 20
    15-86749A1 SHIM KIT
    SHIM KIT
  • 21
    23-8M0046302 SPACER
    SPACER
  • 22
    25-20826 O-RING, (2.230 x .139)
    O-RING, (2.230 x .139)
  • 23
    88243A3 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 24
    53-88242 RING, Retaining
    RING, Retaining
  • 25
    43-41656T GEAR, (16/27), Pinion
    (1.81:1 - 2.00:1 - 2.20:1 Ratio)
    GEAR, (16/27), Pinion
    (1.81:1 - 2.00:1 - 2.20:1 Ratio)
  • 25
    43-827304T GEAR, (18/25), Pinion
    (1.50:1 - 1.65:1 Ratio)
    GEAR, (18/25), Pinion
    (1.50:1 - 1.65:1 Ratio)
  • 26
    12-805068 WASHER, Pinion Gear
    WASHER, Pinion Gear
  • 27
    10-808027 SCREW, Pinion Gear
    SCREW, Pinion Gear
  • 28
    15-55499A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 29
    31-8M0103475 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 30
    44-62820T1 PROPELLER SHAFT
    PROPELLER SHAFT
  • 31
    31-8M0103474 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 32
    43-41657T GEAR, DRIVE
    (1.81:1 - 2.00:1 - 2.20:1 Ratio)
    GEAR, DRIVE
    (1.81:1 - 2.00:1 - 2.20:1 Ratio)
  • 32
    43-827303 GEAR, DRIVE
    (1.50:1 - 1.65:1 Ratio)
    GEAR, DRIVE
    (1.50:1 - 1.65:1 Ratio)
  • 33
    860323 RING, Thrust
    RING, Thrust
  • 34
    23-66093T RING, Load
    RING, Load
  • 35
    25-34821 O-RING
    O-RING
  • 36
    863913A04 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 36
    863913A14 CARRIER ASSEMBLY, Bearing
    (SEACORE)
    CARRIER ASSEMBLY, Bearing
    (SEACORE)
  • 37
    31-54042T BEARING, Roller
    BEARING, Roller
  • 38
    26-814242 SEAL, Oil, Fish-Line Cutter
    SEAL, Oil, Fish-Line Cutter
  • 38
    26-821092 SEAL, Oil
    SEAL, Oil
  • 39
    28-30281 KEY
    KEY
  • 40
    14-54167 TAB WASHER
    TAB WASHER
  • 41
    14-34817 TAB WASHER
    TAB WASHER
  • 42
    11-82671127 PROP NUT, (1.00-14) Brass
    PROP NUT, (1.00-14) Brass
  • 43
    10-90085 SCREW, (.4375-14 x 2.75)
    SCREW, (.4375-14 x 2.75)
  • 44
    13-47659 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 45
    12-861854 WASHER, (.453 x .750 x .032) Stainless Steel
    WASHER, (.453 x .750 x .032) Stainless Steel
  • 46
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 47
    55074T THRUST HUB
    THRUST HUB
  • 48
    12-55073A2 WASHER ASSEMBLY
    WASHER ASSEMBLY
  • 49
    12-55072 WASHER
    WASHER
  • -
    26-76868A04 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    97-888761Q03 ANODE KIT, Aluminum (Bravo II)
    ANODE KIT, Aluminum (Bravo II)
  • -
    97-888760Q03 ANODE KIT, Magnesium (Bravo II)
    ANODE KIT, Magnesium (Bravo II)
