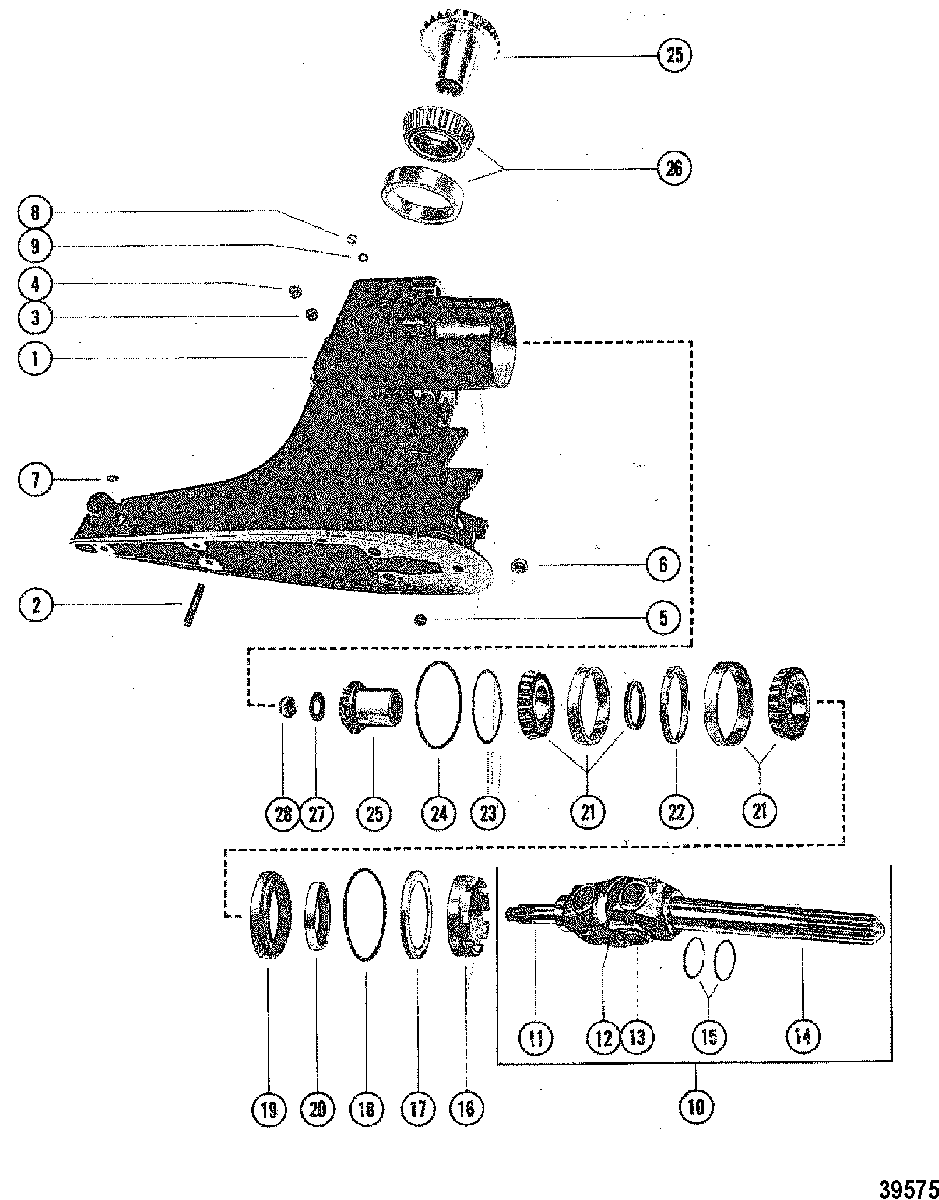

DRIVESHAFT HOUSING AND GEAR ASSEMBLY для Mercruiser - 898 1978-1982 4898730 THRU 6225576

№

Артикул

Название
1

1547-9412A18 HOUSING ASSEMBLY, Driveshaft

HOUSING ASSEMBLY, Driveshaft
2

16-56295 STUD, (.437 x 2.69), DRIVESHAFT HOUSING TO GEAR HOUSING

STUD, (.437 x 2.69), DRIVESHAFT HOUSING TO GEAR HOUSING
3

22-31704 PLUG, PIPE - DRIVESHAFT HOUSING (WATER POCKET)

PLUG, PIPE - DRIVESHAFT HOUSING (WATER POCKET)
4

19-32652 WELCH PLUG, DRIVESHAFT HOUSING

WELCH PLUG, DRIVESHAFT HOUSING
5

23-32632 BUSHING, DRIVESHAFT HOUSING

BUSHING, DRIVESHAFT HOUSING
6

11-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING TO DRIVESHAFT HOUSING STUD

NUT, (.437-20) Stainless Steel, GEAR HOUSING TO DRIVESHAFT HOUSING STUD
7

19-32298 PLUG, TRIM TAB HOLE
(13/32" DIAMETER HOLE)

PLUG, TRIM TAB HOLE
(13/32" DIAMETER HOLE)
7

19-47579 PLUG, TRIM TAB HOLE
(1/2" DIAMETER HOLE)

PLUG, TRIM TAB HOLE
(1/2" DIAMETER HOLE)
8

10-79953Q04 SCREW, (.375-16 x .250), DRIVESHAFT HOUSING GREASE FILLER AND VENT HOLE

SCREW, (.375-16 x .250), DRIVESHAFT HOUSING GREASE FILLER AND VENT HOLE
9

12-191833 WASHER, DRIVESHAFT HOUSING GREASE FILLER AND VENT HOLE SCREW

WASHER, DRIVESHAFT HOUSING GREASE FILLER AND VENT HOLE SCREW
10

58858A1 UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
(IN-LINE ENGINES)

UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
(IN-LINE ENGINES)
10

814819A2 UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
(V-8 ENGINES)

UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
(V-8 ENGINES)
11

46020T02 YOKE, UNIVERSAL JOINT - GEAR END

YOKE, UNIVERSAL JOINT - GEAR END
12

393831 SOCKET, CENTER - UNIVERSAL JOINT

SOCKET, CENTER - UNIVERSAL JOINT
13

75832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT

CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
14

39385A1 YOKE ASSEMBLY, Universal Joint - Coupling End

YOKE ASSEMBLY, Universal Joint - Coupling End
14

59830A7 YOKE ASSEMBLY, UNIVERSAL JOINT - COUPLING END(V-8 ENGINES)

YOKE ASSEMBLY, UNIVERSAL JOINT - COUPLING END(V-8 ENGINES)
15

25-25439 O-RING, (.862 x .103), UNIVERSAL JOINT

O-RING, (.862 x .103), UNIVERSAL JOINT
16

8168112 RETAINER, TARPERED ROLLER - UNIVERSAL JOINT

RETAINER, TARPERED ROLLER - UNIVERSAL JOINT
17

35983 RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER

RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER
18

25-70937 O-RING, OIL SEAL CARRIER

O-RING, OIL SEAL CARRIER
19

66081A2 CARRIER ASSEMBLY, OIL SEAL

CARRIER ASSEMBLY, OIL SEAL
20

26-823894 SEAL, Oil, CARRIER

SEAL, Oil, CARRIER
21

31-35988A12 BEARING ASSEMBLY, Tapered Roller, DRIVE GEAR

BEARING ASSEMBLY, Tapered Roller, DRIVE GEAR
22

23-35985 SPACER, ROLLER BEARING CUPS

SPACER, ROLLER BEARING CUPS
23

15-35980A1 SHIM SET, BEARING CUP TO DRIVESHAFT HOUSING

SHIM SET, BEARING CUP TO DRIVESHAFT HOUSING
24

23-8M0124132 SHIM, Spacer, BEARING CUP TO DRIVESHAFT HOUSING

SHIM, Spacer, BEARING CUP TO DRIVESHAFT HOUSING
25

43-55778A3 GEAR ASSEMBLY, COMPLETE
(1.98 RATIO) (20-24 GEAR RATIO)

GEAR ASSEMBLY, COMPLETE
(1.98 RATIO) (20-24 GEAR RATIO)
25

43-45814A5 GEAR ASSEMBLY, COMPLETE
(1.65 RATIO) (20-24 GEAR RATIO)

GEAR ASSEMBLY, COMPLETE
(1.65 RATIO) (20-24 GEAR RATIO)
25

43-75325A3 GEAR ASSEMBLY, COMPLETE
(1.84 RATIO) (17-19 GEAR RATIO)

GEAR ASSEMBLY, COMPLETE
(1.84 RATIO) (17-19 GEAR RATIO)
25

43-18411A2 GEAR ASSEMBLY, COMPLETE
(1.50 RATIO) (20-22 GEAR RATIO)

GEAR ASSEMBLY, COMPLETE
(1.50 RATIO) (20-22 GEAR RATIO)
26

31-35990A1 BEARING ASSEMBLY, Roller, PINION GEAR

BEARING ASSEMBLY, Roller, PINION GEAR
27

12-45810 WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT

WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT
28

11-22339 NUT, (.625-18), DRIVE GEAR TO UNIVERSAL JOINT

NUT, (.625-18), DRIVE GEAR TO UNIVERSAL JOINT
-

26-33144A2 SEAL KIT

SEAL KIT
-

26-32511A1 SEAL KIT

SEAL KIT
