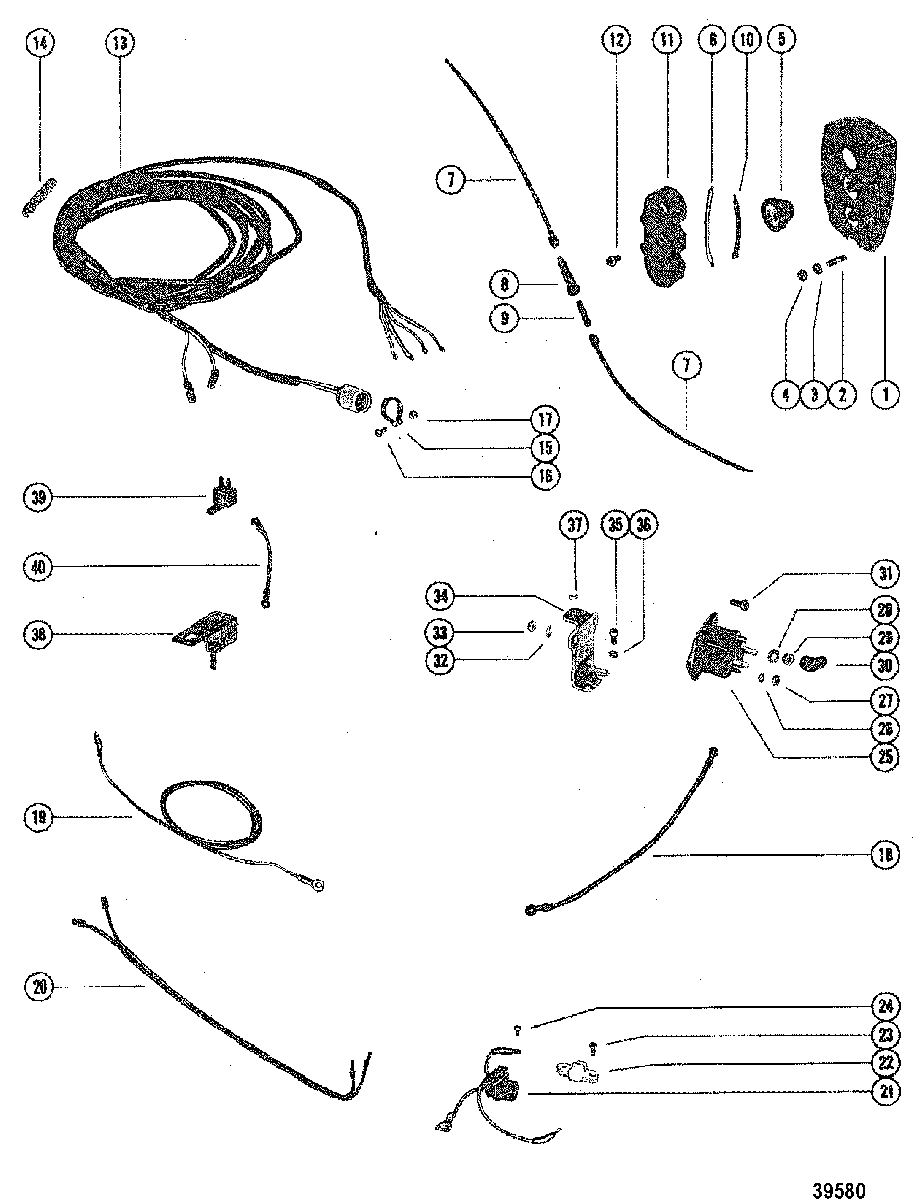

CONTROL PANEL ASSEMBLY для Mercruiser - 898 1978-1982 4898730 THRU 6225576

№

Артикул

Название
-

55642A13 CONTROL PANEL ASSEMBLY, COMPLETE

CONTROL PANEL ASSEMBLY, COMPLETE
1

55642A17 PANEL, CONTROL

PANEL, CONTROL
2

16-55422 STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT

STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT
3

12-24676 WASHER, (.200 x .440 x .032), CONTROL PANEL STUD

WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
4

11-27164 NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD

NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
5

55738A1 SWITCH ASSEMBLY, PUSH BUTTON-CONTROL PANEL

SWITCH ASSEMBLY, PUSH BUTTON-CONTROL PANEL
6

48078 WIRE, Jumper (RED-3 1/4")-USE WITHOUT FUSE

WIRE, Jumper (RED-3 1/4")-USE WITHOUT FUSE
7

84-69174A2 WIRE, (24.00 Inches) (RED)

WIRE, (24.00 Inches) (RED)
8

88-69358A1 CAP ASSEMBLY, FUSE HOLDER

CAP ASSEMBLY, FUSE HOLDER
9

88-79091 FUSE, 20 Ampere

FUSE, 20 Ampere
10

53107 WIRE, Jumper (3.00 Inches) (PURPLE)

WIRE, Jumper (3.00 Inches) (PURPLE)
11

55641 RETAINER, PUSH BUTTON SWITCH

RETAINER, PUSH BUTTON SWITCH
12

10-62568 SCREW, (#10-16 x .375), SWITCH RETAINER TO CONTROL PANEL

SCREW, (#10-16 x .375), SWITCH RETAINER TO CONTROL PANEL
13

84-87394A20 HARNESS ASSEMBLY, CONTROL PANEL

HARNESS ASSEMBLY, CONTROL PANEL
14

33865 BINDER, NYLON-CONTROL PANEL HARNESS

BINDER, NYLON-CONTROL PANEL HARNESS
15

95814 CLAMP, HARNESS ATTACHING

CLAMP, HARNESS ATTACHING
16

10-29227 SCREW, (#8-32 x 0.50), HARNESS ATTACHING CLAMP

SCREW, (#8-32 x 0.50), HARNESS ATTACHING CLAMP
17

11-34388 NUT, HARNESS ATTACHING CLAMP SCREW

NUT, HARNESS ATTACHING CLAMP SCREW
18

52752 WIRE, Jumper, STARTER SOLENOID TO MOUNTING BRACKET

WIRE, Jumper, STARTER SOLENOID TO MOUNTING BRACKET
19

45551 LEAD, Battery (POSITIVE)
18" LONG

LEAD, Battery (POSITIVE)
18" LONG
19

45552 LEAD, Battery (NEGATIVE)
18" LONG

LEAD, Battery (NEGATIVE)
18" LONG
19

84-79139A9 CABLE ASSEMBLY, Battery (POSITIVE)
72" LONG

CABLE ASSEMBLY, Battery (POSITIVE)
72" LONG
19

84-79138A1 CABLE ASSEMBLY (NEGATIVE)
72" LONG

CABLE ASSEMBLY (NEGATIVE)
72" LONG
20

84-93542A1 HARNESS ASSEMBLY, HYDRAULIC PUMP

HARNESS ASSEMBLY, HYDRAULIC PUMP
21

84-74023A1 HARNESS ASSEMBLY (USE WITHOUT FUSE)

HARNESS ASSEMBLY (USE WITHOUT FUSE)
21

84-79147A3 HARNESS ASSEMBLY (USE WITH FUSE)

HARNESS ASSEMBLY (USE WITH FUSE)
22

45559 TERMINAL BLOCK, HYDRAULIC PUMP

TERMINAL BLOCK, HYDRAULIC PUMP
23

10-35519 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)
24

10-48409 SCREW, (#10-16 x .625) Stainless Steel

SCREW, (#10-16 x .625) Stainless Steel
25

89-853654A1 SOLENOID, Starter

SOLENOID, Starter
26

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel
27

11-68219 NUT, (#10-32) Stainless Steel

NUT, (#10-32) Stainless Steel
28

13-26993 LOCKWASHER, (.312)

LOCKWASHER, (.312)
29

11-68292 NUT, (.312-18)

NUT, (.312-18)
30

46265 BOOT, RUBBER-STARTER SOLENOID TERMINAL

BOOT, RUBBER-STARTER SOLENOID TERMINAL
31

10-98256 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (1/2")

SCREW, STARTER SOLENOID TO MOUNTING BRACKET (1/2")
32

13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW

LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
33

11-21825 NUT, (.250-28), STARTER SOLENOID SCREW

NUT, (.250-28), STARTER SOLENOID SCREW
34

74407T BRACKET, MOUNTING-STARTER SOLENOID

BRACKET, MOUNTING-STARTER SOLENOID
35

10-21140 SCREW, (.250-28 x .50)

SCREW, (.250-28 x .50)
36

13-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW

LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
37

11-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT

NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
38

88-79023T90 FUSE ASSEMBLY, 90 Ampere

FUSE ASSEMBLY, 90 Ampere
39

88-79137 BREAKER, Circuit

BREAKER, Circuit
40

84-79148A1 WIRE ASSEMBLY, Jumper (RED)

WIRE ASSEMBLY, Jumper (RED)
