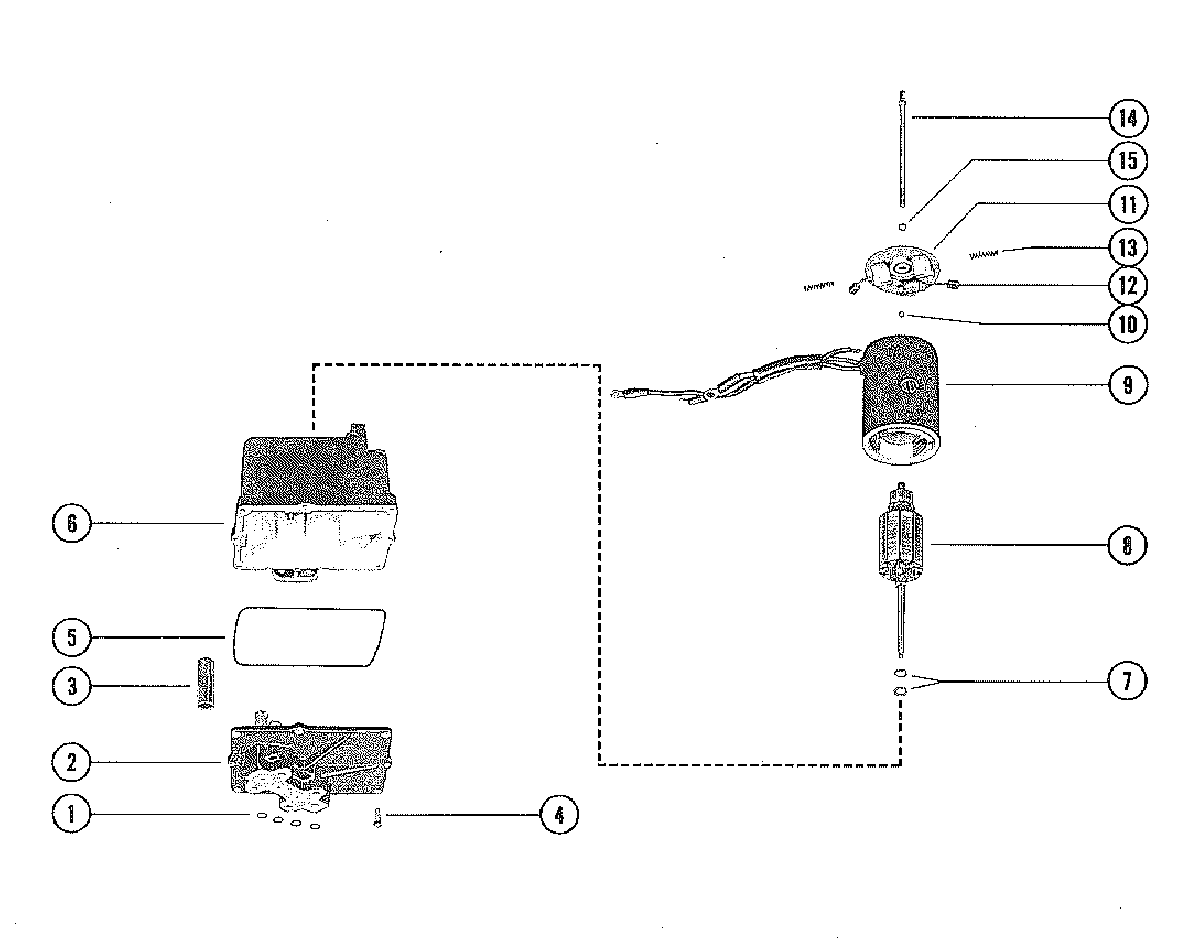

HYDRAULIC PUMP ASSEMBLY, COMPLETE для Mercruiser - 888 1971-1977 3106717 AND UP
-
№АртикулНазвание
-
-93247A7 HYDRAULIC PUMP ASSEMBLY, COMPLETEHYDRAULIC PUMP ASSEMBLY, COMPLETE
-
125-48171 "O"RING, HYDRAULIC PUMP"O"RING, HYDRAULIC PUMP
-
2392-7734 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
3392-2618 CAM, VALVE BODYCAM, VALVE BODY
-
410-20411 SCREW, VALVE BODY TO RESERVOIR (5/8")SCREW, VALVE BODY TO RESERVOIR (5/8")
-
5392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEARSEAL, RESERVOIR TO VALVE BODY AND GEAR
-
6392-2939 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
7392-2623 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
8392-2943 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
9392-2942 FIELD AND GRAME ASSEMBLYFIELD AND GRAME ASSEMBLY
-
10392-2944 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
11392-2940 PLATE ASSEMBLY, COMMUTATOR ENDPLATE ASSEMBLY, COMMUTATOR END
-
12392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
13392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
14392-2938 BOLT SET, THRU- PLATE AND FRAME TO RESERVOIRBOLT SET, THRU- PLATE AND FRAME TO RESERVOIR
-
1513-26996 LOCKWASHER, TRU BOLTLOCKWASHER, TRU BOLT
