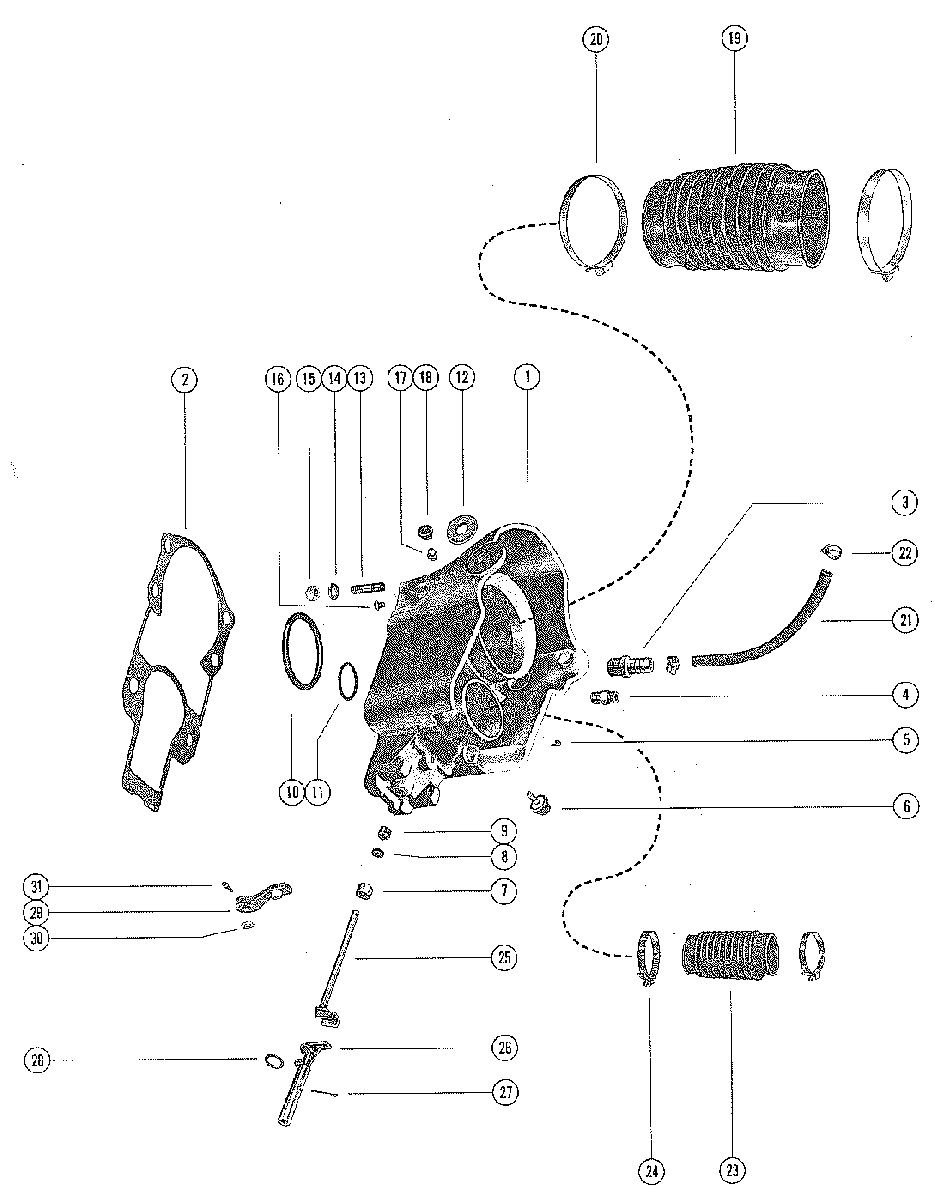

BELL HOUSING ASSEMBLY для Mercruiser - 888 1971-1977 3106717 AND UP

  • №
    Артикул
    Название
  • 1
    68417A1 BELL HOUSING ASSEMBLY
    SERIAL 00000000-03472477
    BELL HOUSING ASSEMBLY
    SERIAL 00000000-03472477
  • 1
    68417A1 BELL HOUSING ASSEMBLY
    SERIAL 03472478-03784374
    BELL HOUSING ASSEMBLY
    SERIAL 03472478-03784374
  • 1
    68417A1 BELL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)
    BELL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)
  • 1
    42815A6 BELL ASSEMBLY (WITH GIMBAL TRIM SENDER)
    BELL ASSEMBLY (WITH GIMBAL TRIM SENDER)
  • 2
    27-64818Q4 GASKET, DRIVE SHAFT HAG. TO BELL HAG.(PART OF DRIVE SHAFT H)
    GASKET, DRIVE SHAFT HAG. TO BELL HAG.(PART OF DRIVE SHAFT H)
  • 3
    22-33066 CONNECTOR, WATER HOSE TO BELL HOUSING
    CONNECTOR, WATER HOSE TO BELL HOUSING
  • 4
    22-32125 CONNECTOR, SHIFT CABLE - BELL HOUSING (EARLY MODELS)
    CONNECTOR, SHIFT CABLE - BELL HOUSING (EARLY MODELS)
  • 5
    10-25612 SCREW, DRIVE - BELL HOUSING FLANGE
    SCREW, DRIVE - BELL HOUSING FLANGE
  • 6
    31014 BUMPER, BELL HOUSING
    SERIAL 00000000-03472477
    BUMPER, BELL HOUSING
    SERIAL 00000000-03472477
  • 6
    63679 BUMPER, BELL HOUSING
    SERIAL 03472478-09999999
    BUMPER, BELL HOUSING
    SERIAL 03472478-09999999
  • 7
    23-814308 BUSHING, BELL HOUSING (5/8")
    BUSHING, BELL HOUSING (5/8")
  • 8
    26-45587 OIL SEAL, BELL HOUSING
    OIL SEAL, BELL HOUSING
  • 9
    23-805041A2 BUSHING, BELL HOUSING (5/16")
    BUSHING, BELL HOUSING (5/16")
  • 10
    27-35982 GASKET, RUBBER - BELL HOUSING
    GASKET, RUBBER - BELL HOUSING
  • 11
    25-33504 "O" RING, BELL HOUSING
    "O" RING, BELL HOUSING
  • 12
    12-38000 WASHER, SYNTHANE - BELL HOUSING (WITHOUT GIMBAL TRIM SENDER)
    WASHER, SYNTHANE - BELL HOUSING (WITHOUT GIMBAL TRIM SENDER)
  • 12
    12-72498 WASHER, SYNTHANE - BELL HOUSING (WITH GIMBAL TRIM SENDER)
    WASHER, SYNTHANE - BELL HOUSING (WITH GIMBAL TRIM SENDER)
  • 13
    16-59579 STUD, BELL HOUSING TO DRIVE SHAFT HOUSING
    STUD, BELL HOUSING TO DRIVE SHAFT HOUSING
  • 14
    12-35935 WASHER, BELL HOUSING STUD
    WASHER, BELL HOUSING STUD
  • 15
    11-34933 NUT, BELL HOUSING STUD
    NUT, BELL HOUSING STUD
  • 16
    10-36398 SCREW, PLUG - BELL HOSUING (1/4")
    WITHOUT GIMBAL TRIM SENDER
    SCREW, PLUG - BELL HOSUING (1/4")
    WITHOUT GIMBAL TRIM SENDER
  • 17
    22-74036 FITTING, GREASE - BELL HOUSING
    WITHOUT GIMBAL TRIM SENDER
    FITTING, GREASE - BELL HOUSING
    WITHOUT GIMBAL TRIM SENDER
  • 18
    19-77633Q LUBRICAP, BELL HOUSING GREASE FITTING
    WITHOUT GIMBAL TRIM SENDER
    LUBRICAP, BELL HOUSING GREASE FITTING
    WITHOUT GIMBAL TRIM SENDER
  • 19
    36223A2 BELLOWS ASSEMBLY, UNIVERSAL JOINT
    SERIAL 00000000-03472477
    BELLOWS ASSEMBLY, UNIVERSAL JOINT
    SERIAL 00000000-03472477
  • 19
    60932A4 BELLOWS ASSEMBLY, UNIVERSAL JOINT
    SERIAL 03472478-09999999
    BELLOWS ASSEMBLY, UNIVERSAL JOINT
    SERIAL 03472478-09999999
  • 20
    54-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSING AND GIMBAL HO
    CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSING AND GIMBAL HO
  • 21
    32-47642 HOSE, WATER - BELL HOUSING TO GIMBAL HOUSING
    HOSE, WATER - BELL HOUSING TO GIMBAL HOUSING
  • 22
    54-815504310 CLAMP, WATER HOSE ATTACHING
    CLAMP, WATER HOSE ATTACHING
  • 23
    18654A1 BELLOWS, EXHAUST - BELL HOUSING TO GIMBAL HOUSING
    BELLOWS, EXHAUST - BELL HOUSING TO GIMBAL HOUSING
  • 24
    54-815504348 CLAMP, EXHAUST BELLOWS TO BELL HOUSING AND GIMBAL HOUSING
    CLAMP, EXHAUST BELLOWS TO BELL HOUSING AND GIMBAL HOUSING
  • 25
    45589A3 SHAFT ASSEMBLY, SHIFT - UPPER
    SHAFT ASSEMBLY, SHIFT - UPPER
  • 26
    32628T SHAFT, SHIFT - INTERMEDIATE
    SERIAL 00000000-03472478
    SHAFT, SHIFT - INTERMEDIATE
    SERIAL 00000000-03472478
  • 26
    621041 SHAFT, SHIFT - INTERMEDIATE
    SERIAL 03248348-09999999
    SHAFT, SHIFT - INTERMEDIATE
    SERIAL 03248348-09999999
  • 27
    18-32665 COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
    COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
  • 28
    12-32666 WASHER, INTERMEDIATE SHIFT SHAFT
    WASHER, INTERMEDIATE SHIFT SHAFT
  • 29
    45518A3 LEVER ASSEMBLY, UPPER SHIFT SHAFT
    LEVER ASSEMBLY, UPPER SHIFT SHAFT
  • 30
    12-39116 WASHER, UPPER SHIFT LEVER
    WASHER, UPPER SHIFT LEVER
  • 31
    10-8M0084649 SCREW, UPPER SHIFT LEVER TO SHIFT SHAFT (1 1/16")
    SCREW, UPPER SHIFT LEVER TO SHIFT SHAFT (1 1/16")
