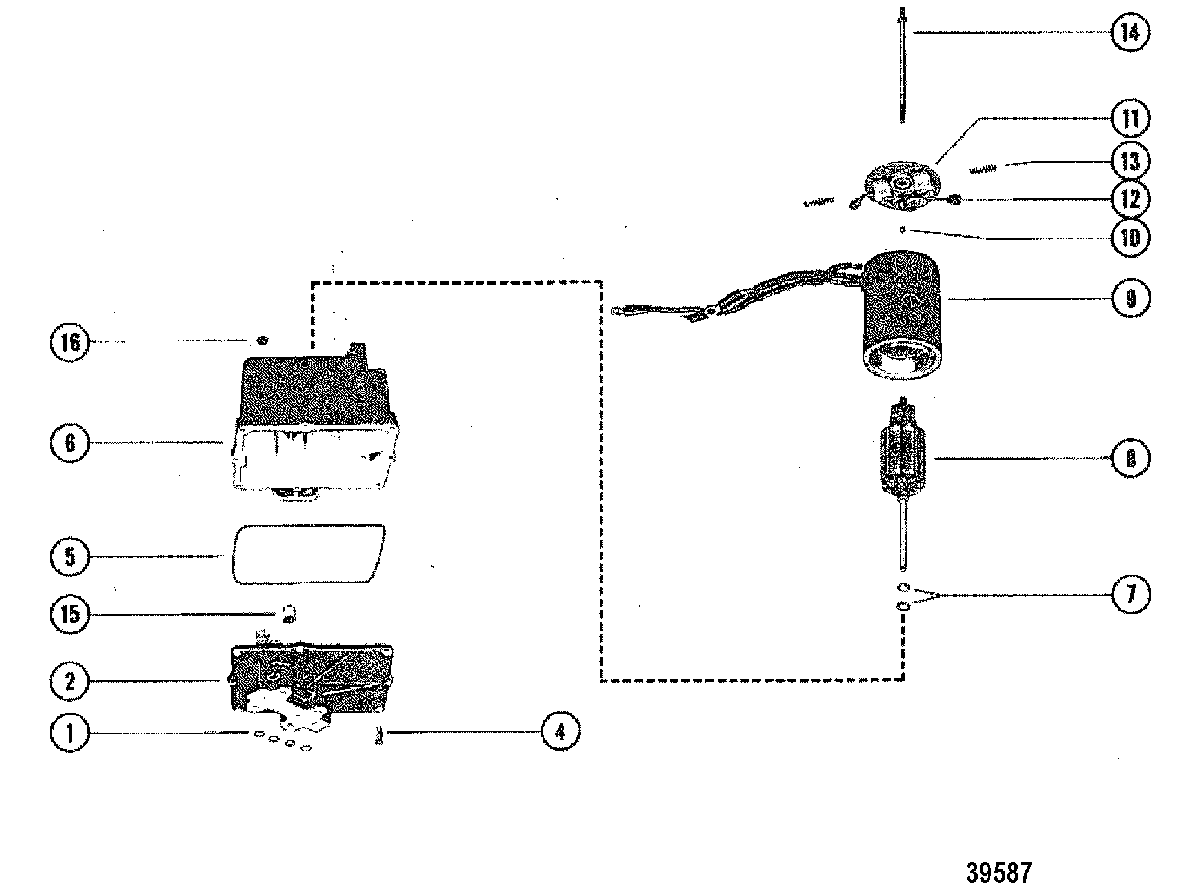

HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR) для Mercruiser - 485 1980-1982 4893835 & Up
-
№АртикулНазвание
-
-93247A7 PUMP ASSEMBLY, Hydraulic, COMPLETE
Use with Control ValvePUMP ASSEMBLY, Hydraulic, COMPLETE
Use with Control Valve -
-93247A7 PUMP ASSEMBLY, Hydraulic, COMPLETE
Use without Control ValvePUMP ASSEMBLY, Hydraulic, COMPLETE
Use without Control Valve -
125-48171 O-RING, (.364. x .070)
Use with Hydraulic Pump with Control ValveO-RING, (.364. x .070)
Use with Hydraulic Pump with Control Valve -
2392-7734 VALVE BODY AND GEAR ASSEMBLY
Use with Hydraulic Pump with Control ValveVALVE BODY AND GEAR ASSEMBLY
Use with Hydraulic Pump with Control Valve -
293247A7 VALVE BODY AND GEAR ASSEMBLY
Use with Hydraulic Pump without Control ValveVALVE BODY AND GEAR ASSEMBLY
Use with Hydraulic Pump without Control Valve -
410-69570 SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIRSCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR
-
5392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEARSEAL, RESERVOIR TO VALVE BODY AND GEAR
-
6392-7731 RESEROVIR ASSEMBLY (PLASTIC)RESEROVIR ASSEMBLY (PLASTIC)
-
7392-7732 WASHER, THRUST-ARMATUREWASHER, THRUST-ARMATURE
-
8392-7729 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
9392-2942 FIELD AND FRAME ASSEMBLY
Use with Hydraulic Pump with Control ValveFIELD AND FRAME ASSEMBLY
Use with Hydraulic Pump with Control Valve -
9392-8261 FIELD AND FRAME ASSEMBLY
Use with Hydraulic Pump without Control ValveFIELD AND FRAME ASSEMBLY
Use with Hydraulic Pump without Control Valve -
10392-7730 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
11392-2940 PLATE ASSEMBLY, COMMUTATOR END
Use with Hydraulic Pump with Control ValvePLATE ASSEMBLY, COMMUTATOR END
Use with Hydraulic Pump with Control Valve -
11392-8262 PLATE ASSEMBLY, COMMUTATOR END
Use with Hydraulic Pump without Control ValvePLATE ASSEMBLY, COMMUTATOR END
Use with Hydraulic Pump without Control Valve -
12392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
13392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
14392-7733 BOLT SET, THRU-PLATE AND FRAME TO RESERVOIRBOLT SET, THRU-PLATE AND FRAME TO RESERVOIR
-
15392-7727 COUPLER AND SHAFTCOUPLER AND SHAFT
-
16392-7728 FILL PLUG, RESERVOIRFILL PLUG, RESERVOIR
