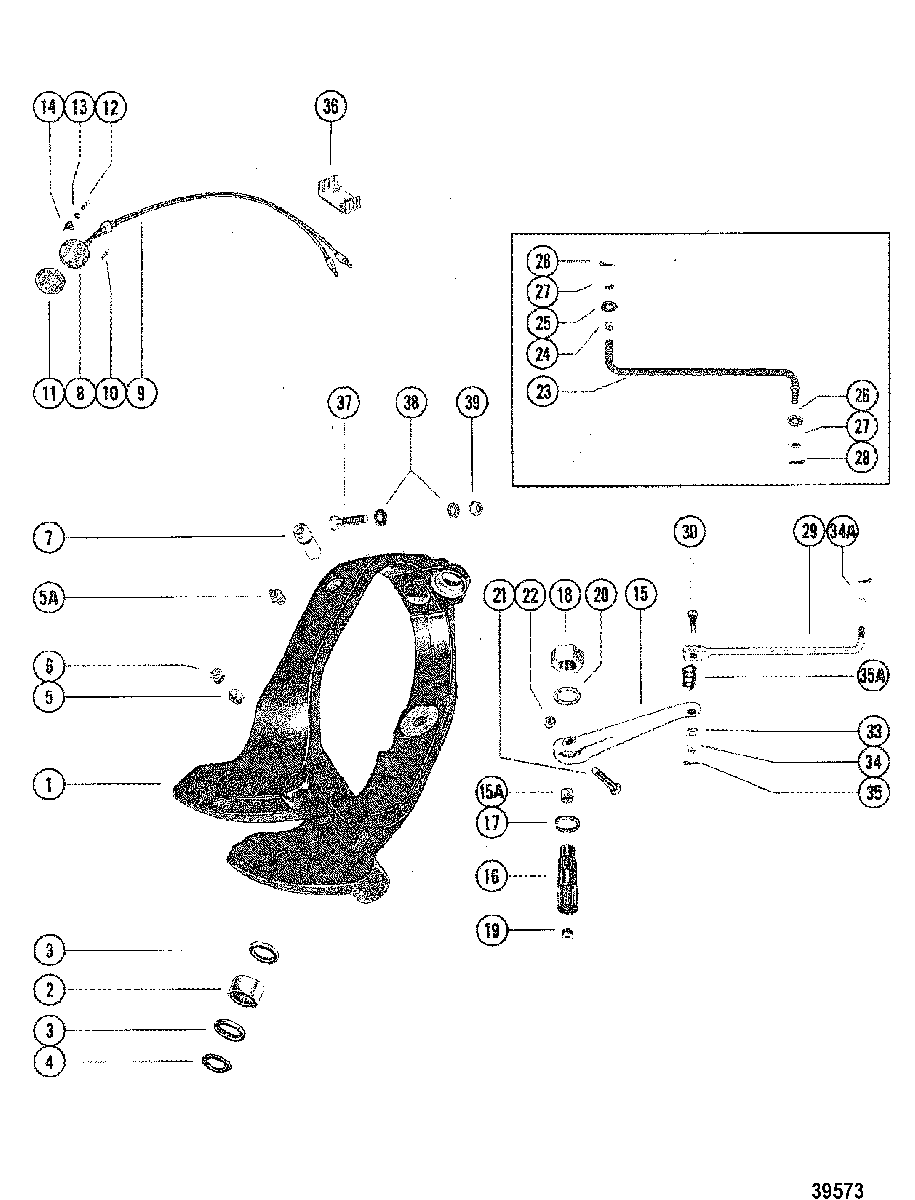

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - 485 1980-1982 4893835 & Up
-
№АртикулНазвание
-
188302A1 GIMBAL RING ASSEMBLY
(SPLINED LEVER)GIMBAL RING ASSEMBLY
(SPLINED LEVER) -
194993A7 GIMBAL RING ASSEMBLY
(SQUARE LEVER)GIMBAL RING ASSEMBLY
(SQUARE LEVER) -
231-32538 BEARING, ROLLER - GIMBAL RINGBEARING, ROLLER - GIMBAL RING
-
326-32541 SEAL, Oil, GIMBAL RINGSEAL, Oil, GIMBAL RING
-
423-39273 SPACER, GIMBAL RINGSPACER, GIMBAL RING
-
522-69059 FITTING, GREASE - GIMBAL RING (1/8-27)FITTING, GREASE - GIMBAL RING (1/8-27)
-
5A22-74036 FITTING, Grease, GIMBAL RING (1/4-28)FITTING, Grease, GIMBAL RING (1/4-28)
-
619-77633Q LUBRICAP, GIMBAL RING GREASE FITTINGLUBRICAP, GIMBAL RING GREASE FITTING
-
777123 PIN, Hinge, THREADED (WITH GREASE GROOVE)PIN, Hinge, THREADED (WITH GREASE GROOVE)
-
864947 SENDER, DUMMY
STARBOARDSENDER, DUMMY
STARBOARD -
8805320A03 SWITCH ASSEMBLY, TRIM LIMIT
PORTSWITCH ASSEMBLY, TRIM LIMIT
PORT -
984-19280 HARNESS ASSEMBLY, DUMMY SENDER
STARBOARDHARNESS ASSEMBLY, DUMMY SENDER
STARBOARD -
984-19292 HARNESS ASSEMBLY, TRIM LIMIT SWITCH
PORTHARNESS ASSEMBLY, TRIM LIMIT SWITCH
PORT -
1010-46942 SCREW, (#6-20 x .3125), HARNESS ATTACHING
STARBOARDSCREW, (#6-20 x .3125), HARNESS ATTACHING
STARBOARD -
1010-63400 SCREW, (#6-32 x .125), HARNESS ATTACHING
PORTSCREW, (#6-32 x .125), HARNESS ATTACHING
PORT -
1185-63990 INSULATOR, SWITCH AND SENDERINSULATOR, SWITCH AND SENDER
-
1210-37978 SCREW, (#10-32 x .750) Stainless Steel, AND SENDER TO GIMBAL RINGSCREW, (#10-32 x .750) Stainless Steel, AND SENDER TO GIMBAL RING
-
1313-26996 LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREWLOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW
-
1457008 RETAINER, SWITCH AND SENDER SCREWRETAINER, SWITCH AND SENDER SCREW
-
1588771A1 LEVER ASSEMBLY, Steering
IN-LINE ENGINES (SPLINED)LEVER ASSEMBLY, Steering
IN-LINE ENGINES (SPLINED) -
15A23-52698 SLEEVE, STEERING LEVER
IN-LINE ENGINES (SPLINED)SLEEVE, STEERING LEVER
IN-LINE ENGINES (SPLINED) -
1588771A1 LEVER, Steering
(IN-LINE ENGINES)(SQUARE)LEVER, Steering
(IN-LINE ENGINES)(SQUARE) -
1588433 LEVER, Steering
(V-8 ENGINES)(SPLINED)LEVER, Steering
(V-8 ENGINES)(SPLINED) -
1588433 LEVER, Steering
(V-8 ENGINES)(SQUARE)LEVER, Steering
(V-8 ENGINES)(SQUARE) -
1688302A1 SHAFT, UPPER SWIVEL
(SPLINED)SHAFT, UPPER SWIVEL
(SPLINED) -
1688302A2 SHAFT, UPPER SWIVEL
(SQUARE)SHAFT, UPPER SWIVEL
(SQUARE) -
1753-72413 RING, Retaining, UPPER SWIVEL SHAFT
USE WITH SPLINED UPPER SHAFTRING, Retaining, UPPER SWIVEL SHAFT
USE WITH SPLINED UPPER SHAFT -
1811-8M2014641 NUT, (.750-16), UPPER SWIVEL SHAFTNUT, (.750-16), UPPER SWIVEL SHAFT
-
1922-32561 PLUG, Pipe - Allen Head (.250-18), UPPER SWIVEL SHAFT
USE WITH SPLINED UPPER SHAFTPLUG, Pipe - Allen Head (.250-18), UPPER SWIVEL SHAFT
USE WITH SPLINED UPPER SHAFT -
2012-85344 WASHER, (.750 Inside Diameter), UPPER SWIVEL SHAFTWASHER, (.750 Inside Diameter), UPPER SWIVEL SHAFT
-
2012-32997 WASHER, UPPER SWIVEL SHAFT (.063)WASHER, UPPER SWIVEL SHAFT (.063)
-
2110-807204 SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFTSCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT
-
2211-8M2008293 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREWNUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
-
2368291A2 LINK ROD ASSEMBLY, Steering
(IN-LINE ENGINES)LINK ROD ASSEMBLY, Steering
(IN-LINE ENGINES) -
2423-52698 SLEEVE, STEERING LINK ROD
(IN-LINE ENGINES)SLEEVE, STEERING LINK ROD
(IN-LINE ENGINES) -
2512-20086 WASHER, (.390 x .620 x .060), STEERING LINK ROD
(IN-LINE ENGINES)WASHER, (.390 x .620 x .060), STEERING LINK ROD
(IN-LINE ENGINES) -
2612-46132 WASHER, STEERING LINK ROD (1/8" THICK)
(IN-LINE ENGINES)WASHER, STEERING LINK ROD (1/8" THICK)
(IN-LINE ENGINES) -
2711-55438 NUT, (.375-24), STEERING LINK ROD
(IN-LINE ENGINES)NUT, (.375-24), STEERING LINK ROD
(IN-LINE ENGINES) -
2818-45882 COTTER PIN, STEERING LINK ROD
(IN-LINE ENGINES)COTTER PIN, STEERING LINK ROD
(IN-LINE ENGINES) -
2978790A6 LINK ROD ASSEMBLY, Steering - V8 Engines
V-8 ENGINESLINK ROD ASSEMBLY, Steering - V8 Engines
V-8 ENGINES -
3010-87738A1 SCREW ASSEMBLY, LEVER TO LINK ROD
V-8 ENGINESSCREW ASSEMBLY, LEVER TO LINK ROD
V-8 ENGINES -
3312-20086 WASHER, (.390 x .620 x .060), STEERING LINK ROD
V-8 ENGINESWASHER, (.390 x .620 x .060), STEERING LINK ROD
V-8 ENGINES -
3411-82671013 NUT, (.375-24), LINK ROD SCREW
V-8 ENGINESNUT, (.375-24), LINK ROD SCREW
V-8 ENGINES -
34A11-55438 NUT, (.375-24), STEERING LINK ROD
V-8 ENGINESNUT, (.375-24), STEERING LINK ROD
V-8 ENGINES -
3518-45882 COTTER PIN, LINK ROD AND SCREW
V-8 ENGINESCOTTER PIN, LINK ROD AND SCREW
V-8 ENGINES -
35A24-87739 SPRING, LINK ROD SCREW
V-8 ENGINESSPRING, LINK ROD SCREW
V-8 ENGINES -
3679146 RETAINER, CONNECTOR, TRIM LIMITS LEADSRETAINER, CONNECTOR, TRIM LIMITS LEADS
-
3710-88432 SCREW, (.375-24 x 4.00), GIMBAL RING
USE WITH SQUARE UPPER SHAFTSCREW, (.375-24 x 4.00), GIMBAL RING
USE WITH SQUARE UPPER SHAFT -
3812-34931 WASHER, (.406 x .734 x .063) Stainless Steel, GIMBAL RING SCREW
USE WITH SQUARE UPPER SHAFTWASHER, (.406 x .734 x .063) Stainless Steel, GIMBAL RING SCREW
USE WITH SQUARE UPPER SHAFT -
3911-82671013 NUT, (.375-24), GIMBAL RING SCREW
USE WITH SQUARE UPPER SHAFTNUT, (.375-24), GIMBAL RING SCREW
USE WITH SQUARE UPPER SHAFT -
-805320A03 TRIM SENDER KIT
(SINGLE STATION)TRIM SENDER KIT
(SINGLE STATION) -
-805130A6 TRIM SENDER KIT
(DUAL STATION)TRIM SENDER KIT
(DUAL STATION)
