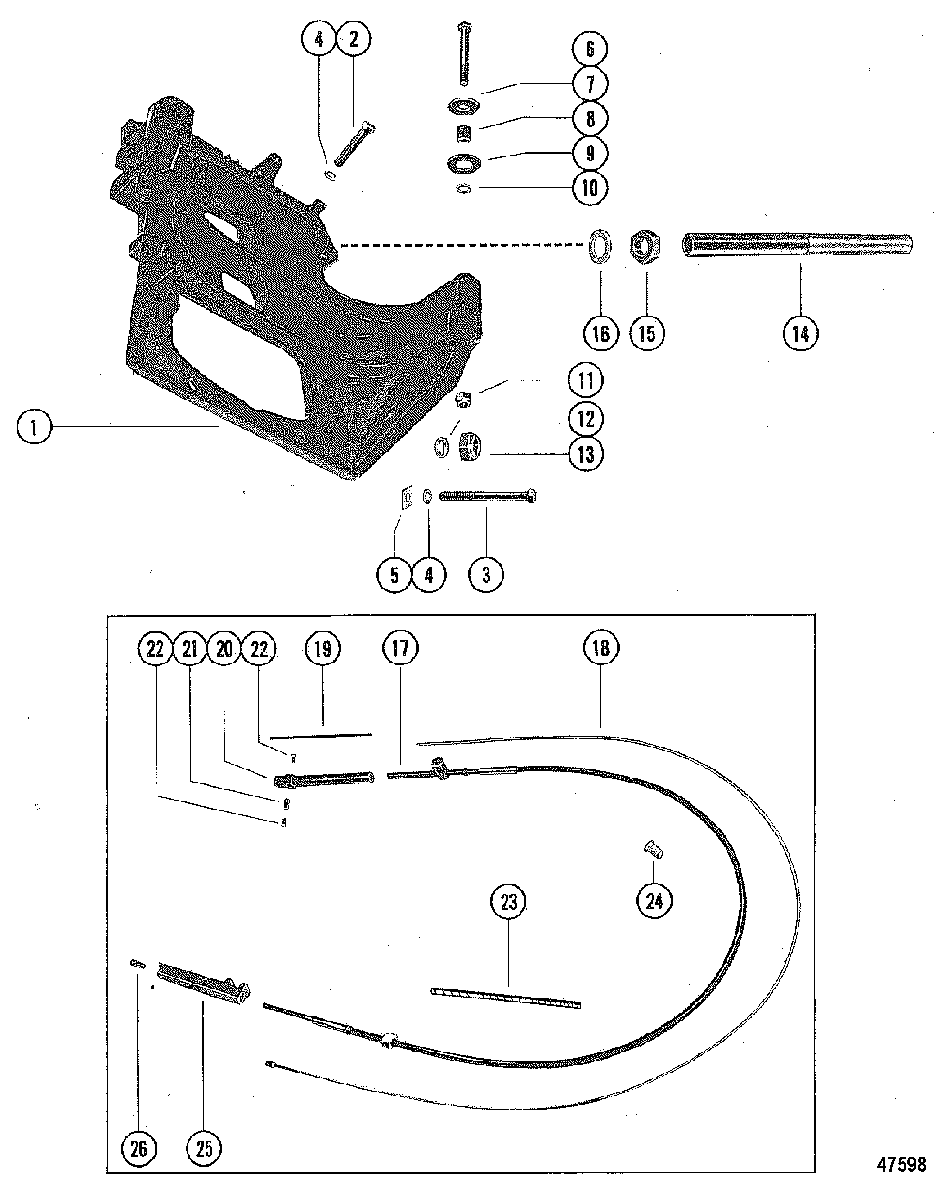

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - 470 1976-1977 4208730 THRU 4893934

  • №
    Артикул
    Название
  • 1
    65550A2 PLATE ASSEMBLY, TRANSOM
    PLATE ASSEMBLY, TRANSOM
  • 2
    37629 SCREW, TRANSOM PLATE PLATE TO GIMBAL HOUSING (2")
    SCREW, TRANSOM PLATE PLATE TO GIMBAL HOUSING (2")
  • 3
    10-37268 SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING (4 1/4")
    SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING (4 1/4")
  • 4
    13-32993 LOCKWASHER, TRANSOM PLATE SCREW
    LOCKWASHER, TRANSOM PLATE SCREW
  • 5
    12-37271 WASHER, SQUARE - TRANSOM PLATE SCREW
    WASHER, SQUARE - TRANSOM PLATE SCREW
  • 6
    10-97934 SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING (4 3/4")
    SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING (4 3/4")
  • 7
    38421 WASHER, TRANSOM PLATE SCREW
    WASHER, TRANSOM PLATE SCREW
  • 8
    23-99299 SPACER, TRANSOM PLATE SCREW
    SPACER, TRANSOM PLATE SCREW
  • 9
    12-32834 WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW
    WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW
  • 10
    13-33734 LOCKWASHER, TRANSOM PLATE SCREW
    LOCKWASHER, TRANSOM PLATE SCREW
  • 11
    11-82671317 NUT, (.500-20), TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
    NUT, (.500-20), TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
  • 12
    12-21900 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
  • 13
    11-34087 NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
  • 14
    71565A2 TUBE, STEERING CABLE GUIDE (7/8" O.D.)
    TUBE, STEERING CABLE GUIDE (7/8" O.D.)
  • 15
    11-8M0041651 NUT, (.875-14), JAM - STEERING CABLE GUIDE TUBE
    NUT, (.875-14), JAM - STEERING CABLE GUIDE TUBE
  • 16
    12-37985 WASHER, STEERING CABLE GUIDE TUBE
    WASHER, STEERING CABLE GUIDE TUBE
  • 17
    865436A02 CABLE ASSEMBLY, SHIFT ACTUATING
    CABLE ASSEMBLY, SHIFT ACTUATING
  • 18
    865436A02 CORE WIRE, INNER SHIFT CABLE
    CORE WIRE, INNER SHIFT CABLE
  • 19
    32-38377 TUBE, SHIFT ACTUATING CABLE
    TUBE, SHIFT ACTUATING CABLE
  • 20
    43433 GUIDE, SHIFT SCTUATING CABLE END
    GUIDE, SHIFT SCTUATING CABLE END
  • 21
    20007 ANCHOR, SHIFT ACTUATING CABLE END GUIDE
    ANCHOR, SHIFT ACTUATING CABLE END GUIDE
  • 22
    10-20518 SET SCREW, (#8-32), SET - ANCHOR TO ACTUATING CABLE END GUIDE (1/4")
    SET SCREW, (#8-32), SET - ANCHOR TO ACTUATING CABLE END GUIDE (1/4")
  • 23
    38473 WRAPPING, Spiral, SHIFT ACTUATING CABLE
    WRAPPING, Spiral, SHIFT ACTUATING CABLE
  • 24
    14705 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
  • 25
    865436A02 SLIDE, SHIFT ACTUATING CABLE
    SLIDE, SHIFT ACTUATING CABLE
  • 26
    10-31700 SCREW, (.250-28 x .750), SET - SHIFT CABLE TO SLIDE (3/4")
    SCREW, (.250-28 x .750), SET - SHIFT CABLE TO SLIDE (3/4")
