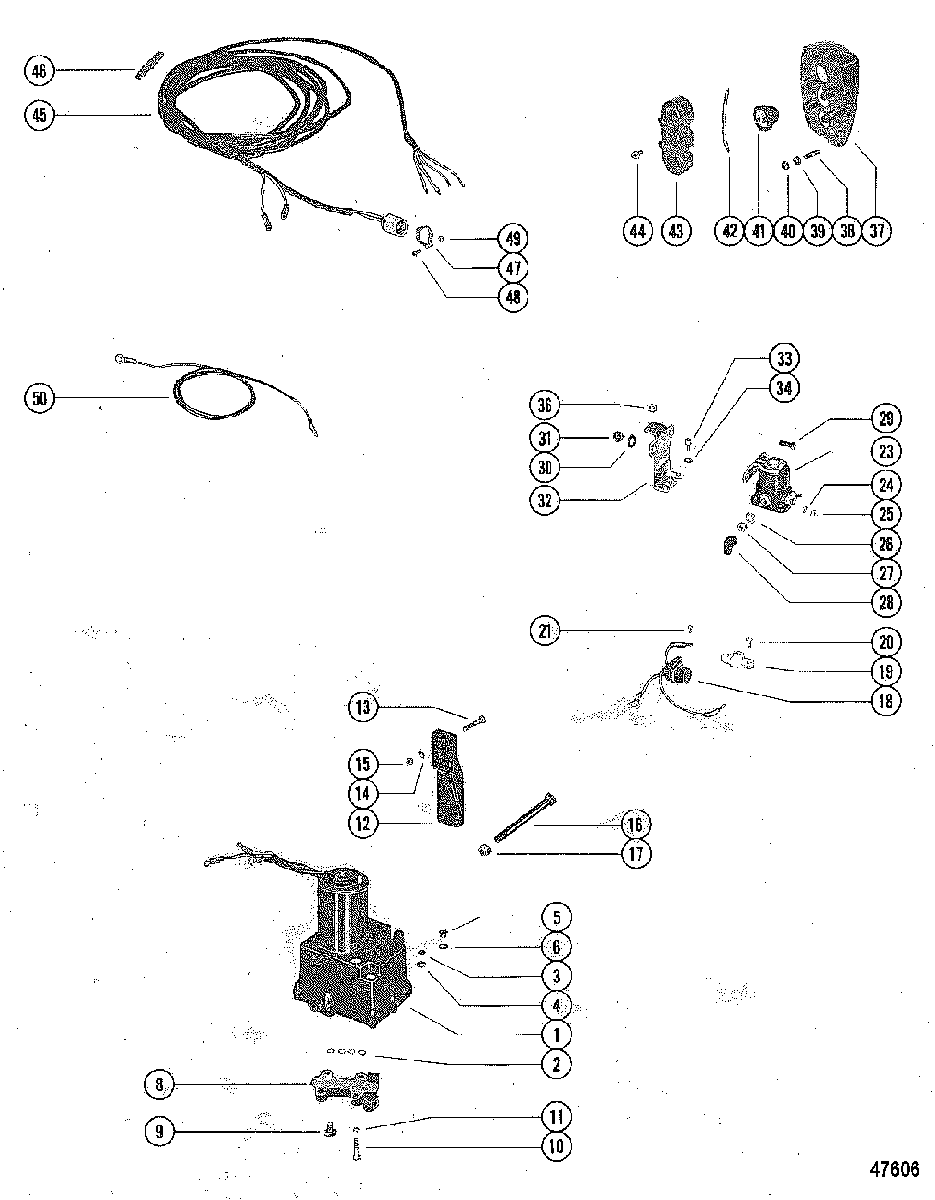

HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL для Mercruiser - 470 1976-1977 4208730 THRU 4893934

  • №
    Артикул
    Название
  • 1
    93247A7 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 2
    25-48171 O-RING, HYDRAULIC PUMP TO CONTROL VALVE
    O-RING, HYDRAULIC PUMP TO CONTROL VALVE
  • 3
    10-22028 SCREW, VENT - HYDRAULIC PUMP (1/2")
    SCREW, VENT - HYDRAULIC PUMP (1/2")
  • 4
    13-46917 LOCKWASHER, SEALING - VENT SCREW
    LOCKWASHER, SEALING - VENT SCREW
  • 5
    10-79953Q04 SCREW, (.375-16), FILLER - HYDRAULIC PUMP (1/4")
    SCREW, (.375-16), FILLER - HYDRAULIC PUMP (1/4")
  • 6
    12-191833 WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW
    WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW
  • 8
    48077T3 CONTROL VALVE ASSEMBLY
    CONTROL VALVE ASSEMBLY
  • -
    25-48171 O-RING, HYDRAULIC PUMP TO CONTROL VALVE
    O-RING, HYDRAULIC PUMP TO CONTROL VALVE
  • 9
    22-38609 PLUG, CONTROL VALVE
    PLUG, CONTROL VALVE
  • 10
    10-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
    SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
  • 11
    13-26992 LOCKWASHER, (.250) Stainless Steel, CONTROL VALVE SCREW
    LOCKWASHER, (.250) Stainless Steel, CONTROL VALVE SCREW
  • 12
    94225A1 BRACKET ASSEMBLY, HYDRAULIC PUMP MOUNTING
    BRACKET ASSEMBLY, HYDRAULIC PUMP MOUNTING
  • 13
    10-26066 SCREW, (.312-24 x 1.75), HYDRAULIC PUMP TO BRACKET (1 1/4")
    SCREW, (.312-24 x 1.75), HYDRAULIC PUMP TO BRACKET (1 1/4")
  • 14
    12-20546 WASHER, (.330 x .500 x .060), HYDRAULIC PUMP SCREW
    WASHER, (.330 x .500 x .060), HYDRAULIC PUMP SCREW
  • 15
    11-82670911 NUT, (.312-24) Stainless Steel, HYDRAULIC PUMP SCREW
    NUT, (.312-24) Stainless Steel, HYDRAULIC PUMP SCREW
  • 16
    10-29877 SCREW, MOUNTING BRACKET TO TRANSOM PLATE (3 1/4")
    SCREW, MOUNTING BRACKET TO TRANSOM PLATE (3 1/4")
  • 16
    12-46765 WASHER, (.390 x 1.50 x .120), MOUNTING BRACKET TO TRANSOM PLATE (4 1/4")
    WASHER, (.390 x 1.50 x .120), MOUNTING BRACKET TO TRANSOM PLATE (4 1/4")
  • 17
    11-82670911 NUT, (.312-24) Stainless Steel, MOUNTING BRACKET SCREW
    NUT, (.312-24) Stainless Steel, MOUNTING BRACKET SCREW
  • 18
    84-74023A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 19
    45559 TERMINAL BLOCK, HYDRAULIC PUMP
    TERMINAL BLOCK, HYDRAULIC PUMP
  • 20
    10-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
    SCREW, (#10-16 x .500), TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
  • 21
    10-62568 SCREW, (#10-16 x .375), HARNESS LEADS TO TERMINAL BLOCK (3/8")
    SCREW, (#10-16 x .375), HARNESS LEADS TO TERMINAL BLOCK (3/8")
  • 23
    89-853654A1 SOLENOID, Starter
    SOLENOID, Starter
  • 24
    13-26996 LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL (#10)
  • 25
    11-68219 NUT, (#10), STARTER SOLENOID TERMINAL (#10)
    NUT, (#10), STARTER SOLENOID TERMINAL (#10)
  • 26
    13-26993 LOCKWASHER, (.312), STARTER SOLENOID TERMINAL (5/16"))
    LOCKWASHER, (.312), STARTER SOLENOID TERMINAL (5/16"))
  • 27
    11-68292 NUT, (.312-18), STARTER SOLENOID TERMINAL (5/16")
    NUT, (.312-18), STARTER SOLENOID TERMINAL (5/16")
  • 28
    46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 29
    10-98256 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
  • 31
    11-21825 NUT, (.250-28), STARTER SOLENOID SCREW
    NUT, (.250-28), STARTER SOLENOID SCREW
  • 32
    74407T BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 33
    10-21140 SCREW, (.250-28 x .50), MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
    SCREW, (.250-28 x .50), MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
  • 34
    13-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
    LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
  • 36
    11-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP
    NUT, MOUNTING BRACKET TO HYDRAULIC PUMP
  • --
    55642A13 CONTROL PANEL ASSEMBLY, COMPLETE
    CONTROL PANEL ASSEMBLY, COMPLETE
  • 37
    55642A17 PANEL, CONTROL
    PANEL, CONTROL
  • 38
    16-55422 STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2")
    STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2")
  • 39
    12-24676 WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
    WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
  • 40
    11-27164 NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
    NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
  • 41
    55738A1 SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL
    SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL
  • 42
    48078 WIRE, Jumper, PUSH BUTTON SWITCH (RED - 3 1/4")
    WIRE, Jumper, PUSH BUTTON SWITCH (RED - 3 1/4")
  • 42
    53107 WIRE, Jumper (3.00 Inches), PUSH BUTTON SWITCH (PURPLE - 3")
    WIRE, Jumper (3.00 Inches), PUSH BUTTON SWITCH (PURPLE - 3")
  • 43
    55641 RETAINER, PUSH BUTTON SWITCH
    RETAINER, PUSH BUTTON SWITCH
  • 44
    10-62568 SCREW, (#10-16 x .380), SWITCH RETAINER TO CONTROL PANEL (1/2")
    SCREW, (#10-16 x .380), SWITCH RETAINER TO CONTROL PANEL (1/2")
  • 45
    84-87394A20 HARNESS ASSEMBLY, CONTROL PANEL
    HARNESS ASSEMBLY, CONTROL PANEL
  • 46
    33865 BINDER, NYLON - CONTROL PANEL HARNESS
    BINDER, NYLON - CONTROL PANEL HARNESS
  • 47
    95814 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 48
    10-29227 SCREW, (#8-32 x 0.50), HARNESS ATTACHING CLAMP (1/2")
    SCREW, (#8-32 x 0.50), HARNESS ATTACHING CLAMP (1/2")
  • 49
    11-34388 NUT, HARNESS CLAMP SCREW
    NUT, HARNESS CLAMP SCREW
  • 50
    45551 LEAD, Battery (POSTIVE)
    LEAD, Battery (POSTIVE)
  • 50
    45552 LEAD, Battery (NEGATIVE)
    LEAD, Battery (NEGATIVE)
