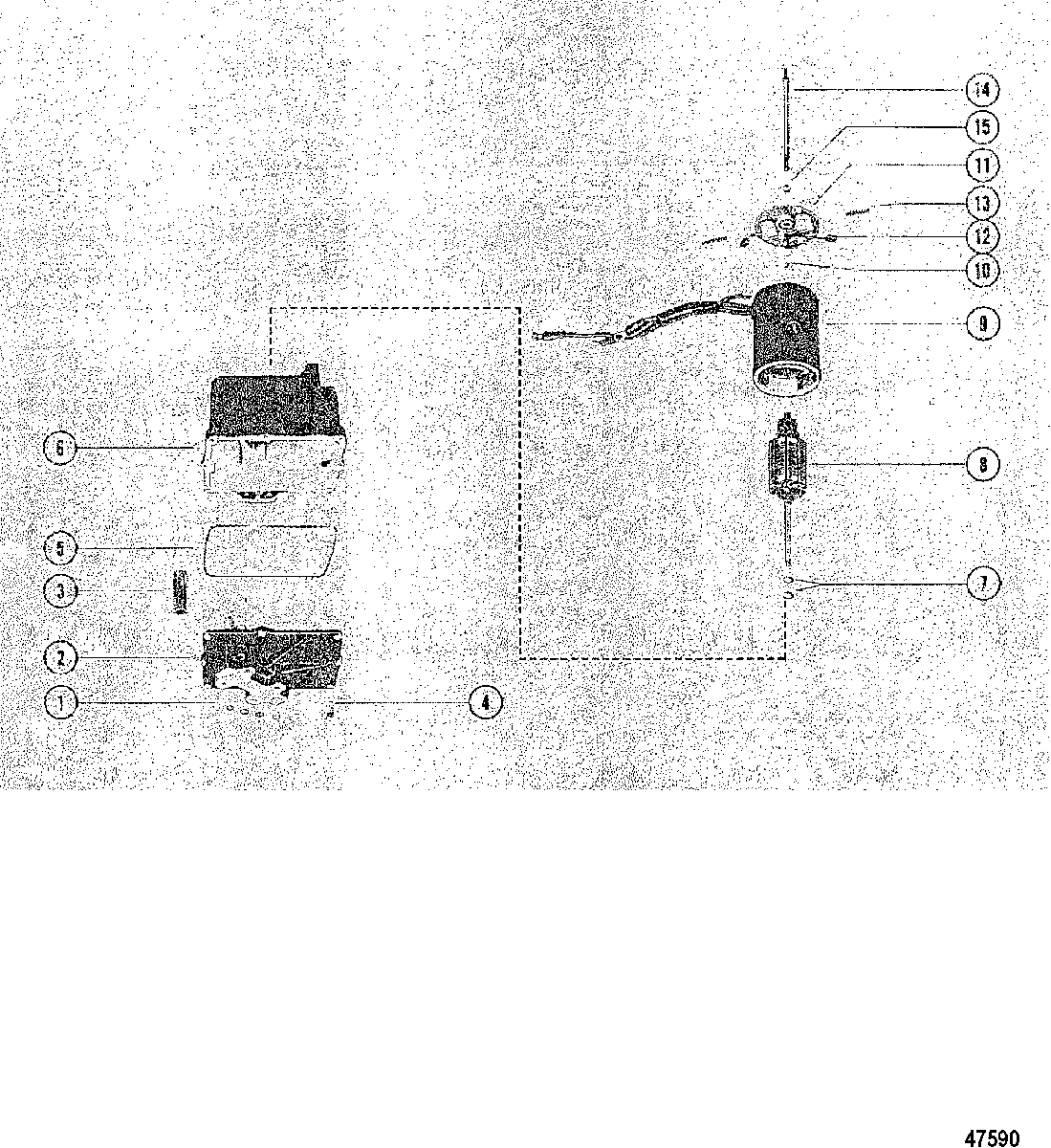

HYDRAULIC PUMP ASSEMBLY, COMPLETE для Mercruiser - 280-TRS 1975-1976 4203750 THRU 4895399

  • №
    Артикул
    Название
  • -
    93247A7 PUMP ASSEMBLY, Hydraulic, COMPLETE
    PUMP ASSEMBLY, Hydraulic, COMPLETE
  • 1
    25-48171 O-RING, HYDRAULIC PUMP
    O-RING, HYDRAULIC PUMP
  • 2
    392-7734 VALVE BODY AND GEAR ASSEMBLY
    VALVE BODY AND GEAR ASSEMBLY
  • 3
    392-2618 CAN, VALVE BODY
    CAN, VALVE BODY
  • 4
    10-20411 SCREW, (.190-24 x .62), VALVE BODY TO RESERVOIR (5/8")
    SCREW, (.190-24 x .62), VALVE BODY TO RESERVOIR (5/8")
  • 5
    392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEAR
    SEAL, RESERVOIR TO VALVE BODY AND GEAR
  • 6
    392-2939 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • 7
    392-2623 WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 8
    392-2943 ARMATURE, FIELD AND FRAME
    ARMATURE, FIELD AND FRAME
  • 9
    392-2942 FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 10
    392-2944 BALL, COMMUTATOR END PLATE
    BALL, COMMUTATOR END PLATE
  • 11
    392-2940 PLATE ASSEMBLY, COMMUTATOR END
    PLATE ASSEMBLY, COMMUTATOR END
  • 12
    392-8989 BRUSH SET, COMMUTATOR END PLATE
    BRUSH SET, COMMUTATOR END PLATE
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel, THRU BOLT
    LOCKWASHER, (#10) Stainless Steel, THRU BOLT
