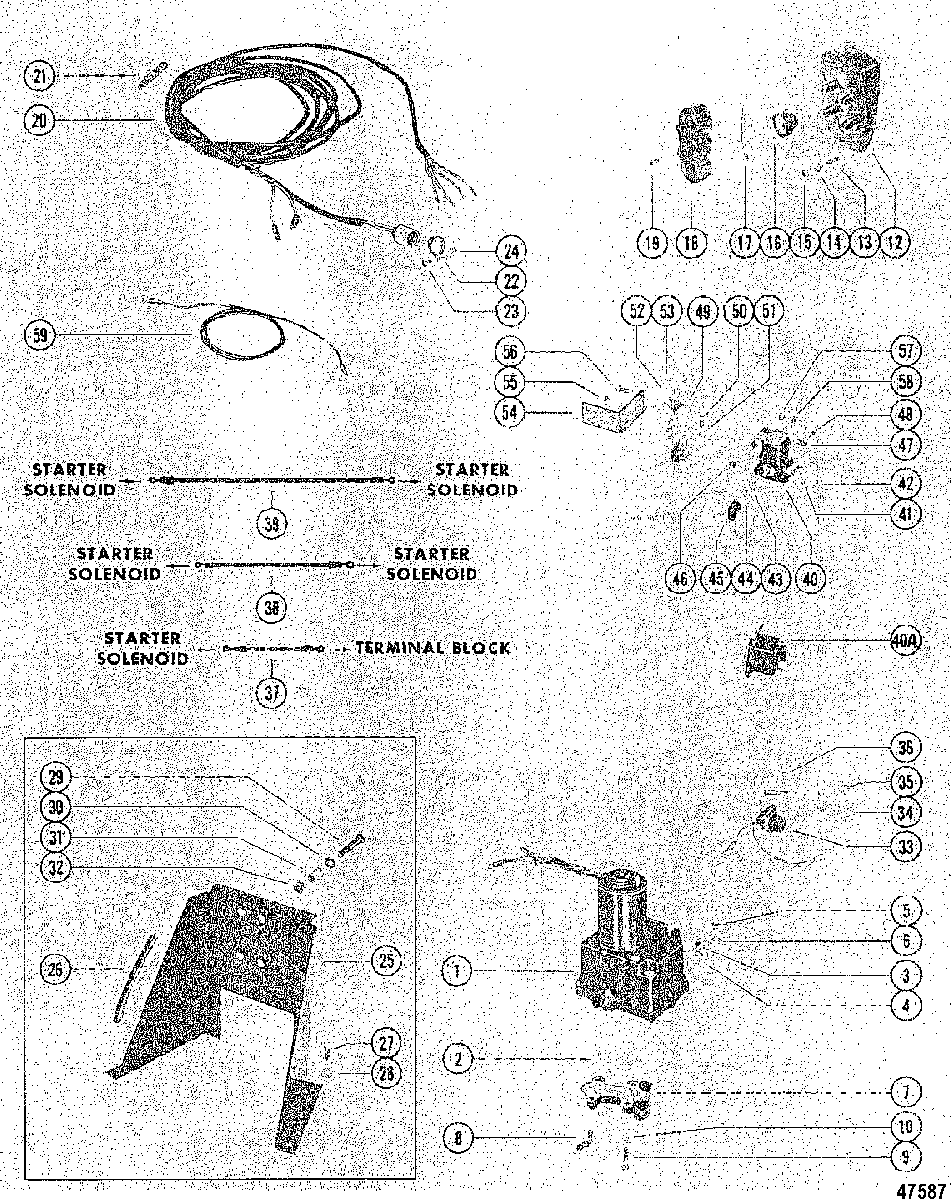

HYDRAULIC PUMP AND TRIM CONTROL PANEL для Mercruiser - 280-TRS 1975-1976 4203750 THRU 4895399

  • №
    Артикул
    Название
  • 1
    93247A7 PUMP ASSEMBLY, Hydraulic (SEE PAGE 15 FOR BREAKDOWN)
    PUMP ASSEMBLY, Hydraulic (SEE PAGE 15 FOR BREAKDOWN)
  • 2
    25-48171 O-RING, HYDRAULIC PUMP TO CONTROL VALVE
    O-RING, HYDRAULIC PUMP TO CONTROL VALVE
  • 3
    10-22028 SCREW, VENT - HYDRAULIC PUMP
    SCREW, VENT - HYDRAULIC PUMP
  • 4
    13-46917 LOCKWASHER, SEALING - VENT SCREW
    LOCKWASHER, SEALING - VENT SCREW
  • 5
    10-79953Q04 SCREW, (.375-16), FILTER - HYDRAULIC PUMP
    SCREW, (.375-16), FILTER - HYDRAULIC PUMP
  • 6
    12-191833 WASHER, SEALING - HYDRARLIC PUMP FILLER SCREW
    WASHER, SEALING - HYDRARLIC PUMP FILLER SCREW
  • 7
    48077T3 CONTROL VALVE ASSEMBLY
    CONTROL VALVE ASSEMBLY
  • -
    25-48171 O-RING, HYDRAULIC PUMP TO CONTROL VALVE (SAME AS REFERENC)
    O-RING, HYDRAULIC PUMP TO CONTROL VALVE (SAME AS REFERENC)
  • 8
    22-52666 ELBOW, CONTROL VALVE
    ELBOW, CONTROL VALVE
  • 9
    10-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
    SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
  • 10
    13-26992 LOCKWASHER, (.250) Stainless Steel, CONTROL VALVE SCREW
    LOCKWASHER, (.250) Stainless Steel, CONTROL VALVE SCREW
  • --
    55642A13 CONTROL PANEL ASSEMBLY, COMPLETE
    CONTROL PANEL ASSEMBLY, COMPLETE
  • 12
    55642A17 PANEL, CONTROL
    PANEL, CONTROL
  • 13
    16-55422 STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2")
    STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2")
  • 14
    12-24676 WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
    WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
  • 15
    11-27164 NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
    NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
  • 16
    55738A1 SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL
    SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL
  • 17
    48078 WIRE, Jumper, PUSH BUTTON SWITCH (RED - 3 1/4")
    WIRE, Jumper, PUSH BUTTON SWITCH (RED - 3 1/4")
  • 17
    53107 WIRE, Jumper (3.00 Inches), PUSH BUTTON SWITCH (PURPLE - 3")
    WIRE, Jumper (3.00 Inches), PUSH BUTTON SWITCH (PURPLE - 3")
  • 18
    55641 RETAINER, PUSH BUTTON SWITCH
    RETAINER, PUSH BUTTON SWITCH
  • 19
    10-62568 SCREW, (#10-16 x .375), SWITCH RETAINER TO CONTROL PANEL (1/2")
    SCREW, (#10-16 x .375), SWITCH RETAINER TO CONTROL PANEL (1/2")
  • 20
    84-87394A20 HARNESS ASSEMBLY, CONTROL PANEL
    HARNESS ASSEMBLY, CONTROL PANEL
  • 21
    33865 BINDER, NYLON - CONTROL PANEL HARNESS
    BINDER, NYLON - CONTROL PANEL HARNESS
  • 22
    95814 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 23
    10-29227 SCREW, (#8-32 x 0.50), HARNESS ATTACHING CLAMP (1/2")
    SCREW, (#8-32 x 0.50), HARNESS ATTACHING CLAMP (1/2")
  • 24
    11-34388 NUT, HARNESS ATTACHING CLAMP SCREW
    NUT, HARNESS ATTACHING CLAMP SCREW
  • 25
    862548A1 BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP (FLOOR MOUNTED)
    BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP (FLOOR MOUNTED)
  • 26
    58491 CHANNEL, Rubber (4.00 Inches), RUBBER - PUMP MOUNTING BRACKET
    CHANNEL, Rubber (4.00 Inches), RUBBER - PUMP MOUNTING BRACKET
  • 27
    10-59784 SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1")
    SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1")
  • 28
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREW
  • 29
    10-35386 SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET (1")
    SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET (1")
  • 30
    13-39107 LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW
    LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW
  • 31
    23-90523 BUSHING, MOUNTING BRACKET
    BUSHING, MOUNTING BRACKET
  • 32
    11-21908 NUT, (.312-18) Cad Plated, HYDRAULIC PUMP SCREW
    NUT, (.312-18) Cad Plated, HYDRAULIC PUMP SCREW
  • 33
    45325A1 HARNESS ASSEMBLY
    SN# 4644909 & Below
    HARNESS ASSEMBLY
    SN# 4644909 & Below
  • 33
    84-74023A1 HARNESS ASSEMBLY
    SN# 4644910 & Up
    HARNESS ASSEMBLY
    SN# 4644910 & Up
  • 34
    45559 TERMINAL BLOCK, HYDRAULIC PUMP
    SN# 4644909 & Below
    TERMINAL BLOCK, HYDRAULIC PUMP
    SN# 4644909 & Below
  • 35
    10-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
    SN# 4644909 & Below
    SCREW, (#10-16 x .500), TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
    SN# 4644909 & Below
  • 36
    10-62568 SCREW, (#10-16 x .375), HARNESS LEADS TO TERMINAL BLOCK (3/8")
    SN# 4644909 & Below
    SCREW, (#10-16 x .375), HARNESS LEADS TO TERMINAL BLOCK (3/8")
    SN# 4644909 & Below
  • 37
    55990 WIRE, Jumper, SOLENOID TO TERMINAL BLOCK (GREEN - 4")
    SN# 4644909 & Below
    WIRE, Jumper, SOLENOID TO TERMINAL BLOCK (GREEN - 4")
    SN# 4644909 & Below
  • 38
    84-79139A2 LEAD, Battery, SOLENOID TO TERMINAL BLOCK (RED - 7")
    LEAD, Battery, SOLENOID TO TERMINAL BLOCK (RED - 7")
  • 39
    55992 WIRE, Jumper, SOLENOID TO SOLENOID (BLACK - 11 1/2") 1/2")
    WIRE, Jumper, SOLENOID TO SOLENOID (BLACK - 11 1/2") 1/2")
  • 40
    25661T1 SOLENOID (SERIAL AND BELOW )
    SN# 4644909 & Below
    SOLENOID (SERIAL AND BELOW )
    SN# 4644909 & Below
  • 40A
    89-853654A1 SOLENOID, Starter (SERIAL AND ABOVE)
    SN# 4644910 & Up
    SOLENOID, Starter (SERIAL AND ABOVE)
    SN# 4644910 & Up
  • 41
    13-26996 LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TRMINAL (10)
    LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TRMINAL (10)
  • 42
    11-68219 NUT, (#10), STARTER SOLENOID TERMINAL (10)
    NUT, (#10), STARTER SOLENOID TERMINAL (10)
  • 43
    13-26993 LOCKWASHER, (.312), STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, (.312), STARTER SOLENOID TERMINAL (5/16")
  • 44
    11-22053 NUT, (5/16-24), STARTER SOLENOID TERMINAL (5/16"-24)
    SN# 4644909 & Below
    NUT, (5/16-24), STARTER SOLENOID TERMINAL (5/16"-24)
    SN# 4644909 & Below
  • 44
    11-68292 NUT, (.312-18), STARTER SOLENOID TERMINAL (5/16"-18)
    SN# 4644910 & Up
    NUT, (.312-18), STARTER SOLENOID TERMINAL (5/16"-18)
    SN# 4644910 & Up
  • 45
    46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 46
    49342 BUMPER, STARTER SOLENOID TO MOUNTING BRACKET
    BUMPER, STARTER SOLENOID TO MOUNTING BRACKET
  • 47
    25661T1 SOLENOID, STARTER SOLENOID TERMINAL (5/16")
    SOLENOID, STARTER SOLENOID TERMINAL (5/16")
  • 48
    10-62568 SCREW, (#10-16 x .375), HYDRAULIC PUMP LEAD TO BRACKET (3/8")
    SCREW, (#10-16 x .375), HYDRAULIC PUMP LEAD TO BRACKET (3/8")
  • 49
    74407T BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 50
    10-21140 SCREW, (.250-28 x .50), MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
    SCREW, (.250-28 x .50), MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
  • 51
    13-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
    LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
  • 52
    13-27660 LOCKWASHER, HYDRAULIC PUMP THRU BOLT
    LOCKWASHER, HYDRAULIC PUMP THRU BOLT
  • 53
    11-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
    NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
  • 54
    74406 BRACKET, STARTER SOLENOID MOUNTING
    BRACKET, STARTER SOLENOID MOUNTING
  • 55
    269011 BUMPER, HYDRARLIC PUMP TO MOUNTING BRACKET
    BUMPER, HYDRARLIC PUMP TO MOUNTING BRACKET
  • 56
    10-34290 SCREW, (.250-20 x .625), STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, (.250-20 x .625), STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 56
    10-69028 SCREW, (.250-28 x .750), STARTER SOLENOID TO MOUNTING BRACKET (3/4")
    SCREW, (.250-28 x .750), STARTER SOLENOID TO MOUNTING BRACKET (3/4")
  • 57
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
  • 58
    11-21825 NUT, (.250-28), STARTER SOLENOID SCREW
    NUT, (.250-28), STARTER SOLENOID SCREW
  • 59
    84-79138A1 LEAD, Battery (NEGATIVE)
    LEAD, Battery (NEGATIVE)
  • 59
    84-79139A9 LEAD, Battery (POSITIVE)
    LEAD, Battery (POSITIVE)
