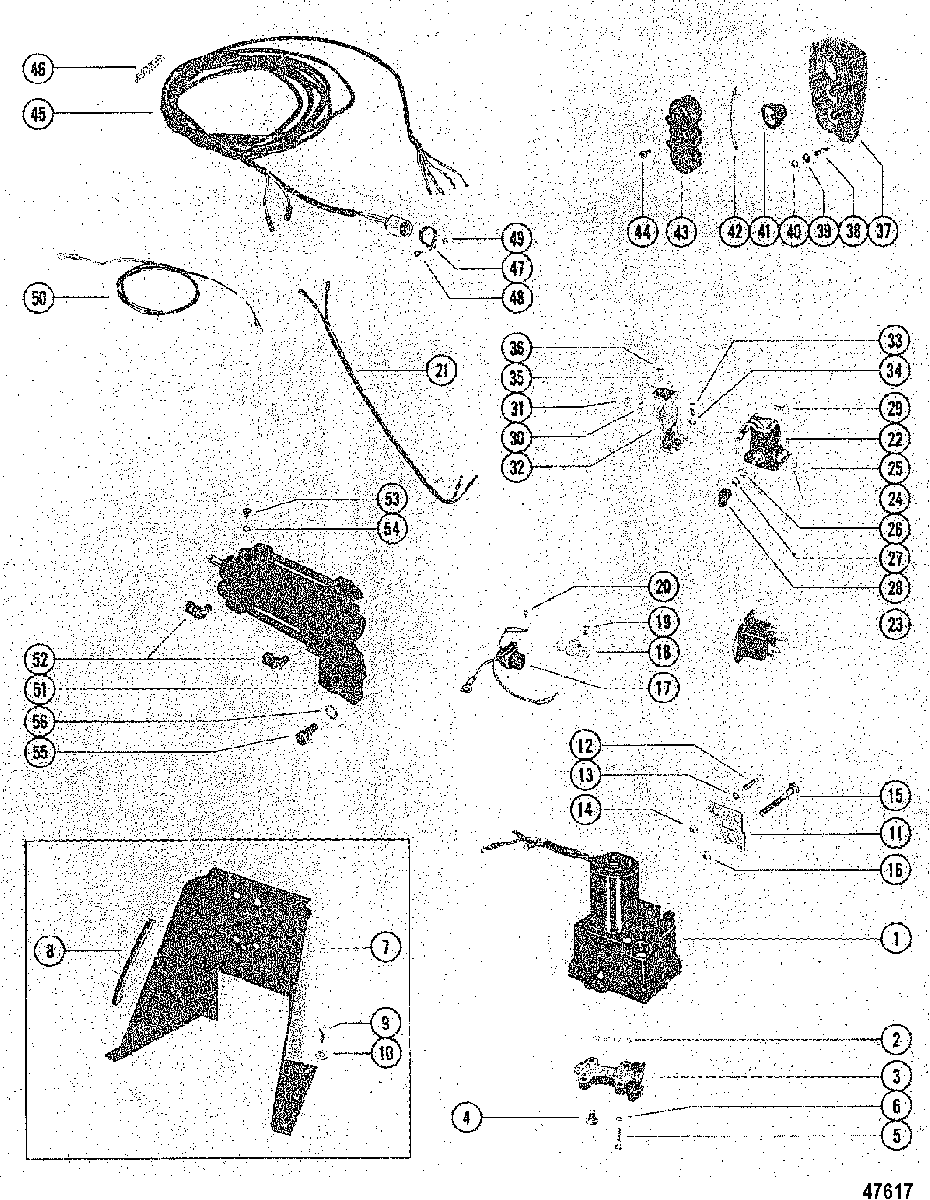

HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL для Mercruiser - 233 1975-1977 4200500 & Up

  • №
    Артикул
    Название
  • 1
    93247A7 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 2
    25-48171 O-RING, HYDRAULIC PUMP TO CONTROL VALVE
    O-RING, HYDRAULIC PUMP TO CONTROL VALVE
  • 3
    48077T3 CONTROL VALVE ASSEMBLY
    CONTROL VALVE ASSEMBLY
  • -
    25-48171 O-RING, HYDRAULIC PUMP TO CONTROL VALVE (SEE REFERENCE #2)
    O-RING, HYDRAULIC PUMP TO CONTROL VALVE (SEE REFERENCE #2)
  • 4
    22-38609 PLUG, CONTROL VALVE
    PLUG, CONTROL VALVE
  • 5
    10-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
    SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel, CONTROL VALVE SCREW
    LOCKWASHER, (.250) Stainless Steel, CONTROL VALVE SCREW
  • 7
    862548A1 BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP (FLOOR MOUNTING)
    BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP (FLOOR MOUNTING)
  • 8
    58491 CHANNEL, Rubber (4.00 Inches), RUBBER - PUMP MOUNTING BRACKET
    CHANNEL, Rubber (4.00 Inches), RUBBER - PUMP MOUNTING BRACKET
  • 9
    10-59784 SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1")
    SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1")
  • 10
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET
    WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET
  • 11
    45377T BRACKET, MOUNTING - HYDRAULIC PUMP (TRANSOM MOUNTING)
    BRACKET, MOUNTING - HYDRAULIC PUMP (TRANSOM MOUNTING)
  • 12
    10-35386 SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET (1")
    SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET (1")
  • 13
    13-39107 LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW
    LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW
  • 14
    11-21908 NUT, (.312-18) Cad Plated, HYDRAULIC PUMP SCREW
    NUT, (.312-18) Cad Plated, HYDRAULIC PUMP SCREW
  • 15
    10-68298 BOLT, PUMP MOUNTING BRACKET TO TRANSOM (3 1/4")
    BOLT, PUMP MOUNTING BRACKET TO TRANSOM (3 1/4")
  • 16
    11-35304 NUT, PUMP MOUNTING BRACKET SCREW
    NUT, PUMP MOUNTING BRACKET SCREW
  • 17
    45325A1 HARNESS ASSEMBLY (GREEN LEAD 3" LONG)
    HARNESS ASSEMBLY (GREEN LEAD 3" LONG)
  • 17
    84-74023A1 HARNESS ASSEMBLY (GREEN LEAD 5 1/2" LONG)
    HARNESS ASSEMBLY (GREEN LEAD 5 1/2" LONG)
  • 18
    45559 TERMINAL BLOCK, HYDRAULIC PUMP
    TERMINAL BLOCK, HYDRAULIC PUMP
  • 19
    10-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
    SCREW, (#10-16 x .500), TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
  • 20
    10-62568 SCREW, (#10-16 x .375), HARNESS LEADS TO TERMINAL BLOCK (3/8")
    SCREW, (#10-16 x .375), HARNESS LEADS TO TERMINAL BLOCK (3/8")
  • 21
    84-93542A1 HARNESS ASSEMBLY, HYDRAULIC PUMP
    HARNESS ASSEMBLY, HYDRAULIC PUMP
  • 22
    25661T1 SOLENOID
    - SEE PHOTO FOR CORRECT SOLENOID REPLACEMENT
    SOLENOID
    - SEE PHOTO FOR CORRECT SOLENOID REPLACEMENT
  • 23
    89-853654A1 SOLENOID, Starter
    - SEE PHOTO FOR CORRECT SOLENOID REPLACEMENT
    SOLENOID, Starter
    - SEE PHOTO FOR CORRECT SOLENOID REPLACEMENT
  • 24
    13-26996 LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL (#10)
  • 25
    11-68219 NUT, (#10), STARTER SOLENOID TERMINAL (#10)
    NUT, (#10), STARTER SOLENOID TERMINAL (#10)
  • 26
    13-26993 LOCKWASHER, (.312), STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, (.312), STARTER SOLENOID TERMINAL (5/16")
  • 27
    11-22053 NUT, (5/16-24), STARTER SOLENOID TERMINAL (5/16-24")
    NUT, (5/16-24), STARTER SOLENOID TERMINAL (5/16-24")
  • 27
    11-68292 NUT, (.312-18), STARTER SOLENOID TERMINAL (5/16"-18)
    NUT, (.312-18), STARTER SOLENOID TERMINAL (5/16"-18)
  • 28
    46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 29
    10-34290 SCREW, (.250-20 x .625), STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, (.250-20 x .625), STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 29
    10-98256 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (1/2")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (1/2")
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
  • 31
    11-21825 NUT, (.250-28), TERMINAL SOLENOID SCREW
    NUT, (.250-28), TERMINAL SOLENOID SCREW
  • 32
    74407T BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 33
    10-21140 SCREW, (.250-28 x .50), MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
    SCREW, (.250-28 x .50), MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
  • 34
    13-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
    LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
  • 35
    13-27660 LOCKWASHER, HYDRAULIC PUMP THRU BOLT
    LOCKWASHER, HYDRAULIC PUMP THRU BOLT
  • 36
    11-24656 NUT, MOUNTING BRACKET TOP HYDRAULIC PUMP THRU BOLT
    NUT, MOUNTING BRACKET TOP HYDRAULIC PUMP THRU BOLT
  • --
    55642A13 CONTROL PANEL ASSEMBLY, COMPLETE
    CONTROL PANEL ASSEMBLY, COMPLETE
  • 37
    55642A17 PANEL, CONTROL
    PANEL, CONTROL
  • 38
    16-55422 STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2")
    STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2")
  • 39
    12-24676 WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
    WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
  • 40
    11-27164 NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
    NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
  • 41
    55738A1 SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL
    SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL
  • 42
    48078 WIRE, Jumper, PUSH BUTTON SWITCH (RED - 3 1/4")
    WIRE, Jumper, PUSH BUTTON SWITCH (RED - 3 1/4")
  • 42
    53107 WIRE, Jumper (3.00 Inches), PUSH BUTTON SWITCH (PURPLE - 3")
    WIRE, Jumper (3.00 Inches), PUSH BUTTON SWITCH (PURPLE - 3")
  • 43
    55641 RETAINER, PUSH BUTTON SWITCH
    RETAINER, PUSH BUTTON SWITCH
  • 44
    10-62568 SCREW, (#10-16 x .380), SWITCH RETAINER TO CONTROL PANEL (1/2")
    SCREW, (#10-16 x .380), SWITCH RETAINER TO CONTROL PANEL (1/2")
  • 45
    84-87394A20 HARNESS ASSEMBLY, CONTROL PANEL
    HARNESS ASSEMBLY, CONTROL PANEL
  • 46
    33865 BINDER, NYLON - CONTROL PANEL HARNESS
    BINDER, NYLON - CONTROL PANEL HARNESS
  • 47
    95814 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 48
    10-29227 SCREW, (#8-32 x 0.50), HARNESS ATTACHING CLAMP (1/2")
    SCREW, (#8-32 x 0.50), HARNESS ATTACHING CLAMP (1/2")
  • 49
    11-34388 NUT, HARNESS ATTACHING CLAMP SCREW
    NUT, HARNESS ATTACHING CLAMP SCREW
  • 50
    84-79138A1 LEAD, Battery (POSITIVE)
    LEAD, Battery (POSITIVE)
  • 50
    84-79139A9 LEAD, Battery (NEGATIVE)
    LEAD, Battery (NEGATIVE)
  • 51
    48170A4 SENDER ASSEMBLY, TRIM INDICATOR(B-25-48177A1 SEALING RING KIT)
    WITHOUT GIMBAL TRIM SENDER
    SENDER ASSEMBLY, TRIM INDICATOR(B-25-48177A1 SEALING RING KIT)
    WITHOUT GIMBAL TRIM SENDER
  • 52
    22-48169 ELBOW, HYDRAULIC HOSE TO TRIM INDICATOR SENDER
    WITHOUT GIMBAL TRIM SENDER
    ELBOW, HYDRAULIC HOSE TO TRIM INDICATOR SENDER
    WITHOUT GIMBAL TRIM SENDER
  • 53
    10-45265 SCREW, (#10-32 x .3125), BLEED - TRIM INDICATOR SENDER (5/16")
    WITHOUT GIMBAL TRIM SENDER
    SCREW, (#10-32 x .3125), BLEED - TRIM INDICATOR SENDER (5/16")
    WITHOUT GIMBAL TRIM SENDER
  • 54
    25-45016 O-RING, BLLED SCREW
    WITHOUT GIMBAL TRIM SENDER
    O-RING, BLLED SCREW
    WITHOUT GIMBAL TRIM SENDER
  • 55
    10-23703 BOLT, TRIM INDICATOR SENDER TO TRANSOM (7/8")
    WITHOUT GIMBAL TRIM SENDER
    BOLT, TRIM INDICATOR SENDER TO TRANSOM (7/8")
    WITHOUT GIMBAL TRIM SENDER
  • 56
    13-21804 LOCKWASHER, TRIM INDICATOR SENDER SCREW
    WITHOUT GIMBAL TRIM SENDER
    LOCKWASHER, TRIM INDICATOR SENDER SCREW
    WITHOUT GIMBAL TRIM SENDER
