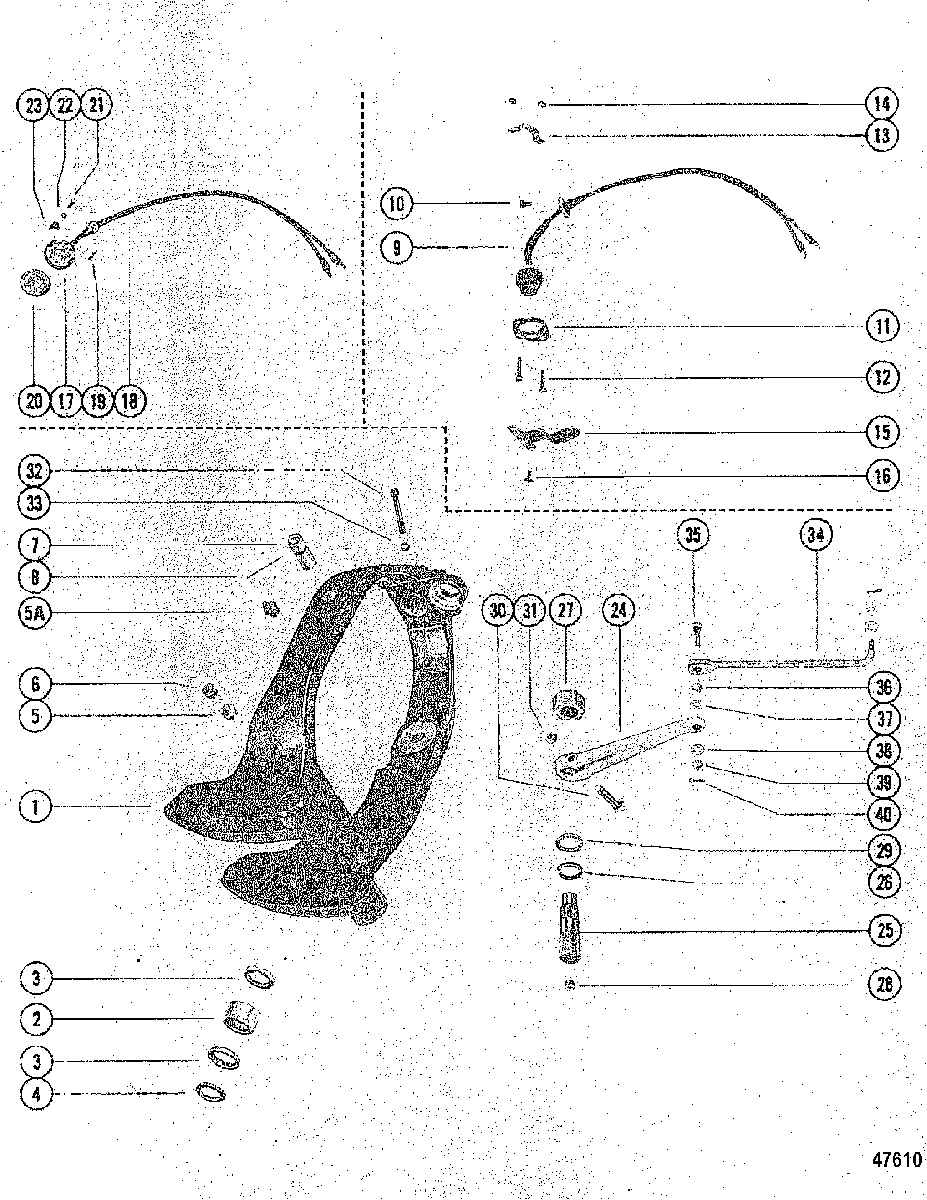

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - 233 1975-1977 4200500 & Up
-
№АртикулНазвание
-
187356A1 GIMBAL RING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)GIMBAL RING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)
-
188302A1 GIMBAL RING ASSEMBLY (WITH GIMBAL TRIM SENDER)GIMBAL RING ASSEMBLY (WITH GIMBAL TRIM SENDER)
-
188302A1 GIMBAL RING ASSEMBLY
(WITH GIMBAL TRIM SENDER AND GREASE FITTINGS FOR HINGE PINS)GIMBAL RING ASSEMBLY
(WITH GIMBAL TRIM SENDER AND GREASE FITTINGS FOR HINGE PINS) -
231-32538 BEARING, ROLLER - GIMBAL RINGBEARING, ROLLER - GIMBAL RING
-
326-32541 SEAL, Oil, GIMBAL RINGSEAL, Oil, GIMBAL RING
-
423-39273 SPACER, GIMBAL RINGSPACER, GIMBAL RING
-
522-69059 FITTING, GREASE - GIMBAL RING (1/8-27)FITTING, GREASE - GIMBAL RING (1/8-27)
-
5A22-74036 FITTING, Grease, GREASE - GIMBAL RING (1/4-28)-USED WITH B-71124A2FITTING, Grease, GREASE - GIMBAL RING (1/4-28)-USED WITH B-71124A2
-
619-77633Q LUBRICAP, GIMBAL RING GREASE FITTINGLUBRICAP, GIMBAL RING GREASE FITTING
-
717-77361A1 PIN, HINGE - GIMBAL RING TO BELL HOUSING
WITHOUT GIMBAL TRIM SENDERPIN, HINGE - GIMBAL RING TO BELL HOUSING
WITHOUT GIMBAL TRIM SENDER -
817-77039 PIN, HINGE PIN RETAINING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDERPIN, HINGE PIN RETAINING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDER -
777123 PIN, HINGE - THREADED(WITHOUT GREASE GROOVE)
WITH GIMBAL TRIM SENDERPIN, HINGE - THREADED(WITHOUT GREASE GROOVE)
WITH GIMBAL TRIM SENDER -
777123 PIN, Hinge, HINGE - THREADED(WITH GREASE GROOVE)
WITH GIMBAL TRIM SENDERPIN, Hinge, HINGE - THREADED(WITH GREASE GROOVE)
WITH GIMBAL TRIM SENDER -
945942A1 SWITCH ASSEMBLY, Tilt Stop, GIMBAL RING
WITHOUT GIMBAL TRIM SENDERSWITCH ASSEMBLY, Tilt Stop, GIMBAL RING
WITHOUT GIMBAL TRIM SENDER -
1010-20367 SCREW, SWITCH COVER TO GIMBAL RING (7/16")
WITHOUT GIMBAL TRIM SENDERSCREW, SWITCH COVER TO GIMBAL RING (7/16")
WITHOUT GIMBAL TRIM SENDER -
1131899 PLATE, RETAINING - SWITCH TO GIMBAL RING
WITHOUT GIMBAL TRIM SENDERPLATE, RETAINING - SWITCH TO GIMBAL RING
WITHOUT GIMBAL TRIM SENDER -
1210-45862 SCREW, (#10-32 x .875), PLATE AND STRAP TO GIMBAL RING (7/8")
WITHOUT GIMBAL TRIM SENDERSCREW, (#10-32 x .875), PLATE AND STRAP TO GIMBAL RING (7/8")
WITHOUT GIMBAL TRIM SENDER -
1332637 STRAP, TILT STOP SWITCH RETAINING
WITHOUT GIMBAL TRIM SENDERSTRAP, TILT STOP SWITCH RETAINING
WITHOUT GIMBAL TRIM SENDER -
1411-20110 NUT, (#10-32), PLATE AND STRAP SCREW
WITHOUT GIMBAL TRIM SENDERNUT, (#10-32), PLATE AND STRAP SCREW
WITHOUT GIMBAL TRIM SENDER -
1549343 LEVER, ACTUATING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDERLEVER, ACTUATING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDER -
1610-31903 SCREW, ACTUATING LEVER TO GIMBAL RING (3/8")
WITHOUT GIMBAL TRIM SENDERSCREW, ACTUATING LEVER TO GIMBAL RING (3/8")
WITHOUT GIMBAL TRIM SENDER -
1764947 SENDER, DUMMY (STARBOARD)
WITH GIMBAL TRIM SENDERSENDER, DUMMY (STARBOARD)
WITH GIMBAL TRIM SENDER -
1884-19280 HARNESS ASSEMBLY, DUMMY SENDER
WITH GIMBAL TRIM SENDERHARNESS ASSEMBLY, DUMMY SENDER
WITH GIMBAL TRIM SENDER -
1910-46942 SCREW, (#6-20 x .3125), HARNESS ATTACHING (5/16")
WITH GIMBAL TRIM SENDERSCREW, (#6-20 x .3125), HARNESS ATTACHING (5/16")
WITH GIMBAL TRIM SENDER -
1763115A2 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
WITH GIMBAL TRIM SENDERSWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
WITH GIMBAL TRIM SENDER -
1884-19292 HARNESS ASSEMBLY, TRIM LIMIT SWITCH
WITH GIMBAL TRIM SENDERHARNESS ASSEMBLY, TRIM LIMIT SWITCH
WITH GIMBAL TRIM SENDER -
1910-63400 SCREW, (#6-32 x .125), HARNESS ATTACHING (5/32")
WITH GIMBAL TRIM SENDERSCREW, (#6-32 x .125), HARNESS ATTACHING (5/32")
WITH GIMBAL TRIM SENDER -
2085-63990 INSULATOR, SWITCH AND SENDER
WITH GIMBAL TRIM SENDERINSULATOR, SWITCH AND SENDER
WITH GIMBAL TRIM SENDER -
2110-37978 SCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING (3/4")
WITH GIMBAL TRIM SENDERSCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING (3/4")
WITH GIMBAL TRIM SENDER -
2213-26996 LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDERLOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDER -
2357008 RETAINER, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDERRETAINER, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDER -
2488433 LEVER, SteeringLEVER, Steering
-
2532582 SHAFT, UPPER SWIVEL-WITHOUT GIMBAL TRIM SENDERSHAFT, UPPER SWIVEL-WITHOUT GIMBAL TRIM SENDER
-
2588302A1 SHAFT, UPPER SWIVEL
WITH GIMBAL TRIM SENDERSHAFT, UPPER SWIVEL
WITH GIMBAL TRIM SENDER -
2653-72413 RING, Retaining, UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDERRING, Retaining, UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDER -
2711-8M2014641 NUT, (.750-16), UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDERNUT, (.750-16), UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDER -
2822-32561 PLUG, Pipe - Allen Head (.250-18), PIPE - UPPER SWIVEL SHAFTPLUG, Pipe - Allen Head (.250-18), PIPE - UPPER SWIVEL SHAFT
-
2912-32996 WASHER, UPPER SWIVEL SHAFT (.015)
WITHOUT GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT (.015)
WITHOUT GIMBAL TRIM SENDER -
2912-32997 WASHER, UPPER SWIVEL SHAFT (.063)
WITHOUT GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT (.063)
WITHOUT GIMBAL TRIM SENDER -
2912-47683 WASHER, UPPER SWIVEL SHAFT (.031)
WITH GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT (.031)
WITH GIMBAL TRIM SENDER -
2912-32997 WASHER, UPPER SWIVEL SHAFT (.062)
WITH GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT (.062)
WITH GIMBAL TRIM SENDER -
3010-807204 SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT (2")SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT (2")
-
3111-20696 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREWNUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
-
3210-45833 SCREW, (.312-18 x 2.500), UPPER SWIVEL SHAFT (2 1/2")
WITHOUT GIMBAL TRIM SENDERSCREW, (.312-18 x 2.500), UPPER SWIVEL SHAFT (2 1/2")
WITHOUT GIMBAL TRIM SENDER -
3312-20546 WASHER, (.330 x .500 x .060), UPPER SWIVEL SHAFT SCREW
WITHOUT GIMBAL TRIM SENDERWASHER, (.330 x .500 x .060), UPPER SWIVEL SHAFT SCREW
WITHOUT GIMBAL TRIM SENDER -
3478790A6 LINK ROD ASSEMBLY, SteeringLINK ROD ASSEMBLY, Steering
-
3510-66389 SCREW, (.375-24 x .875), LEVER TO LINK RODSCREW, (.375-24 x .875), LEVER TO LINK ROD
-
3612-34966 WASHER, STEERING LINK ROD (NYLON)WASHER, STEERING LINK ROD (NYLON)
-
3713-54667 WASHER, SPRING - STEERING LINK RODWASHER, SPRING - STEERING LINK ROD
-
3812-20086 WASHER, (.390 x .620 x .060), STEERING LINK ROD (STEEL)WASHER, (.390 x .620 x .060), STEERING LINK ROD (STEEL)
-
3911-55438 NUT, (.375-24), STEERING LINK RODNUT, (.375-24), STEERING LINK ROD
-
4018-45882 COTTER PIN, LINK ROD AND SCREWCOTTER PIN, LINK ROD AND SCREW
