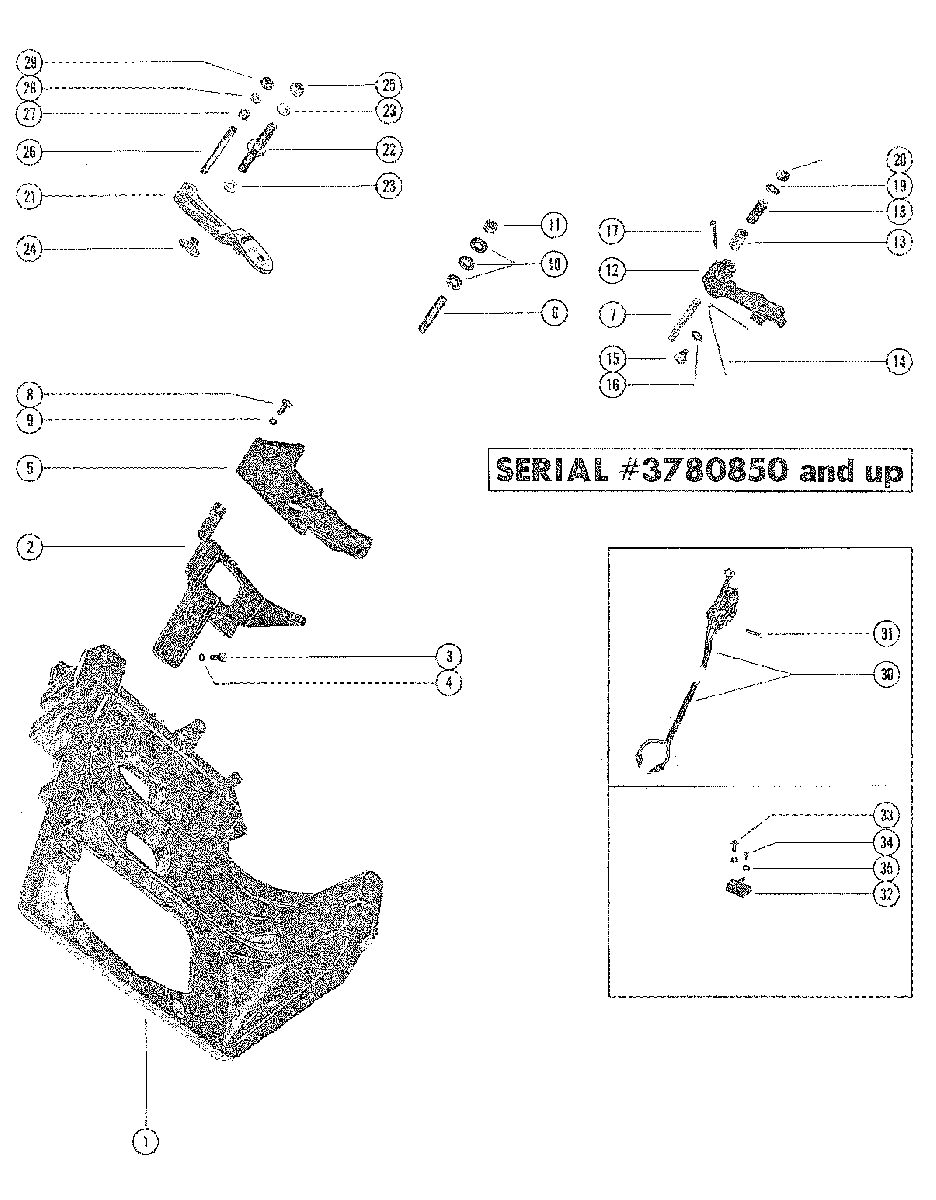

TRANSOM PLATE AND SHIFT LEVER для Mercruiser - 120/140 1970-1977 2791957 THRU 4893634

  • №
    Артикул
    Название
  • 1
    73872A1 PLATE ASSEMBLY,TRANSOM(WITHOUT GIMABL TRIM SENDER)
    PLATE ASSEMBLY,TRANSOM(WITHOUT GIMABL TRIM SENDER)
  • 1
    65550A2 PLATE ASSEMBLY,TRANSOM(WITHOUT GIMBAL TRIM SENDER)
    PLATE ASSEMBLY,TRANSOM(WITHOUT GIMBAL TRIM SENDER)
  • 2
    66058 BRACKET,SHIFT MOUNTING
    BRACKET,SHIFT MOUNTING
  • 3
    10-23703 SCREW,SHIFT MOUNTING BRACKET TO TRANSOM PLATE (7/8")
    SCREW,SHIFT MOUNTING BRACKET TO TRANSOM PLATE (7/8")
  • 4
    13-21804 LOCKWASHER,SHIFT MOUNTING BRACKET SCREW
    LOCKWASHER,SHIFT MOUNTING BRACKET SCREW
  • 5
    66057A3 SHIFT BRACKET ASSEMBLY
    SHIFT BRACKET ASSEMBLY
  • 6
    16-79661 STUD,SHIFT CABLE TO SHIFT BRACKET(1 3/4")
    STUD,SHIFT CABLE TO SHIFT BRACKET(1 3/4")
  • 7
    16-73563 STUD,SWITCH ACTUATING ARM TO SHIFT BRACKET (2 5/16")
    STUD,SWITCH ACTUATING ARM TO SHIFT BRACKET (2 5/16")
  • 8
    10-35386 SCREW,SHIFT BRACKET TO SHIFT MOUNTING BRACKET(1")
    SCREW,SHIFT BRACKET TO SHIFT MOUNTING BRACKET(1")
  • 9
    13-21804 LOCKWASHER,SHIFT BRACKET SCREW
    LOCKWASHER,SHIFT BRACKET SCREW
  • 10
    12-39143 WASHER,SHIFT CABLE STUD
    WASHER,SHIFT CABLE STUD
  • 11
    11-8267089 NUT,SHIFT CABLE STUD
    NUT,SHIFT CABLE STUD
  • 12
    13051A4 ARM ASSEMBLY,SWITCH ACTUATING
    ARM ASSEMBLY,SWITCH ACTUATING
  • 13
    23-45600 SLEEVE,SWITCH ACTUATING STUD
    SLEEVE,SWITCH ACTUATING STUD
  • 14
    24-862850 SPRING,TENSION-SWITCH ACTUATING ARM
    SPRING,TENSION-SWITCH ACTUATING ARM
  • 15
    10-98257 SCREW,TENSION SPRING TO ARM (1/2")
    SCREW,TENSION SPRING TO ARM (1/2")
  • 16
    12-26825 WASHER,TENSION SPRING SCREW
    WASHER,TENSION SPRING SCREW
  • 17
    18-328571 COTTER PIN,SHIFT ACTUATING CABLE TO SHIFT BRACKET
    COTTER PIN,SHIFT ACTUATING CABLE TO SHIFT BRACKET
  • 18
    23-37981 SPACER SWITCH ACTUATING ARM TO SHIFT BRACKET
    SPACER SWITCH ACTUATING ARM TO SHIFT BRACKET
  • 19
    12-26825 WASHER,SWITCH ACTAUTING ARM STUD
    WASHER,SWITCH ACTAUTING ARM STUD
  • 20
    11-82670911 NUT,SWITCH ACTUATING ARM STUD
    NUT,SWITCH ACTUATING ARM STUD
  • 21
    66397A1 LEVER ASSEMBLY,SHIFT CONTROL-CAM LEVER
    LEVER ASSEMBLY,SHIFT CONTROL-CAM LEVER
  • 22
    16-63335 STUD,SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER (2")
    STUD,SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER (2")
  • 23
    12-39143 WASHER,SHIFT ACTUATING CABLE STUD
    WASHER,SHIFT ACTUATING CABLE STUD
  • 24
    11-63341 NUT,SHIFT ACTAUTING CABLE TO SHIFT CONTROL LEVER
    NUT,SHIFT ACTAUTING CABLE TO SHIFT CONTROL LEVER
  • 25
    11-8267089 NUT,SHIFT CABLE STUD
    NUT,SHIFT CABLE STUD
  • 26
    16-79661 STUD,SHIFT CABLE TO LEVER (1 3/4")
    STUD,SHIFT CABLE TO LEVER (1 3/4")
  • 27
    23-31866 SPACER,SHIFT CABLE STUD
    SPACER,SHIFT CABLE STUD
  • 28
    12-39143 WASHER,SHIFT CABLE STUD
    WASHER,SHIFT CABLE STUD
  • 29
    11-8267089 NUT,SHIFT ACTUATING LEVER
    NUT,SHIFT ACTUATING LEVER
  • 30
    39670A28 SWITCH ASSEMBLY,CUT-OUT-SHIFT BRACKET
    SWITCH ASSEMBLY,CUT-OUT-SHIFT BRACKET
  • 31
    10-30902 SCREW,SWITCH ASSEMBLY TO SHIFT BRACKET (3/4")
    SCREW,SWITCH ASSEMBLY TO SHIFT BRACKET (3/4")
  • 32
    86-66986 TERMINAL BLOCK,CUT-OUT SWITCH LEADS
    TERMINAL BLOCK,CUT-OUT SWITCH LEADS
  • 33
    10-24637 SCREW,GROUND LEADS-TERMINAL BLOCK TO BRACKET (7/8")
    SCREW,GROUND LEADS-TERMINAL BLOCK TO BRACKET (7/8")
  • 34
    10-45218 SCREW,CUT-OUT SWITCH LEAD TO TERMINAL BLOCK (3/8")
    SCREW,CUT-OUT SWITCH LEAD TO TERMINAL BLOCK (3/8")
  • 35
    13-26996 LOCKWASHER,TERMINAL BLOCK SCREWS
    LOCKWASHER,TERMINAL BLOCK SCREWS
