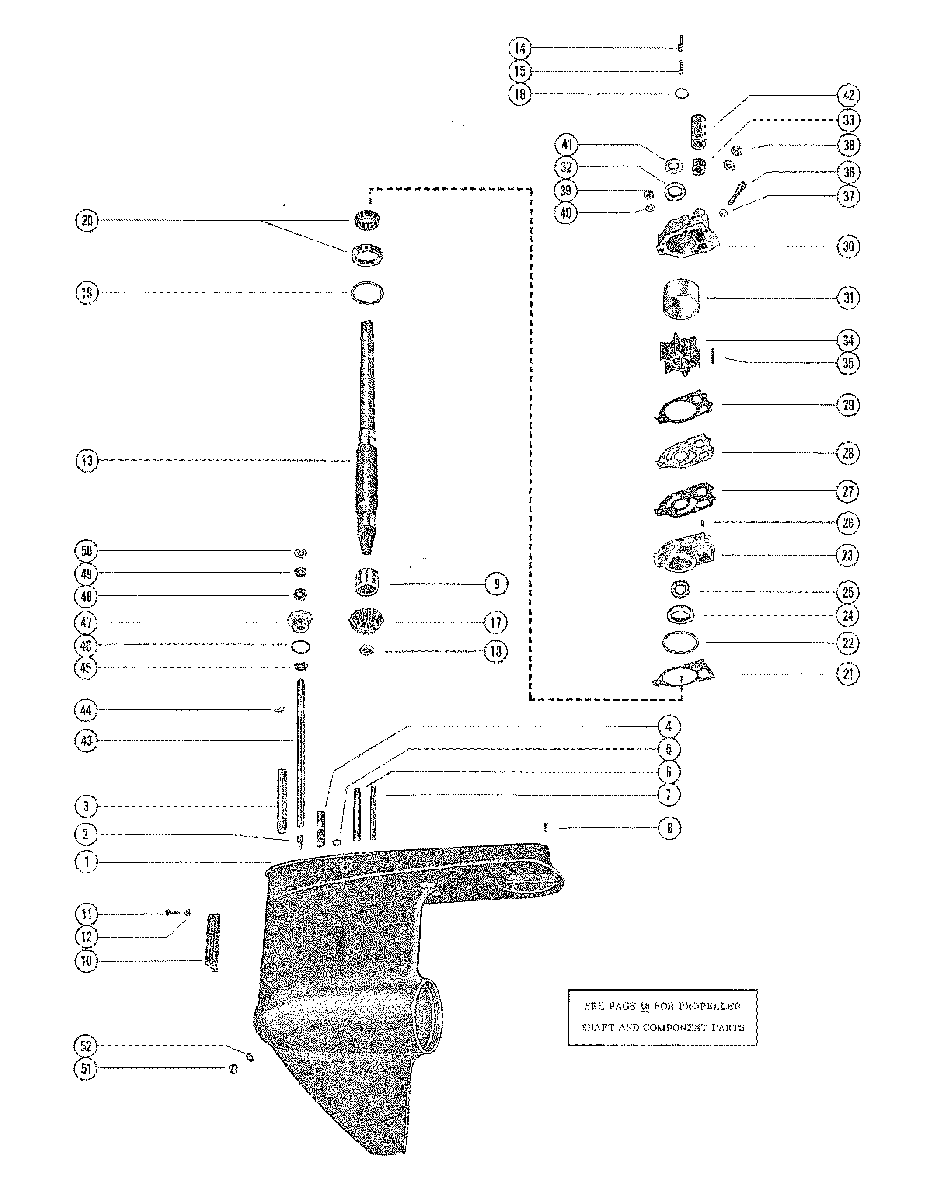

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - 120/140 1970-1977 2791957 THRU 4893634

  • №
    Артикул
    Название
  • 1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETE
    SERIAL 00000000-03443920
    GEAR HOUSING ASSEMBLY, COMPLETE
    SERIAL 00000000-03443920
  • 1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETE
    SERIAL 03469428-00378084
    GEAR HOUSING ASSEMBLY, COMPLETE
    SERIAL 03469428-00378084
  • 1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETE
    SERIAL 03780850-03899469
    GEAR HOUSING ASSEMBLY, COMPLETE
    SERIAL 03780850-03899469
  • 1623-8951A43 GEAR HOSING ASSEMBLY, COMPLETE
    SERIAL 03899470-09999999
    GEAR HOSING ASSEMBLY, COMPLETE
    SERIAL 03899470-09999999
  • 1
    1623-5356A4 GEAR HOSING ASSEMBLY
    SERIAL 00000000-03899469
    GEAR HOSING ASSEMBLY
    SERIAL 00000000-03899469
  • 1
    1623-5356A4 GEAR HOUSING ASSEMBLY
    SERIAL 03899470-09999999
    GEAR HOUSING ASSEMBLY
    SERIAL 03899470-09999999
  • 2
    17-379721 PIN, SHIFT CRANK - GEAR HOUSING
    PIN, SHIFT CRANK - GEAR HOUSING
  • 3
    16-46911 STUD, GEAR HOSUING TO DRIVE SHAFT HOUSING (3 3/16")
    STUD, GEAR HOSUING TO DRIVE SHAFT HOUSING (3 3/16")
  • 4
    16-56298 STUD, GEAR HOUSING TO DRIVE SHAFT HOSING (1 31/32")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOSING (1 31/32")
  • 5
    26-455771 SEAL, GEAR HOUSING
    SEAL, GEAR HOUSING
  • 6
    16-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
  • 7
    16-69501 STUD, WATER PUMP BASE AND BODY TO GAER HOUSING (3 1/4")
    STUD, WATER PUMP BASE AND BODY TO GAER HOUSING (3 1/4")
  • 8
    17-8M0084726 PIN, DOWEL - GEAR HOSUING TO DRIVE SHAFT HOUSING
    PIN, DOWEL - GEAR HOSUING TO DRIVE SHAFT HOUSING
  • 9
    31-35934A1 BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 10
    66885 INSERT, WATER PICKUP (STARBOARD SIDE)
    SERIAL 03899470-09999999
    INSERT, WATER PICKUP (STARBOARD SIDE)
    SERIAL 03899470-09999999
  • 10
    66884 INSERT, WATER PICKUP (PORT SIDE)
    SERIAL 03899470-09999999
    INSERT, WATER PICKUP (PORT SIDE)
    SERIAL 03899470-09999999
  • 11
    10-76156 SCREW, INSERT TO GEAR HOUSING (1 7/8")
    SERIAL 03469428-04530701
    SCREW, INSERT TO GEAR HOUSING (1 7/8")
    SERIAL 03469428-04530701
  • 11
    10-76156 SCREW, INSERT TO GEAR HOUSING (1 7/8")
    SERIAL 00453072-09999999
    SCREW, INSERT TO GEAR HOUSING (1 7/8")
    SERIAL 00453072-09999999
  • 12
    11-859124 NUT, INSERT SCREW
    SERIAL 03899470-09999999
    NUT, INSERT SCREW
    SERIAL 03899470-09999999
  • 13
    45-41939F1 DRIVE SHAFT ASSEMBLY
    DRIVE SHAFT ASSEMBLY
  • 14
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 15
    24-34576 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 16
    25-30613 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
  • 17
    43-55812T GEAR, PINION - DRIVE SHAFT
    SERIAL 00000000-03443920
    GEAR, PINION - DRIVE SHAFT
    SERIAL 00000000-03443920
  • 17
    43-96084A4 GEAR, PINION - DRIVE SHAFT
    SERIAL 03469428-09999999
    GEAR, PINION - DRIVE SHAFT
    SERIAL 03469428-09999999
  • 18
    11-35921 NUT, PINION GEAR TO SHAFT
    NUT, PINION GEAR TO SHAFT
  • 19
    15-57007A1 SHIM, DRIVE SAHFT BAERING TO GAER HOUSING (.002-3-5-10)
    SHIM, DRIVE SAHFT BAERING TO GAER HOUSING (.002-3-5-10)
  • 20
    31-53079A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
  • 21
    27-856704 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 22
    25-33145 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 23
    46-57234A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 24
    26-89238 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 25
    26-16977 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 26
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 27
    27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 28
    324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 29
    27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 30
    46-96148T1 WATER PUMP BODY ASSEMBLY
    SERIAL 00000000-03780849
    WATER PUMP BODY ASSEMBLY
    SERIAL 00000000-03780849
  • 30
    46-96148T1 WATER PUMP BODY ASSEMBLY
    SERIAL 03780850-09999999
    WATER PUMP BODY ASSEMBLY
    SERIAL 03780850-09999999
  • 31
    48752T INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 32
    26-16977 OIL SEAL, WATER PUMP BODY (EARLY MODELS ONLY)
    OIL SEAL, WATER PUMP BODY (EARLY MODELS ONLY)
  • 33
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 34
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 35
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 36
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
    SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
  • 37
    12-36001 WASHER, WATER PUMP BODY SCREW
    WASHER, WATER PUMP BODY SCREW
  • 38
    11-35888 NUT, WATER PUMP BODY STUDS (1 1/4-28)
    NUT, WATER PUMP BODY STUDS (1 1/4-28)
  • 39
    11-826709111 NUT, WATER PUMP BODY STUD (5/16-24)
    NUT, WATER PUMP BODY STUD (5/16-24)
  • 40
    12-29245 WASHER, WATER PUMP BODY STUD
    WASHER, WATER PUMP BODY STUD
  • 41
    25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 42
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 43
    774811 SHIFT, SHIFT - LOWER
    SERIAL 00000000-03780849
    SHIFT, SHIFT - LOWER
    SERIAL 00000000-03780849
  • 43
    774811 SHAFT, SHIFT - LOWER
    SERIAL 03780850-09999999
    SHAFT, SHIFT - LOWER
    SERIAL 03780850-09999999
  • 44
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 45
    12-27880 WASHER, LOWER SHIFT SHAFT AND CRANK
    WASHER, LOWER SHIFT SHAFT AND CRANK
  • 46
    25-25439 "O" RING, SHAFT SHAFT BUSHING
    "O" RING, SHAFT SHAFT BUSHING
  • 47
    23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 48
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 49
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 50
    12-8M0042641 WASHER, SHIFT SHAFT
    WASHER, SHIFT SHAFT
  • 51
    10-79953Q04 SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE
    SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE
  • 52
    12-191833 WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
    WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
  • -
    46-96148A8 WATER PUMP KIT
    WATER PUMP KIT
