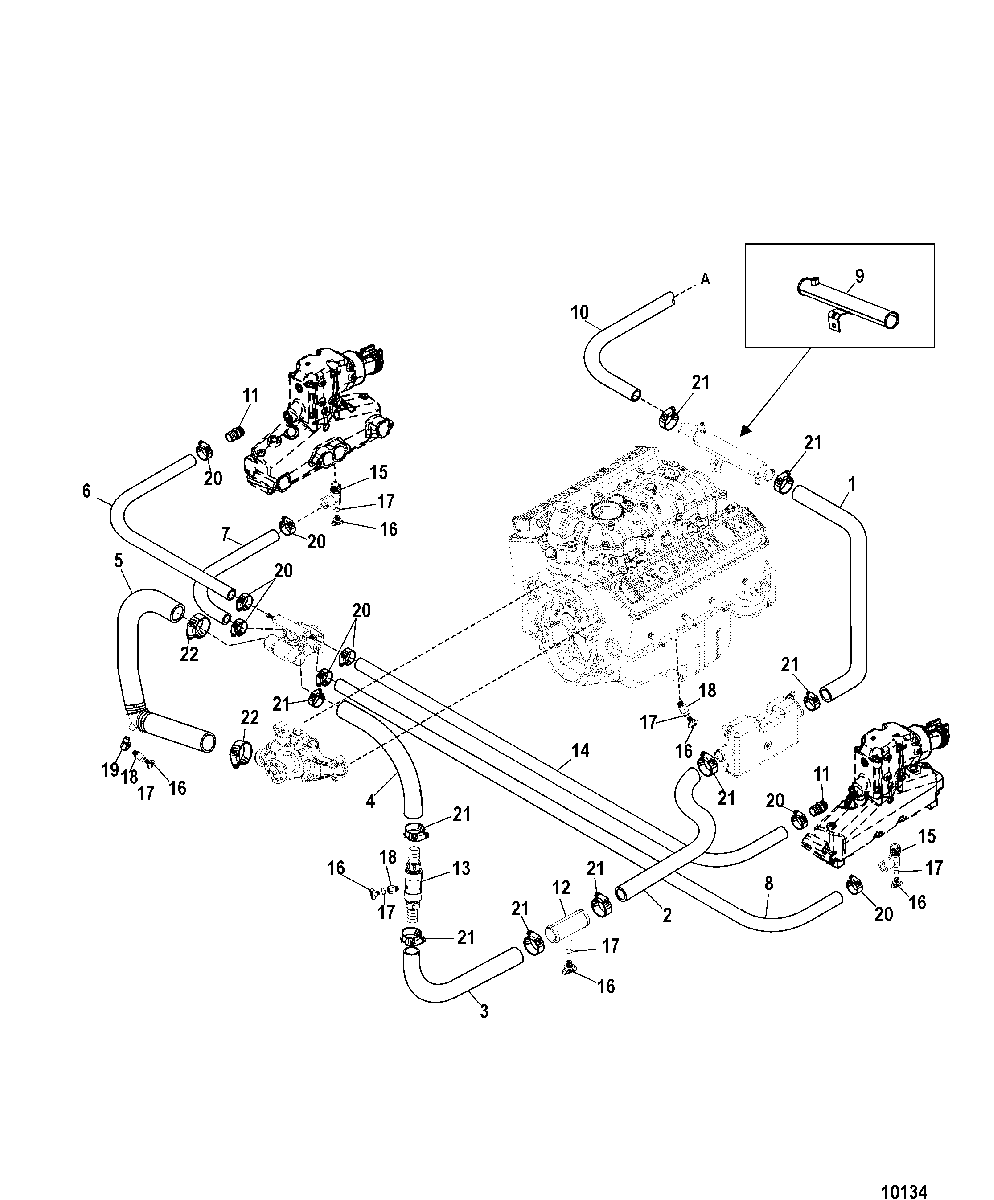

Standard Cooling System - ALPHA, 7 Point Drain для Mercruiser - MX 6.2L MPI BRAVO 0W650000 THRU 1A299999

  • №
    Артикул
    Название
  • 1
    32-8600891 HOSE, Molded, Power Steering to Fuel Cooler
    HOSE, Molded, Power Steering to Fuel Cooler
  • 2
    32-866331 HOSE, Fuel Cooler to Drain Fitting
    Cut to Length
    HOSE, Fuel Cooler to Drain Fitting
    Cut to Length
  • 3
    32-864578 HOSE, Drain Fitting to Check Valve
    HOSE, Drain Fitting to Check Valve
  • 4
    32-864579 HOSE, Check Valve to Thermostat Housing
    HOSE, Check Valve to Thermostat Housing
  • 5
    32-864703A1 HOSE, Circulating Pump to Drain Elbow
    HOSE, Circulating Pump to Drain Elbow
  • 6
    32-864979 HOSE, Starboard Exhaust Elbow to Thermostat Housing
    HOSE, Starboard Exhaust Elbow to Thermostat Housing
  • 7
    32-863459 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 8
    32-863458 HOSE, Thermostat Housing to Port Manifold
    HOSE, Thermostat Housing to Port Manifold
  • 9
    863841T TUBE, Water, Brass
    Compact Hydralic Steering
    TUBE, Water, Brass
    Compact Hydralic Steering
  • 10
    32-807661 HOSE, Transom Assembly to Power Steering Cooler
    HOSE, Transom Assembly to Power Steering Cooler
  • 11
    22-866725 FITTING, Straight (.750-14), Barb
    FITTING, Straight (.750-14), Barb
  • 12
    861505 FITTING, Drain Tee
    FITTING, Drain Tee
  • 13
    21-862271A1 CHECK VALVE
    CHECK VALVE
  • 14
    32-864435 HOSE, Port Exhaust Elbow to Thermostat Housing
    HOSE, Port Exhaust Elbow to Thermostat Housing
  • 15
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 16
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 17
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 18
    22-860088 BUSHING
    BUSHING
  • 19
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 20
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 21
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 22
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
