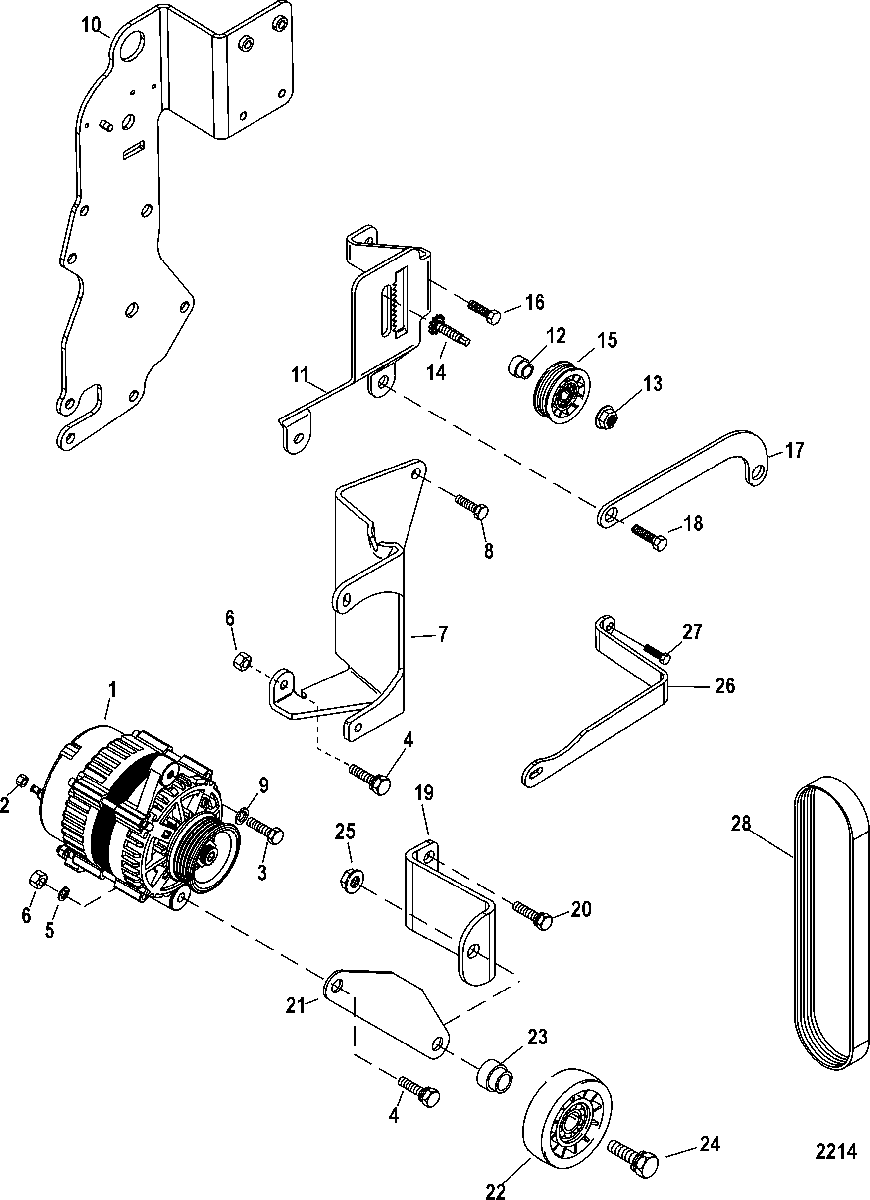

Alternator and Brackets для Mercruiser - MX 6.2L MPI BRAVO 0W650000 THRU 1A299999

  • №
    Артикул
    Название
  • 1
    863077T ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley
    Non Serviceable
    ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley
    Non Serviceable
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 4
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 5
    12-57792 WASHER
    WASHER
  • 6
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 7
    863211T01 BRACKET, Alternator Mounting
    BRACKET, Alternator Mounting
  • 8
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 9
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 10
    865188T01 BRACKET
    Without Air Actuated Drain
    BRACKET
    Without Air Actuated Drain
  • 10
    865188T BRACKET
    With Air Actuated Drain
    BRACKET
    With Air Actuated Drain
  • 11
    862083T BRACKET, Idler Adjustment
    BRACKET, Idler Adjustment
  • 12
    865193 BUSHING
    BUSHING
  • 13
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 14
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 15
    864625T PULLEY (4.25 Inch Diameter)
    With Power Steering
    PULLEY (4.25 Inch Diameter)
    With Power Steering
  • 15
    807757T PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    Compact Hydralic Steering
    PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    Compact Hydralic Steering
  • 16
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 17
    862082T BRACE, Power Steering
    BRACE, Power Steering
  • 18
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 19
    864456T BRACKET, Alternator Brace
    Bravo, Alpha-Closed Cooling
    BRACKET, Alternator Brace
    Bravo, Alpha-Closed Cooling
  • 20
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 21
    862085T BRACE, Idler Bracket
    Bravo, Alpha-Closed Cooling
    BRACE, Idler Bracket
    Bravo, Alpha-Closed Cooling
  • 22
    8M6500024 PULLEY
    Bravo, Alpha-Closed Cooling
    PULLEY
    Bravo, Alpha-Closed Cooling
  • 23
    865193 BUSHING
    Bravo, Alpha-Closed Cooling
    BUSHING
    Bravo, Alpha-Closed Cooling
  • 24
    10-56393 SCREW, (.437-20 x 1.75)
    Bravo, Alpha-Closed Cooling
    SCREW, (.437-20 x 1.75)
    Bravo, Alpha-Closed Cooling
  • 25
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    Bravo, Alpha-Closed Cooling
    NUT, (.437-20) Brass/Nickel Plated
    Bravo, Alpha-Closed Cooling
  • 26
    862778 BRACKET, Alternator Brace
    BRACKET, Alternator Brace
  • 27
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 28
    57-865615Q04 BELT
    Standard Cooling, Alpha, With Power Steering
    BELT
    Standard Cooling, Alpha, With Power Steering
  • 28
    57-865615Q09 BELT
    Standard Cooling, Alpha, CHS and Non Power Steering
    BELT
    Standard Cooling, Alpha, CHS and Non Power Steering
  • 28
    57-865615Q03 BELT
    Standard Cooling, Bravo, With Power Steering
    BELT
    Standard Cooling, Bravo, With Power Steering
  • 28
    57-865615Q08 BELT
    Standard Cooling, Bravo, CHS and Non Power Steering
    BELT
    Standard Cooling, Bravo, CHS and Non Power Steering
  • 28
    57-865615Q01 BELT, Serpentine
    Standard Cooling, Axius
    BELT, Serpentine
    Standard Cooling, Axius
  • 28
    57-865615Q06 BELT
    Alpha/Bravo,Closed Cooling, With Power Steering
    BELT
    Alpha/Bravo,Closed Cooling, With Power Steering
  • 28
    57-865615Q08 BELT
    Alpha/Bravo, Closed Cooling, CHS and Non Power Steering
    BELT
    Alpha/Bravo, Closed Cooling, CHS and Non Power Steering
  • 28
    57-8M2018984 BELT, Serpentine
    Axius, Closed Cooling
    BELT, Serpentine
    Axius, Closed Cooling
