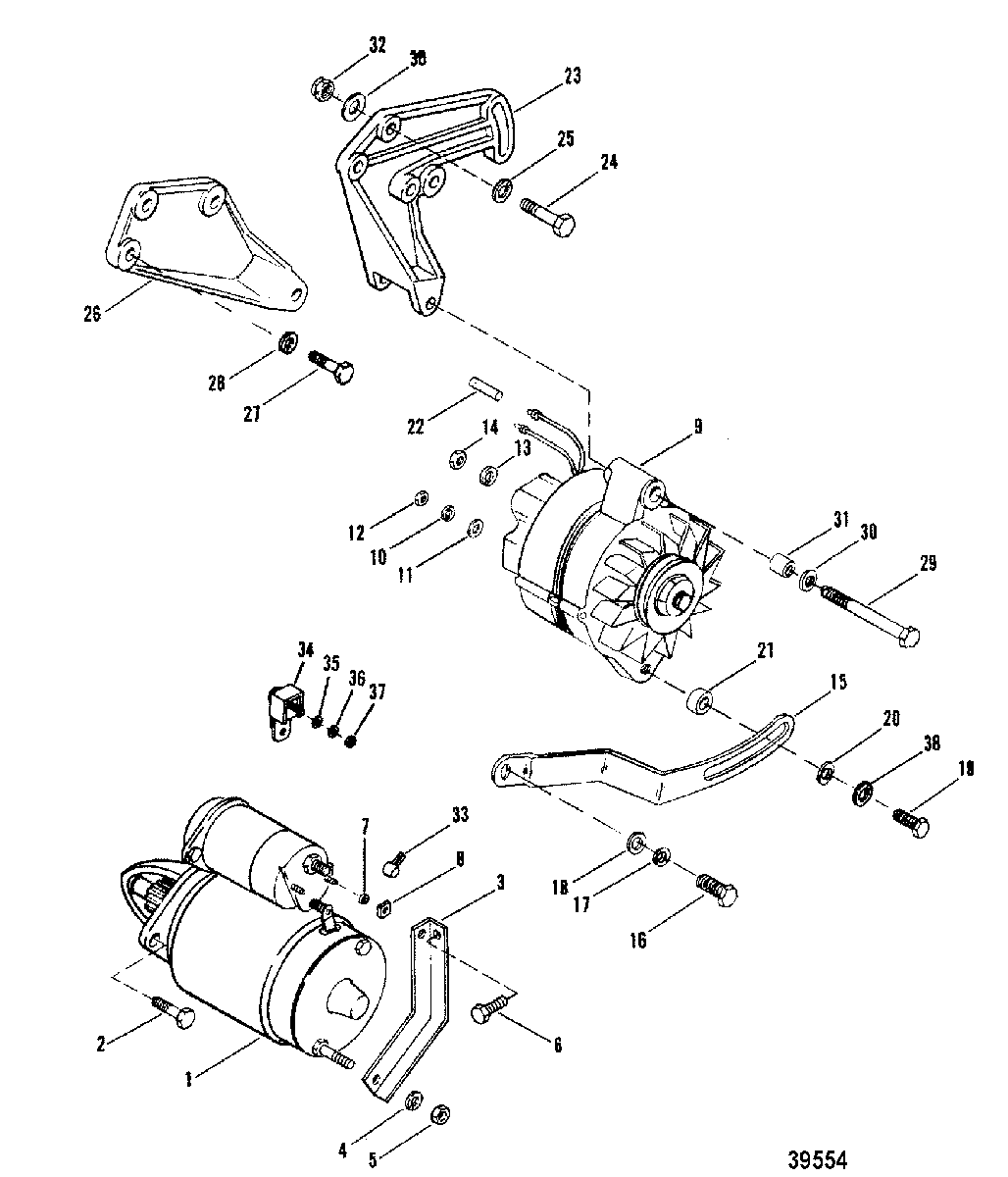

STARTER MOTOR AND ALTERNATOR для Mercruiser - 898 (2 BBL.) GM 305 V-8 1983-1984 6218462 THRU 0B525981
-
№АртикулНазвание
-
150-8M0090697 STARTER MOTOR ASSEMBLY
USE WITH 12-3/4" FLYWHEELSTARTER MOTOR ASSEMBLY
USE WITH 12-3/4" FLYWHEEL -
150-863007A1 STARTER MOTOR ASSEMBLY
USE WITH 14" FLYWHEELSTARTER MOTOR ASSEMBLY
USE WITH 14" FLYWHEEL -
210-94435001 BOLT, (.375-16 x 4.600), STARTER MOTOR
USE WITH 12-3/4" FLYWHEELBOLT, (.375-16 x 4.600), STARTER MOTOR
USE WITH 12-3/4" FLYWHEEL -
210-8053433 BOLT, (1 15/16), STARTER MOTOR (1-15/16")
USE WITH 12-3/4" FLYWHEELBOLT, (1 15/16), STARTER MOTOR (1-15/16")
USE WITH 12-3/4" FLYWHEEL -
210-94435001 BOLT, (.375-16 x 4.600), STARTER MOTOR
USE WITH 14" FLYWHEELBOLT, (.375-16 x 4.600), STARTER MOTOR
USE WITH 14" FLYWHEEL -
335363 BRACE, STARTER MOTOR
USE WITH 12-3/4" FLYWHEELBRACE, STARTER MOTOR
USE WITH 12-3/4" FLYWHEEL -
312404 BRACE, STARTER MOTOR
USE WITH 14" FLYWHEELBRACE, STARTER MOTOR
USE WITH 14" FLYWHEEL -
412-29245 WASHER, (.281 x .500 x .060) Stainless Steel, STARTER MOTOR STUD
USE WITH 12-3/4" FLYWHEELWASHER, (.281 x .500 x .060) Stainless Steel, STARTER MOTOR STUD
USE WITH 12-3/4" FLYWHEEL -
412-29245 WASHER, (.281 x .500 x .060) Stainless Steel, STARTER MOTOR STUD
USE WITH 14" FLYWHEELWASHER, (.281 x .500 x .060) Stainless Steel, STARTER MOTOR STUD
USE WITH 14" FLYWHEEL -
511-8267088 NUT, (.250-20), STARTER MOTOR STUD
USE WITH 12-3/4" FLYWHEELNUT, (.250-20), STARTER MOTOR STUD
USE WITH 12-3/4" FLYWHEEL -
511-8267088 NUT, (.250-20), STARTER MOTOR STUD
USE WITH 14" FLYWHEELNUT, (.250-20), STARTER MOTOR STUD
USE WITH 14" FLYWHEEL -
610-35765A1 SCREW, (5/8), BRACE TO ENGINE (5/8")SCREW, (5/8), BRACE TO ENGINE (5/8")
-
713-26995 LOCKWASHER, (#8) Stainless Steel, STARTER TERMINALLOCKWASHER, (#8) Stainless Steel, STARTER TERMINAL
-
811-26419 NUT, (#8-32) Brass, STARTER TERMINALNUT, (#8-32) Brass, STARTER TERMINAL
-
9817119A4 ALTERNATOR ASSEMBLY, (55 Ampere) (55 AMP)ALTERNATOR ASSEMBLY, (55 Ampere) (55 AMP)
-
1013-26996 LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINALLOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL
-
1112-96457 WASHER, Phenolic (.27 x .81 x .062), ALTERNATOR TERMINALWASHER, Phenolic (.27 x .81 x .062), ALTERNATOR TERMINAL
-
1211-30968 NUT, (10-24), ALTERNATOR TERMINAL (10-24)NUT, (10-24), ALTERNATOR TERMINAL (10-24)
-
1313-21272 LOCKWASHER, (.250), ALTERNATOR TERMINALLOCKWASHER, (.250), ALTERNATOR TERMINAL
-
1411-20890 NUT, (.250-20), ALTERNATOR TERMINALNUT, (.250-20), ALTERNATOR TERMINAL
-
1585013T BRACE, ALTERNATOR ADJUSTINGBRACE, ALTERNATOR ADJUSTING
-
1610-98261 SCREW, (.375-16 x .75), ALTERNATOR BRACESCREW, (.375-16 x .75), ALTERNATOR BRACE
-
1713-35048 LOCKWASHER, (.375), ALTERNATOR BRACE SCREWLOCKWASHER, (.375), ALTERNATOR BRACE SCREW
-
1812-20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACE SCREWWASHER, (.406 x .734 x .063), ALTERNATOR BRACE SCREW
-
1910-74824 SCREW, (.312-18 x 1.250), ALTERNATOR BRACESCREW, (.312-18 x 1.250), ALTERNATOR BRACE
-
2012-26168 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
2123-52095 SPACER, ALTERNATOR BRACE SCRWSPACER, ALTERNATOR BRACE SCRW
-
225790811 SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADSSLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS
-
2387115A1 BRACKET, ALTERNATOR
W/POWER STEERINGBRACKET, ALTERNATOR
W/POWER STEERING -
2410-37612 SCREW, (.375-16 x 1.250), ALTERNATOR BRACKET
W/POWER STEERINGSCREW, (.375-16 x 1.250), ALTERNATOR BRACKET
W/POWER STEERING -
2410-34354 SCREW, (.375-16 x 1.50), ALTERNATOR BRACKET
W/POWER STEERINGSCREW, (.375-16 x 1.50), ALTERNATOR BRACKET
W/POWER STEERING -
2513-35048 LOCKWASHER, (.375), ALTERNAOTR BRACKET SCREW
W/POWER STEERINGLOCKWASHER, (.375), ALTERNAOTR BRACKET SCREW
W/POWER STEERING -
2693175T BRACKET, ALTERNATOR
W/O POWER STEERINGBRACKET, ALTERNATOR
W/O POWER STEERING -
2710-37612 SCREW, (.375-16 x 1.250), ALTERNATOR BRACKET
W/O POWER STEERINGSCREW, (.375-16 x 1.250), ALTERNATOR BRACKET
W/O POWER STEERING -
2813-35048 LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW
W/O POWER STEERINGLOCKWASHER, (.375), ALTERNATOR BRACKET SCREW
W/O POWER STEERING -
2910-48308 SCREW, (.375-24 x 3.750), ALTERNATORSCREW, (.375-24 x 3.750), ALTERNATOR
-
3012-20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACKET SCREWWASHER, (.406 x .734 x .063), ALTERNATOR BRACKET SCREW
-
3123-33186 BUSHING, ALTERNATOR BRACKET SCREWBUSHING, ALTERNATOR BRACKET SCREW
-
3211-23161 NUT, (.375-24), ALTERNATOR BRACKET SCREWNUT, (.375-24), ALTERNATOR BRACKET SCREW
-
3385-79695T BOOT, Insulator - Black, STARTER TERMINALBOOT, Insulator - Black, STARTER TERMINAL
-
3488-79023A91 FUSE ASSEMBLY, 90 Ampere
NOT USED ON LATER MODELSFUSE ASSEMBLY, 90 Ampere
NOT USED ON LATER MODELS -
3512-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
NOT USED ON LATER MODELSWASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
NOT USED ON LATER MODELS -
3613-26992 LOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL
NOT USED ON LATER MODELSLOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL
NOT USED ON LATER MODELS -
3711-21825 NUT, (.250-28), FUSE TERMINAL
NOT USED ON LATER MODELSNUT, (.250-28), FUSE TERMINAL
NOT USED ON LATER MODELS -
3813-39107 LOCKWASHER, (.312-24), ALTERNATOR BRACE SCREWLOCKWASHER, (.312-24), ALTERNATOR BRACE SCREW
