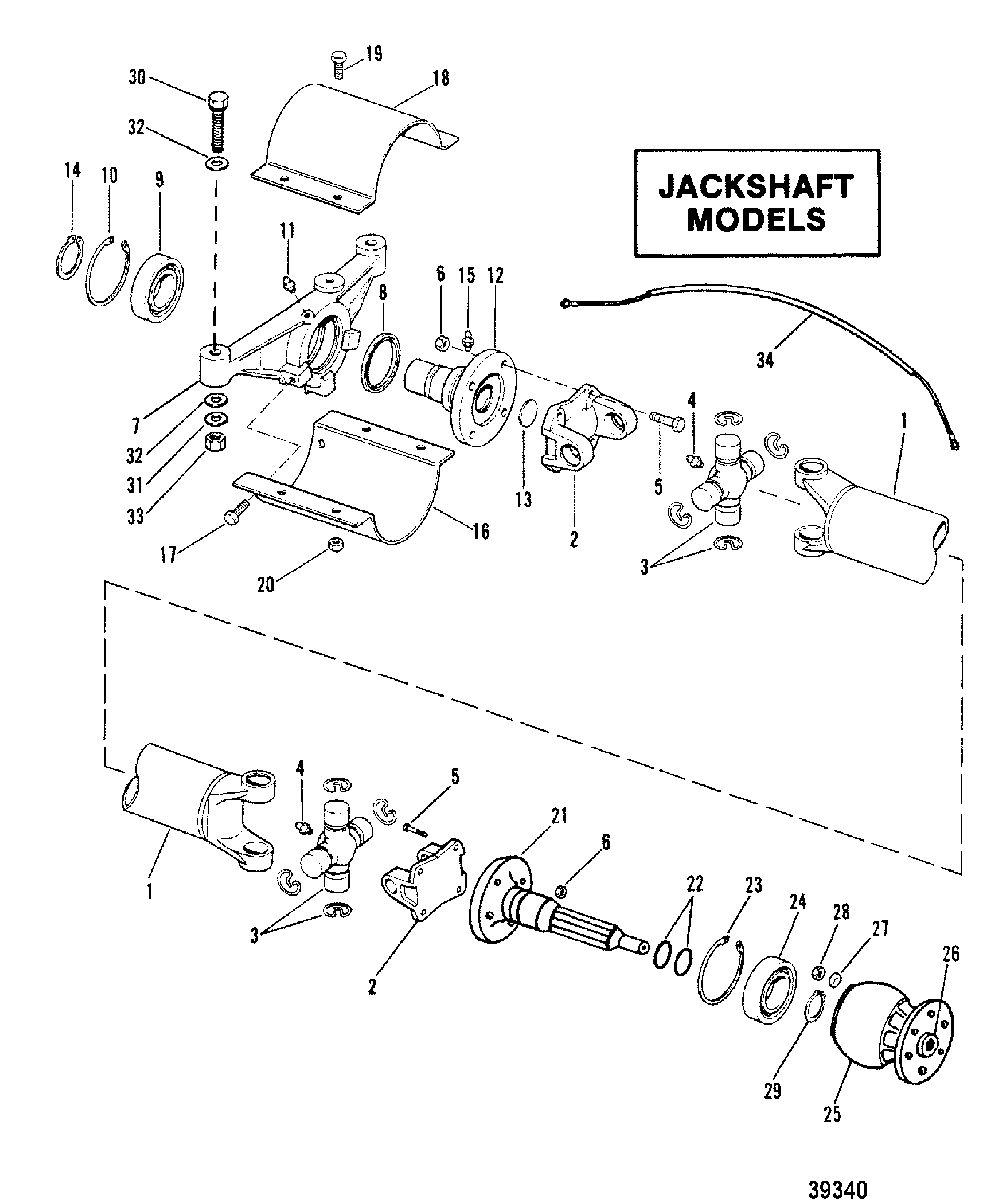

DRIVESHAFT EXTENSION COMPONENTS, JACKSHAFT MODELS для Mercruiser - 898 (2 BBL.) GM 305 V-8 1983-1984 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    45-94819A3 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 2
    52504T FLANGE, DRIVESHAFT
    FLANGE, DRIVESHAFT
  • 3
    61221T CROSS AND BEARING, With Clips
    CROSS AND BEARING, With Clips
  • 4
    22-74036 FITTING, Grease
    FITTING, Grease
  • 5
    10-805159 SCREW, (.437-20 x 1.500), DRIVESHAFT FLANGE
    SCREW, (.437-20 x 1.500), DRIVESHAFT FLANGE
  • 6
    11-34933 NUT, (.437-20) Stainless Steel, FLANGE SCREW
    NUT, (.437-20) Stainless Steel, FLANGE SCREW
  • 7
    817416A4 SUPPORT ASSEMBLY
    SUPPORT ASSEMBLY
  • 8
    26-93924 SEAL
    SEAL
  • 9
    30-93944A2 BEARING
    BEARING
  • 10
    53-93914 RING, Retaining, BALL BEARING
    RING, Retaining, BALL BEARING
  • 11
    22-74036 FITTING, Grease
    FITTING, Grease
  • 12
    93908A1 SHAFT ASSEMBLY, INPUT
    SHAFT ASSEMBLY, INPUT
  • 13
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 14
    53-93915 RING, Retaining, INPUT SHAFT
    RING, Retaining, INPUT SHAFT
  • 15
    22-74036 FITTING, Grease
    FITTING, Grease
  • 16
    93918A1 SHIELD, Lower
    SHIELD, Lower
  • 17
    10-76926 SCREW, (.375-16 x .875), LOWER SHIELD TO SUPPORT
    SCREW, (.375-16 x .875), LOWER SHIELD TO SUPPORT
  • 18
    93919A1 SHIELD, Upper
    SHIELD, Upper
  • 19
    10-96995 SCREW, (.375-16 x .880), UPPER AND LOWER SHIELD
    SCREW, (.375-16 x .880), UPPER AND LOWER SHIELD
  • 20
    11-82671112 NUT, SHIELD SCREW
    NUT, SHIELD SCREW
  • 21
    93906A2 SHAFT, OUTPUT
    SHAFT, OUTPUT
  • 22
    25-25439 O-RING, (.862 x .103)
    O-RING, (.862 x .103)
  • 23
    53-94104 RING, Retaining, BALL BEARING, INTERNAL
    RING, Retaining, BALL BEARING, INTERNAL
  • 24
    30-879194A03 BEARING, Ball
    BEARING, Ball
  • 25
    49736A3 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 26
    23-95966 BUSHING, COUPLING
    BUSHING, COUPLING
  • 27
    12-34567 WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 28
    11-8M2008293 NUT, (.437-20), HOUSING SCREW
    NUT, (.437-20), HOUSING SCREW
  • 29
    53-8M0141818 RING, EXTERNAL
    RING, EXTERNAL
  • 30
    10-57053 SCREW, (.500-20 x 4.500), BEARING SUPPORT
    SCREW, (.500-20 x 4.500), BEARING SUPPORT
  • 32
    12-42307 WASHER, BEARING SUPPORT BOLT (SPHERICAL)
    WASHER, BEARING SUPPORT BOLT (SPHERICAL)
  • 33
    11-898832 NUT, (.500-20), BEARING SUPPORT BOLT
    NUT, (.500-20), BEARING SUPPORT BOLT
  • 34
    84-41575A1 HARNESS ASSEMBLY, SHIFT AND TRIM
    HARNESS ASSEMBLY, SHIFT AND TRIM
