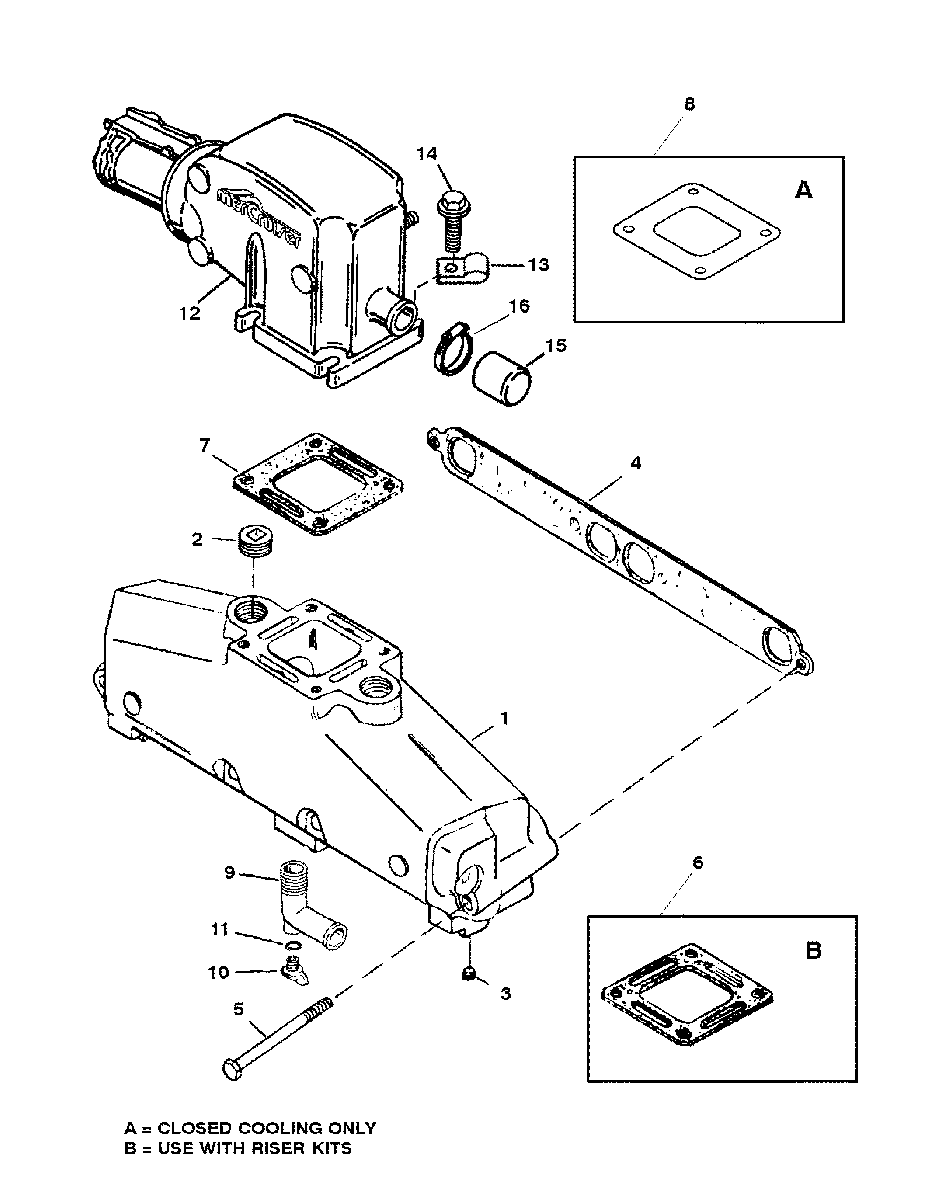

EXH. MANIFOLD AND STAINLESS STEEL EXHAUST ELBOW (BRAVO) для Mercruiser - 5.7LX EFI (4 BBL.-TBI) GM 350 V-8 1996 0F752400 THRU 0K001505

  • №
    Артикул
    Название
  • 1
    860246A15 EXHAUST MANIFOLD ASSEMBLY
    EXHAUST MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG
    PLUG
  • 3
    22-36382 PIPE PLUG
    PIPE PLUG
  • 4
    27-33395 GASKET
    GASKET
  • 5
    10-53728 SCREW (4-5/8")
    SCREW (4-5/8")
  • 6
    27-863726 GASKET
    (USE WITH RISER KITS)
    GASKET
    (USE WITH RISER KITS)
  • 7
    27-863724 GASKET
    (STANDARD COOLING)
    GASKET
    (STANDARD COOLING)
  • 8
    27-8637251 GASKET
    (CLOSED COOLING)
    GASKET
    (CLOSED COOLING)
  • 9
    22-862210A01 DRAIN ELBOW
    DRAIN ELBOW
  • 10
    22-8M0119211 DRAIN PLUG
    DRAIN PLUG
  • 11
    25-32509 QUAD RING
    QUAD RING
  • 12
    816900A5 EXHAUST ELBOW ASSEMBLY
    (PORT)
    EXHAUST ELBOW ASSEMBLY
    (PORT)
  • 12
    816900A9 EXHAUST ELBOW ASSEMBLY
    (STARBOARD)
    EXHAUST ELBOW ASSEMBLY
    (STARBOARD)
  • 13
    54-73668 J-CLIP
    (PORT)
    J-CLIP
    (PORT)
  • 14
    10-98534 SCREW (2-1/4")
    SCREW (2-1/4")
  • 14
    10-865982005 SCREW (1")
    SCREW (1")
  • 15
    19-805727001 RUBBER CAP
    RUBBER CAP
  • 16
    54-815504220 CLAMP
    CLAMP
  • -
    93320A14 RISER EXTENSION KIT (3")
    EACH KIT CONTAINS 2 RISERS.
    RISER EXTENSION KIT (3")
    EACH KIT CONTAINS 2 RISERS.
  • -
    807477A5 RISER EXTENSION KIT (6")
    EACH KIT CONTAINS 2 RISERS.
    RISER EXTENSION KIT (6")
    EACH KIT CONTAINS 2 RISERS.
  • -
    27-806871A96 GASKET SET-OVERHAUL
    CONTENTS INDICATED BY FOOTNOTE 20.
    GASKET SET-OVERHAUL
    CONTENTS INDICATED BY FOOTNOTE 20.
