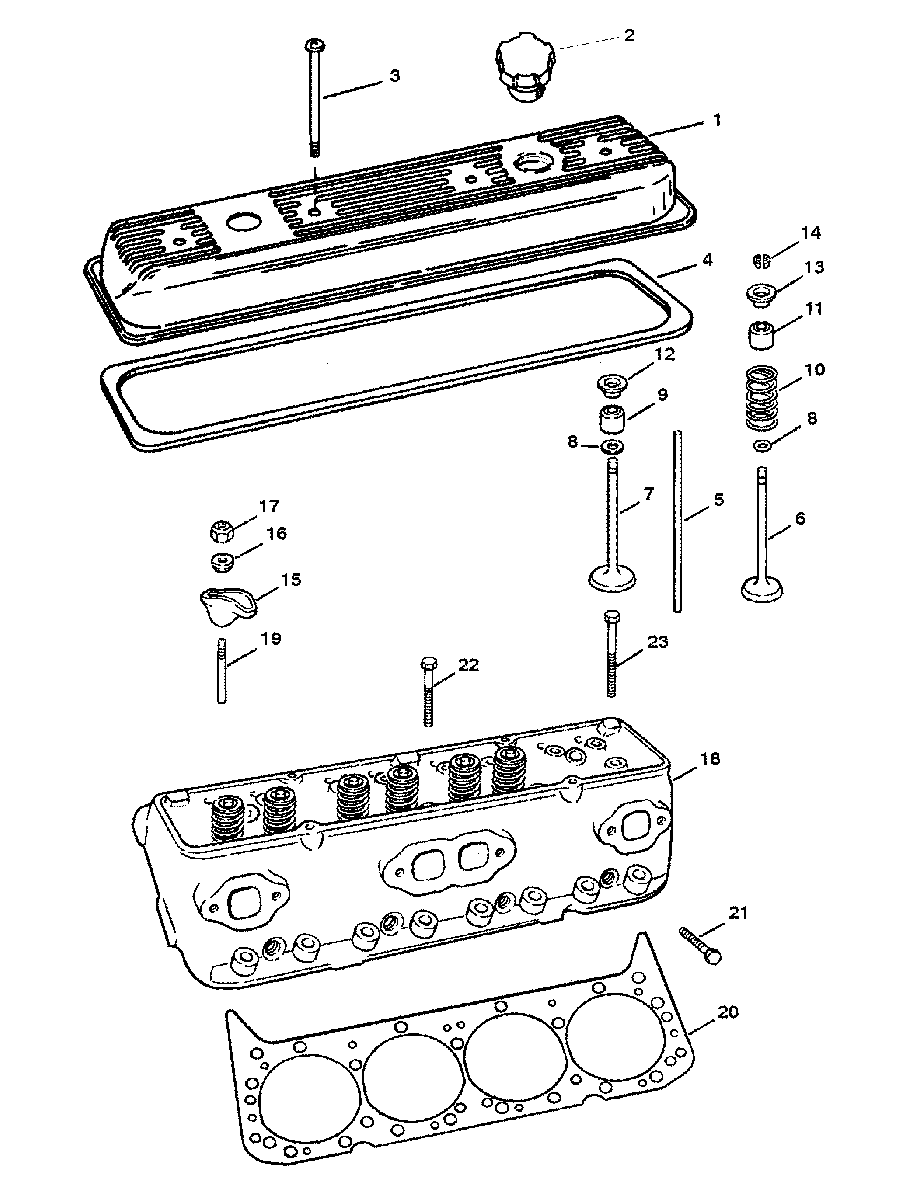

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 5.7LX EFI (4 BBL.-TBI) GM 350 V-8 1996 0F752400 THRU 0K001505

  • №
    Артикул
    Название
  • 1
    809995 ROCKER COVER
    ROCKER COVER
  • 2
    36-18710002 CAP
    CAP
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET
    GASKET
  • 5
    99948 PUSH ROD
    (USE WITH FLAT LIFTER)
    PUSH ROD
    (USE WITH FLAT LIFTER)
  • 5
    173391 PUSH ROD
    (USE WITH ROLLER LIFTER)
    PUSH ROD
    (USE WITH ROLLER LIFTER)
  • 6
    850095 EXHAUST VALVE
    (STANDARD)
    EXHAUST VALVE
    (STANDARD)
  • 6
    850095 EXHAUST VALVE
    (.015 O.S.)
    EXHAUST VALVE
    (.015 O.S.)
  • 7
    97661 INLET VALVE
    (STANDARD)
    INLET VALVE
    (STANDARD)
  • 7
    97662 INLET VALVE
    (.015 O.S.)
    INLET VALVE
    (.015 O.S.)
  • 8
    26-34217 SEAL
    SEAL
  • 9
    26-8M0050563 SEAL
    (INTAKE)
    SEAL
    (INTAKE)
  • 9
    26-852936 SEAL
    (EXHAUST)
    SEAL
    (EXHAUST)
  • 10
    24-48347 SPRING
    SPRING
  • 11
    34518001 SHIELD
    SHIELD
  • 12
    48348 CAP
    (INTAKE)
    CAP
    (INTAKE)
  • 13
    11965 ROTATOR
    (EXHAUST)
    ROTATOR
    (EXHAUST)
  • 14
    28-547971 KEY
    KEY
  • 15
    35329 ROCKER ARM
    ROCKER ARM
  • 16
    35331 BALL UNIT
    BALL UNIT
  • 17
    11-34516 NUT
    NUT
  • 18
    938-883490R1 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 19
    16-34522 STUD
    (.003 O.S.)
    STUD
    (.003 O.S.)
  • 19
    16-34521 STUD
    (.013 O.S.)
    STUD
    (.013 O.S.)
  • 20
    27-75611001 GASKET
    GASKET
  • 21
    10-11968 BOLT (1-3/4")
    BOLT (1-3/4")
  • 22
    10-119671 BOLT (3")
    BOLT (3")
  • 23
    10-11966 BOLT (3-3/4")
    BOLT (3-3/4")
  • -
    27-806871A96 GASKET SET-OVERHAUL
    CONTENTS INDICATED BY FOOTNOTE 20.
    GASKET SET-OVERHAUL
    CONTENTS INDICATED BY FOOTNOTE 20.
