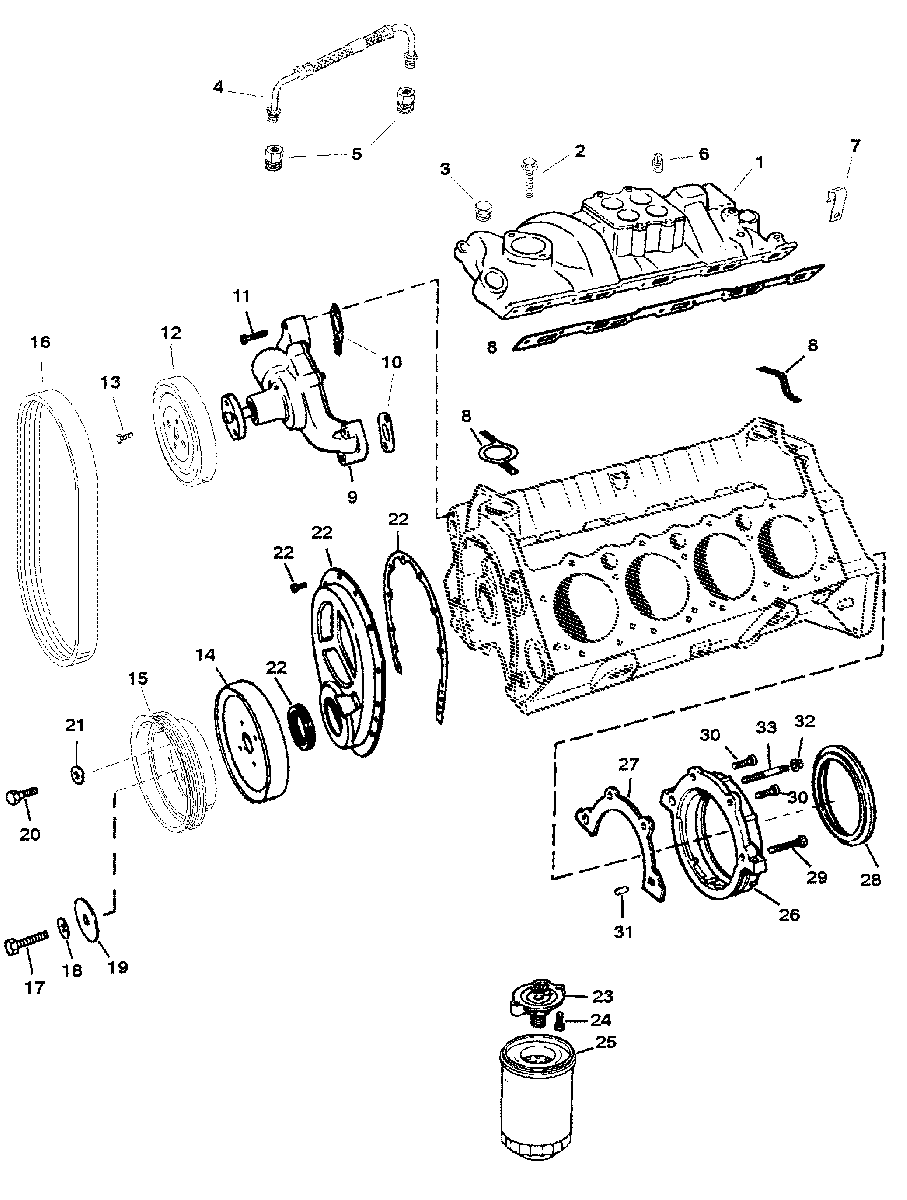

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7LX BRAVO EFI (GEN+) GM 350 V-8 1997 0K001509 AND UP

  • №
    Артикул
    Название
  • 1
    807289A1 MANIFOLD-INTAKE
    MANIFOLD-INTAKE
  • 2
    10-808010 BOLT (5/16-18 X 1-3/8 IN.)
    BOLT (5/16-18 X 1-3/8 IN.)
  • 3
    22-860075 PLUG-PIPE (1/2 IN.)
    PLUG-PIPE (1/2 IN.)
  • 4
    32-807727A2 TUBE-VENT
    TUBE-VENT
  • 5
    22-805563 FITTING
    FITTING
  • 6
    22-12524 PLUG-INTAKE (3/8 IN.)
    PLUG-INTAKE (3/8 IN.)
  • 7
    54-73668 J-CLIP
    J-CLIP
  • 8
    27-807473A1 GASKET SET-INTAKE MANIFOLD
    GASKET SET-INTAKE MANIFOLD
  • 9
    46-8M0113734 PUMP ASSEMBLY-WATER
    PUMP ASSEMBLY-WATER
  • 10
    27-34897 GASKET-WATER PUMP
    GASKET-WATER PUMP
  • 11
    10-32132 SCREW (3/8-16 X 1-3/4 IN.)
    SCREW (3/8-16 X 1-3/4 IN.)
  • 11
    10-47688 SCREW (3/8-16 X 2-3/4 IN.)
    SCREW (3/8-16 X 2-3/4 IN.)
  • 11
    16-8M0076418 STUD
    STUD
  • 12
    807729T PULLEY-WATER PUMP
    PULLEY-WATER PUMP
  • 13
    10-47277 SCREW (5/16-24 X 3/4 IN.)
    SCREW (5/16-24 X 3/4 IN.)
  • 14
    852946001 HARMONIC BALANCER
    HARMONIC BALANCER
  • 15
    807730T PULLEY-CRANKSHAFT
    PULLEY-CRANKSHAFT
  • 16
    57-861758A1 BELT-SERPENTINE
    (ALPHA)
    BELT-SERPENTINE
    (ALPHA)
  • 16
    57-861757A1 BELT-SERPENTINE
    (BRAVO)
    BELT-SERPENTINE
    (BRAVO)
  • 17
    10-8M2021674 BOLT (7/16-20 X 2-1/2 IN.)
    BOLT (7/16-20 X 2-1/2 IN.)
  • 18
    13-39131 LOCKWASHER
    LOCKWASHER
  • 19
    12-35332001 WASHER
    WASHER
  • 20
    10-34352 BOLT (3/8-24 X 7/8 IN.)
    BOLT (3/8-24 X 7/8 IN.)
  • 21
    12-34714 WASHER
    WASHER
  • 22
    835005 TIMING COVER ASSEMBLY
    (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.)
    TIMING COVER ASSEMBLY
    (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.)
  • 23
    71920 VALVE-FILTER
    W/O REMOTE OIL FILTER
    VALVE-FILTER
    W/O REMOTE OIL FILTER
  • 24
    10-54786 SCREW (5/16-18 X 1-1/4 IN.)
    W/O REMOTE OIL FILTER
    SCREW (5/16-18 X 1-1/4 IN.)
    W/O REMOTE OIL FILTER
  • 25
    35-866340Q03 FILTER-OIL
    W/O REMOTE OIL FILTER
    FILTER-OIL
    W/O REMOTE OIL FILTER
  • 26
    852940 RETAINER-OIL SEAL (REAR)
    RETAINER-OIL SEAL (REAR)
  • 27
    27-881715 GASKET
    GASKET
  • 28
    26-852941 SEAL-OIL (REAR)
    SEAL-OIL (REAR)
  • 29
    10-8M0064241 BOLT (1/4-20 X 1-3/4 IN.)
    BOLT (1/4-20 X 1-3/4 IN.)
  • 30
    10-14242 BOLT (1/4-20 X 7/8 IN.)
    BOLT (1/4-20 X 7/8 IN.)
  • 31
    17-14263 PIN-DOWEL
    PIN-DOWEL
  • 32
    11-8M0098315 NUT (1/4-20)
    NUT (1/4-20)
  • 33
    16-14827 STUD
    STUD
  • -
    27-75611A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
