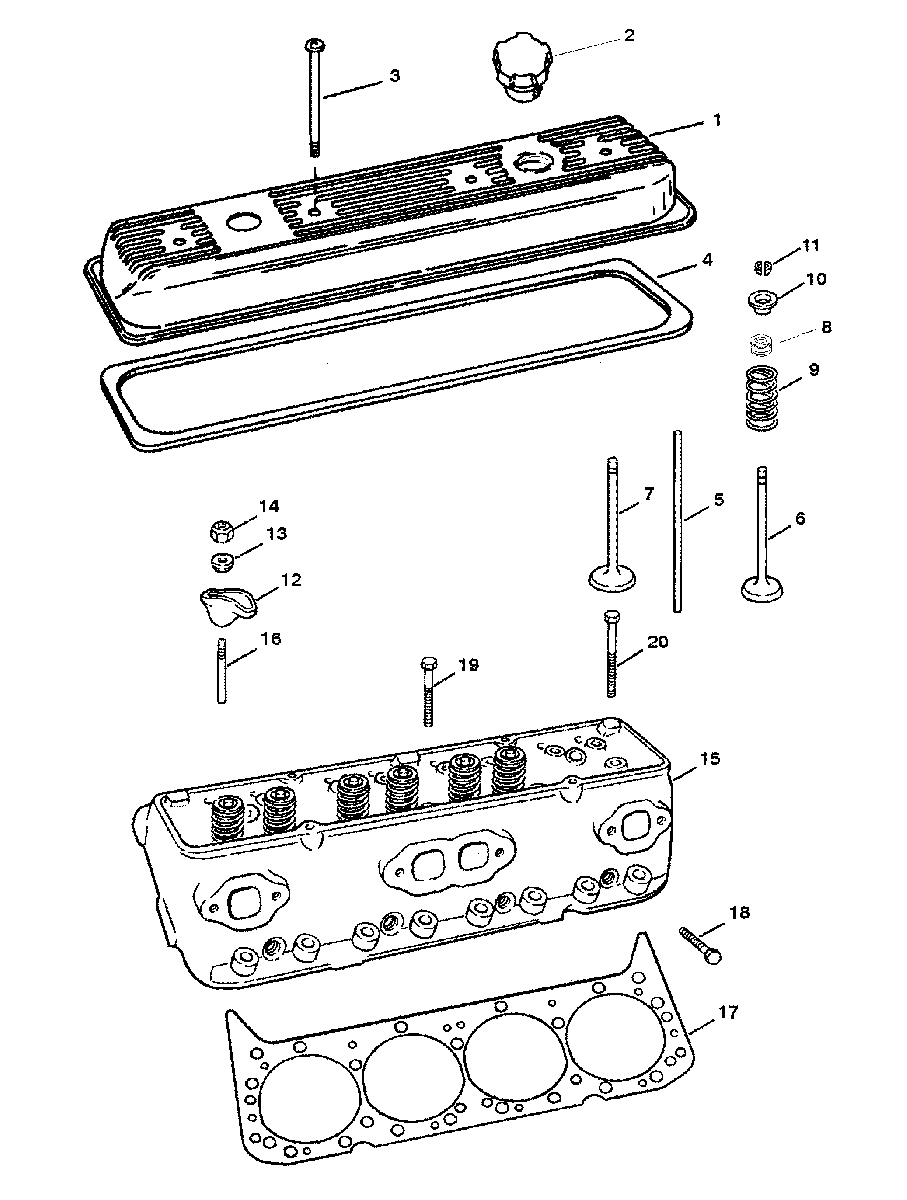

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 5.7LX BRAVO EFI (GEN+) GM 350 V-8 1997 0K001509 AND UP

  • №
    Артикул
    Название
  • 1
    809995 COVER-ROCKER (W/ OIL FILL HOLE)
    COVER-ROCKER (W/ OIL FILL HOLE)
  • 1
    809996 COVER-ROCKER (W/O OIL FILL HOLE)
    COVER-ROCKER (W/O OIL FILL HOLE)
  • 2
    36-18710002 CAP-OIL FILL
    CAP-OIL FILL
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET-ROCKER COVER
    GASKET-ROCKER COVER
  • 5
    173391 PUSH ROD
    PUSH ROD
  • 6
    8243171 VALVE-EXHAUST
    (STANDARD)
    VALVE-EXHAUST
    (STANDARD)
  • 6
    8243181 VALVE-EXHAUST
    (.5MM O.S.)
    VALVE-EXHAUST
    (.5MM O.S.)
  • 7
    809992 VALVE-INTAKE
    (STANDARD)
    VALVE-INTAKE
    (STANDARD)
  • 8
    26-8M0050563 SEAL-VALVE
    (INTAKE AND EXHAUST)
    SEAL-VALVE
    (INTAKE AND EXHAUST)
  • 9
    24-483471 SPRING
    SPRING
  • 10
    483481 CAP
    CAP
  • 11
    28-547971 KEY
    KEY
  • 12
    35329 ARM KIT-ROCKER
    ARM KIT-ROCKER
  • 13
    35331 BALL UNIT
    BALL UNIT
  • 14
    11-34516 NUT
    NUT
  • 15
    97181 HEAD ASSEMBLY-CYLINDER
    HEAD ASSEMBLY-CYLINDER
  • 16
    16-34522 STUD (.003 O.S.)
    STUD (.003 O.S.)
  • 16
    16-34521 STUD (.013 O.S.)
    STUD (.013 O.S.)
  • 17
    27-75611001 GASKET
    GASKET
  • 18
    10-11968 BOLT (7/16-14 X 1-3/4 IN.)
    BOLT (7/16-14 X 1-3/4 IN.)
  • 19
    10-119671 BOLT (7/16-14 X 3 IN.)
    BOLT (7/16-14 X 3 IN.)
  • 20
    10-11966 BOLT (7/16-14 X 3-3/4 IN.)
    BOLT (7/16-14 X 3-3/4 IN.)
  • -
    27-75611A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
