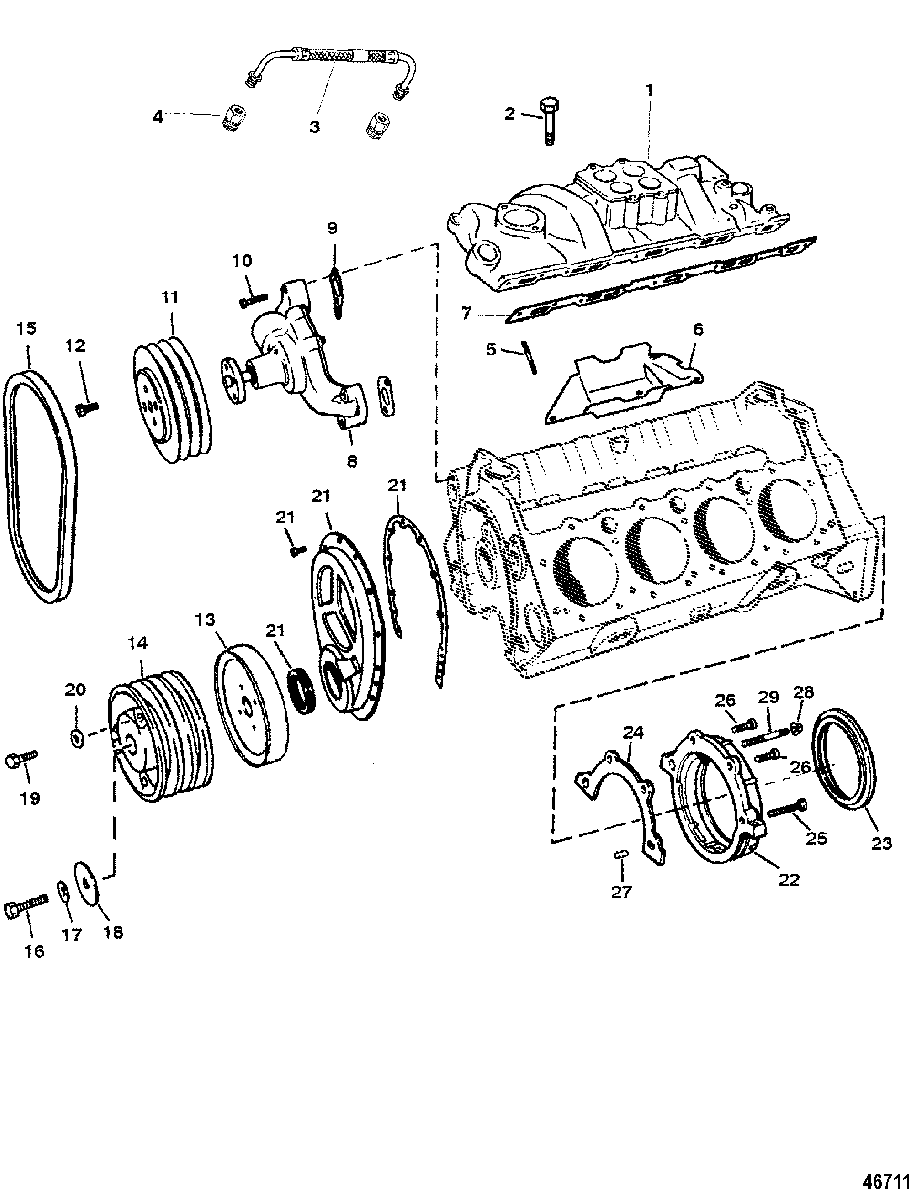

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7LX BRAVO EFI (GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508

  • №
    Артикул
    Название
  • 1
    807289A1 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 2
    10-881892 SCREW, (.312-18 x 1.750)
    SCREW, (.312-18 x 1.750)
  • 3
    32-807727A2 TUBE ASSEMBLY, Exhaust
    TUBE ASSEMBLY, Exhaust
  • 4
    22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF to .50 Inch Inv. Flare)
    CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF to .50 Inch Inv. Flare)
  • 5
    NSS NOT SOLD SEPARATE (GM#3959544)
    NOT SOLD SEPARATE (GM#3959544)
  • 6
    72647 GUARD
    GUARD
  • 7
    27-807473A1 GASKET SET
    GASKET SET
  • 8
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 9
    27-34897 GASKET
    GASKET
  • 10
    10-32132 SCREW, (.375-16 x 1.750) (1-3/4")
    SCREW, (.375-16 x 1.750) (1-3/4")
  • 10
    10-47688 SCREW, (.375-16 x 2.750) (2-3/4")
    SCREW, (.375-16 x 2.750) (2-3/4")
  • 10
    10-52200 SCREW, (1.625 In.) (1-1/2")
    SCREW, (1.625 In.) (1-1/2")
  • 11
    19692T01 PULLEY, (7 In. Diameter) (7" DIA.)
    PULLEY, (7 In. Diameter) (7" DIA.)
  • 12
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 13
    809892T BALANCER, Harmonic
    BALANCER, Harmonic
  • 14
    90081A1 PULLEY
    PULLEY
  • 15
    57-48120Q1 V BELT, (46 Inch)
    V BELT, (46 Inch)
  • 16
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 17
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 18
    12-35332001 WASHER
    WASHER
  • 19
    10-53833 BOLT, (.375-24 x 2.00)
    BOLT, (.375-24 x 2.00)
  • 20
    12-34714 WASHER
    WASHER
  • 21
    835005 COVER ASSEMBLY, Timing
    (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY)
    COVER ASSEMBLY, Timing
    (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY)
  • 22
    14239 RETAINER, Oil Seal
    RETAINER, Oil Seal
  • 23
    26-8M0077606 SEAL, Oil
    SEAL, Oil
  • 24
    27-881715 GASKET
    GASKET
  • 25
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 26
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 27
    17-14263 PIN, Dowel, Dowel
    PIN, Dowel, Dowel
  • 28
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 29
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • -
    27-75611A96 GASKET SET
    GASKET SET
