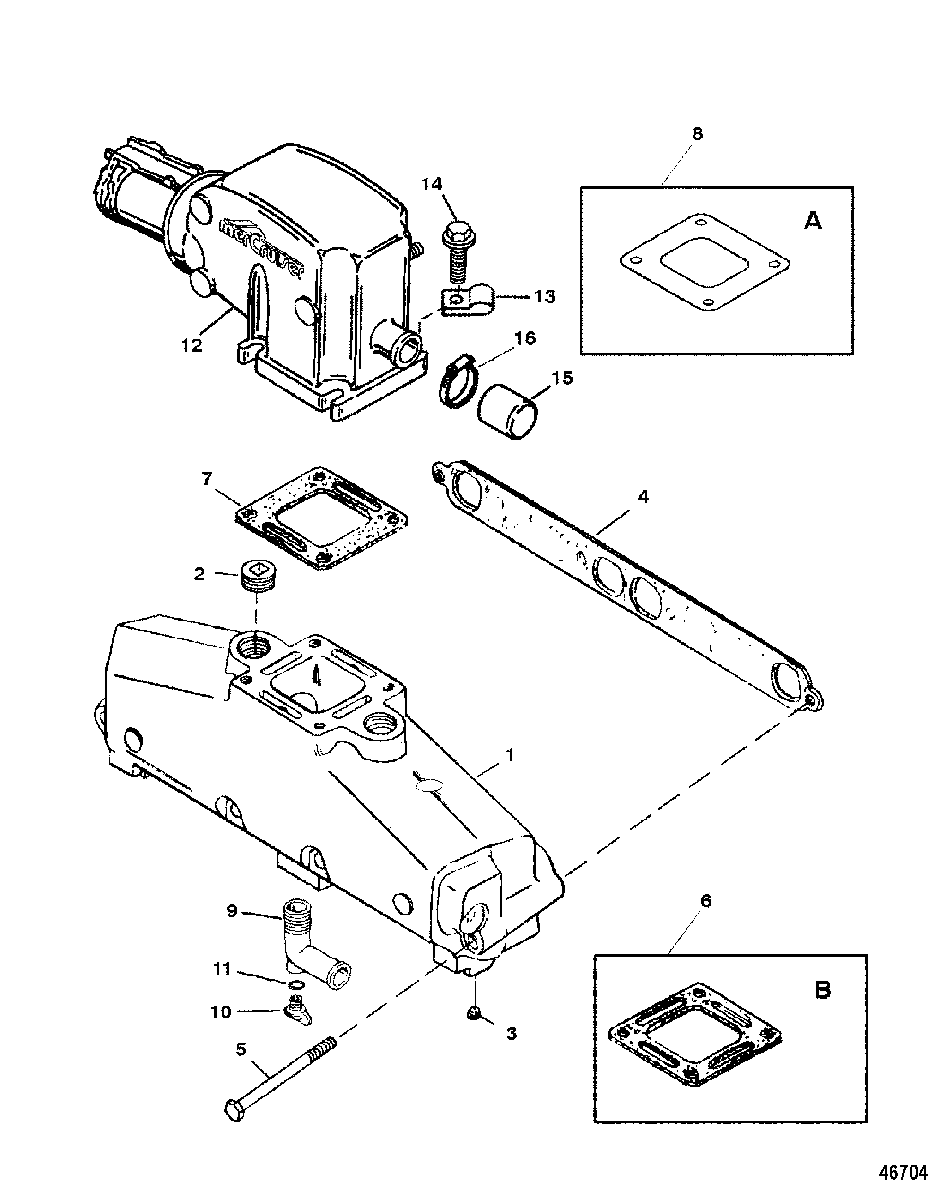

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 5.7LX BRAVO EFI (GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    (PORT)
    MANIFOLD ASSEMBLY, Exhaust
    (PORT)
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    (STARBOARD)
    MANIFOLD ASSEMBLY, Exhaust
    (STARBOARD)
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    22-36382 FITTING, (.250-18 x .62) Brass
    FITTING, (.250-18 x .62) Brass
  • 4
    27-33395 GASKET
    GASKET
  • 5
    10-53728 SCREW, (.375-16 x 4.75) (4-5/8")
    SCREW, (.375-16 x 4.75) (4-5/8")
  • 6
    27-863726 GASKET
    (USE WITH RISER KITS)
    GASKET
    (USE WITH RISER KITS)
  • 7
    27-863724 GASKET
    (STANDARD COOLING)
    GASKET
    (STANDARD COOLING)
  • 8
    27-8637251 GASKET
    (CLOSED COOLING)
    GASKET
    (CLOSED COOLING)
  • 9
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 10
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 11
    25-32509 QUAD RING
    QUAD RING
  • 12
    816900A5 ELBOW ASSEMBLY, Exhaust
    (PORT)
    ELBOW ASSEMBLY, Exhaust
    (PORT)
  • 12
    816900A9 ELBOW ASSEMBLY
    (STARBOARD)
    ELBOW ASSEMBLY
    (STARBOARD)
  • 13
    54-73668 J-CLIP
    (PORT)
    J-CLIP
    (PORT)
  • 14
    10-98534 SCREW, (.375-16 x 2.30) (2-1/4")
    SCREW, (.375-16 x 2.30) (2-1/4")
  • 14
    10-865982005 SCREW, (.375-16 x 1.00) (1")
    SCREW, (.375-16 x 1.00) (1")
  • 15
    19-805727001 CAP, Rubber
    CAP, Rubber
  • 16
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    93320A14 RISER KIT, Exhaust (3.00 Inch) (3")
    EACH KIT CONTAINS 2 RISERS
    RISER KIT, Exhaust (3.00 Inch) (3")
    EACH KIT CONTAINS 2 RISERS
  • -
    807477A5 RISER KIT, Exhaust (6.00 Inch) (6")
    EACH KIT CONTAINS 2 RISERS
    RISER KIT, Exhaust (6.00 Inch) (6")
    EACH KIT CONTAINS 2 RISERS
  • -
    27-75611A96 GASKET SET
    GASKET SET
