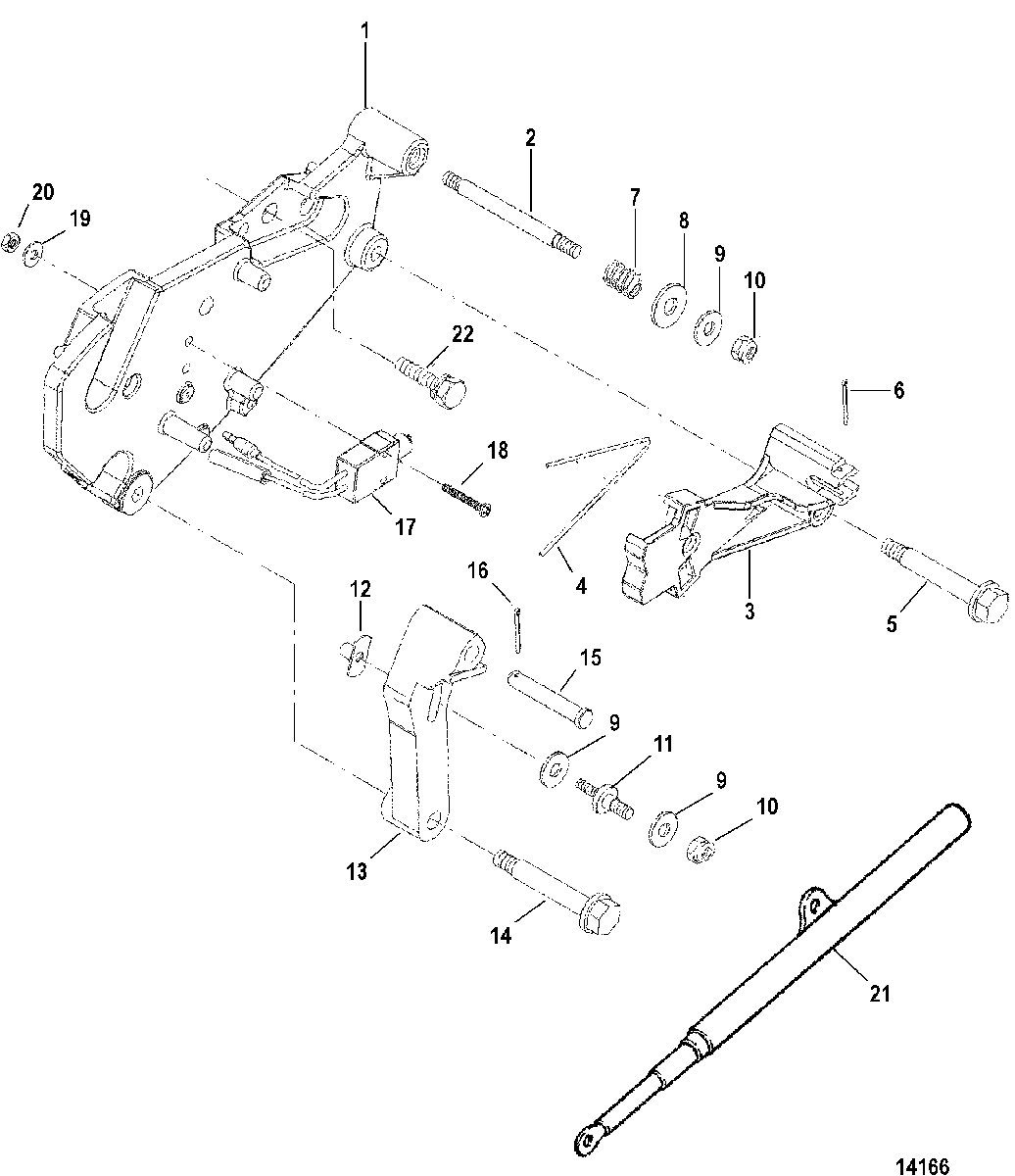

Shift Bracket(Alpha Engines) для Mercruiser - 5.7L EFI GM 350 V-8 1999-2001 0L325977 THRU 0M299999

  • №
    Артикул
    Название
  • 1
    807962A15 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 2
    865149A02 STUD, (.250 x 2.870)
    STUD, (.250 x 2.870)
  • 3
    865433A02 LEVER ASSEMBLY, Actuating
    LEVER ASSEMBLY, Actuating
  • 4
    24-862850 SPRING
    SPRING
  • 5
    10-865148 SCREW, (.312-18 x 1.843), Shoulder
    SCREW, (.312-18 x 1.843), Shoulder
  • 6
    18-328571 COTTER PIN
    COTTER PIN
  • 7
    24-98880 SPRING
    SPRING
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 10
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 11
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 12
    11-63341 TEE NUT
    TEE NUT
  • 13
    13898T06 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 14
    10-865148 SCREW, (.312-18 x 1.843), Shoulder
    SCREW, (.312-18 x 1.843), Shoulder
  • 15
    17-814001 PIN, Clevis
    PIN, Clevis
  • 16
    18-210711 COTTER PIN
    COTTER PIN
  • 17
    87-8M0052936 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 18
    10-860077 SCREW, (#6-32 x 1.00)
    SCREW, (#6-32 x 1.00)
  • 19
    12-11303 WASHER
    WASHER
  • 20
    11-F1669 NUT, (#6-32)
    NUT, (#6-32)
  • 21
    813995A1 GUIDE ASSEMBLY, Spring
    GUIDE ASSEMBLY, Spring
  • 22
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
