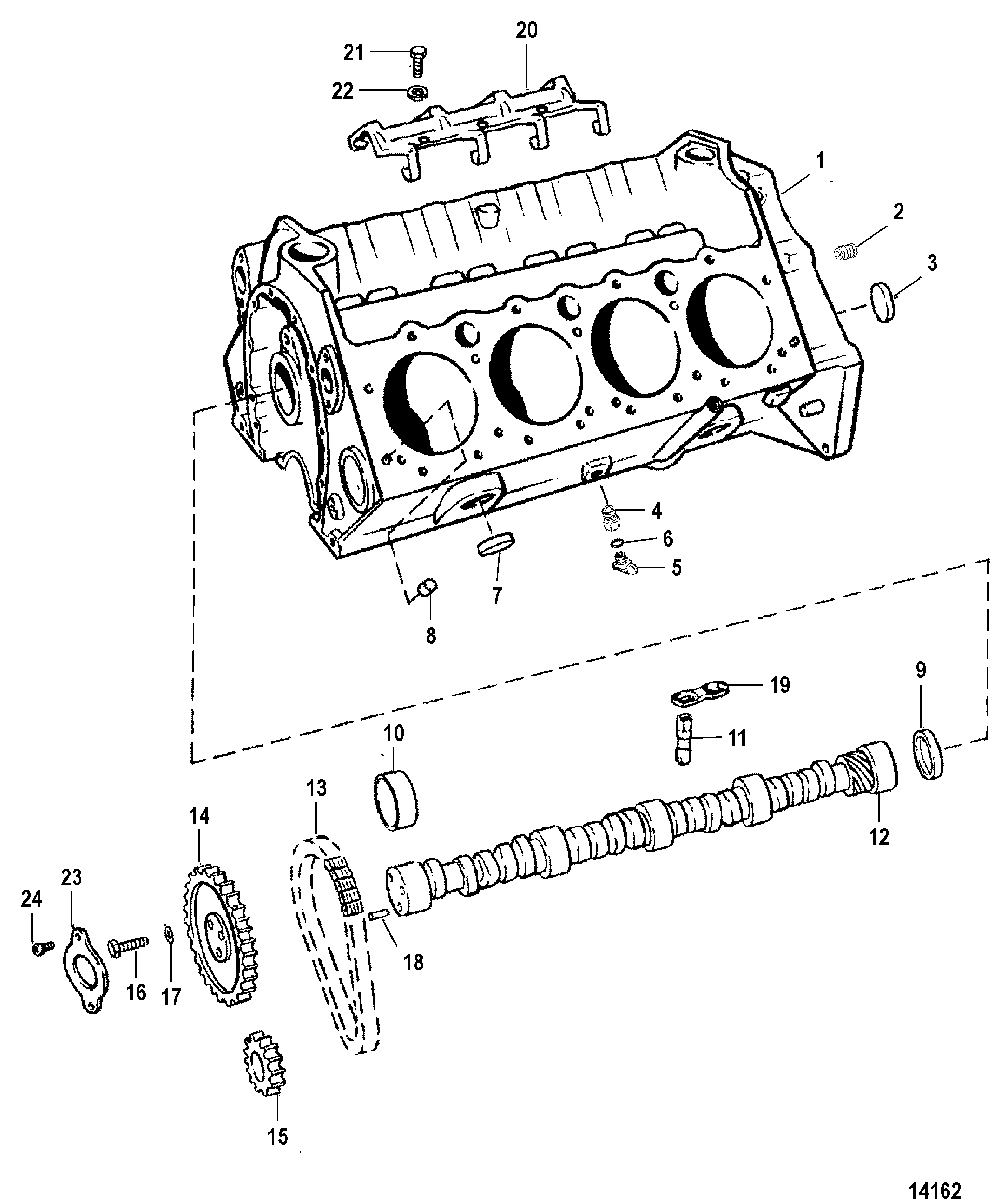

Cylinder Block And Camshaft для Mercruiser - 5.7L EFI GM 350 V-8 1999-2001 0L325977 THRU 0M299999

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block Assembly
    (5.0L) (Order Long Block 861447A1)
    NOT SOLD SEPARATE, Cylinder Block Assembly
    (5.0L) (Order Long Block 861447A1)
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block Assembly
    (5.7L) (Order Long Block 863661A1)
    NOT SOLD SEPARATE, Cylinder Block Assembly
    (5.7L) (Order Long Block 863661A1)
  • 2
    22-32561 PLUG, (.250-18 x .41)
    PLUG, (.250-18 x .41)
  • 3
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 4
    22-860088 BUSHING
    BUSHING
  • 5
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 6
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 7
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 8
    17-35465 PIN, Dowel (.312), Dowel (.3125 Inch)
    PIN, Dowel (.312), Dowel (.3125 Inch)
  • 9
    22-72640 PLUG, Rear Camshaft
    PLUG, Rear Camshaft
  • 10
    23-85674 BEARING SET
    BEARING SET
  • 11
    17340T1 LIFTER, Roller
    LIFTER, Roller
  • 12
    431-811658 CAMSHAFT
    CAMSHAFT
  • 13
    17161T CHAIN, Timing
    CHAIN, Timing
  • 14
    43-8116591 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 15
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 16
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 17
    12-848136 WASHER, (.328 x .680 x .190)
    WASHER, (.328 x .680 x .190)
  • 18
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 19
    17341T GUIDE, Lifter
    GUIDE, Lifter
  • 20
    811662 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 21
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 22
    12-811664 WASHER, (.3125 Inch) (.3125 Inch)
    WASHER, (.3125 Inch) (.3125 Inch)
  • 23
    845941 RETAINER
    RETAINER
  • 24
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • -
    8M0088396 MARINE LONG BLOCK ENGINE
    (5.0L)
    MARINE LONG BLOCK ENGINE
    (5.0L)
  • -
    8M0088397 LONGBLOCK ASSEMBLY
    (5.7L)
    LONGBLOCK ASSEMBLY
    (5.7L)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable
    RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce), Where Applicable
    SEALING COMPOUND, (16 Ounce), Where Applicable
  • -
    27-861246A05 GASKET SET
    GASKET SET
