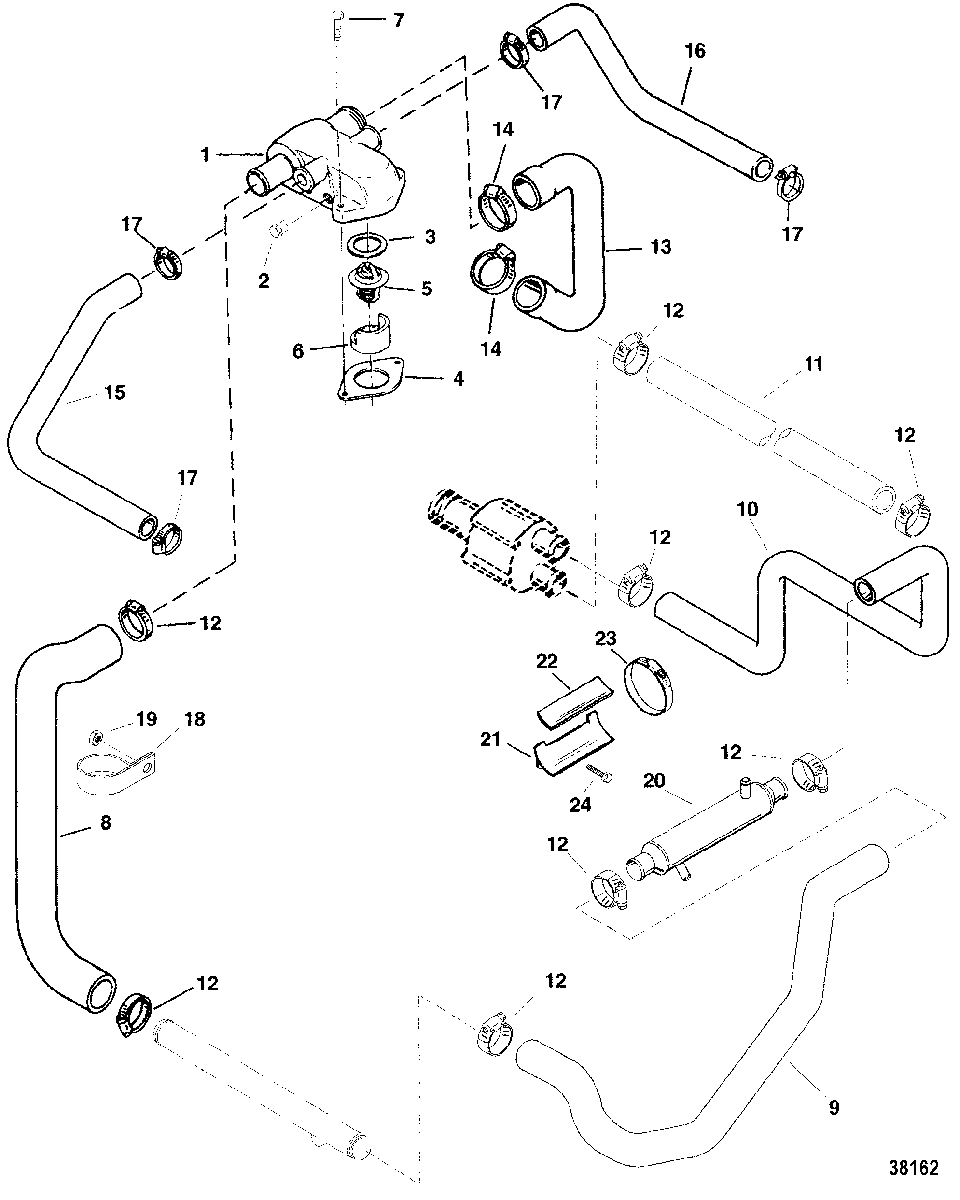

STANDARD COOLING SYSTEM(BRAVO ENGINES) для Mercruiser - 5.7L EFI (2 BBL.-TBI) GM 350 V-8 1997 0K001506 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    806235A1 HOUSING ASSEMBLY, Thermostat
    (5.7L/LX BRAVO)
    HOUSING ASSEMBLY, Thermostat
    (5.7L/LX BRAVO)
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 8
    32-808033 HOSE, Molded
    HOSE, Molded
  • 9
    32-8600891 HOSE, Molded
    HOSE, Molded
  • 10
    32-8080441 HOSE, Molded
    HOSE, Molded
  • 11
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    HOSE, (96.00 Inches Bulk)
  • 12
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 13
    32-861590A05 HOSE, Molded
    HOSE, Molded
  • 14
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 15
    32-860144 HOSE, Thermostat Housing To Port Exhaust Manifold
    HOSE, Thermostat Housing To Port Exhaust Manifold
  • 16
    32-807697 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 17
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 18
    54-47715 CLIP
    CLIP
  • 19
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 20
    8M0125855 COOLER, Power Steering Oil
    COOLER, Power Steering Oil
  • 21
    805546A2 BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 22
    772233 PAD
    PAD
  • 23
    54-815504224 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 24
    10-816585 SCREW, (.375-18 x .875)
    SCREW, (.375-18 x .875)
  • -
    27-806871A96 GASKET SET, Overhaul
    GASKET SET, Overhaul
