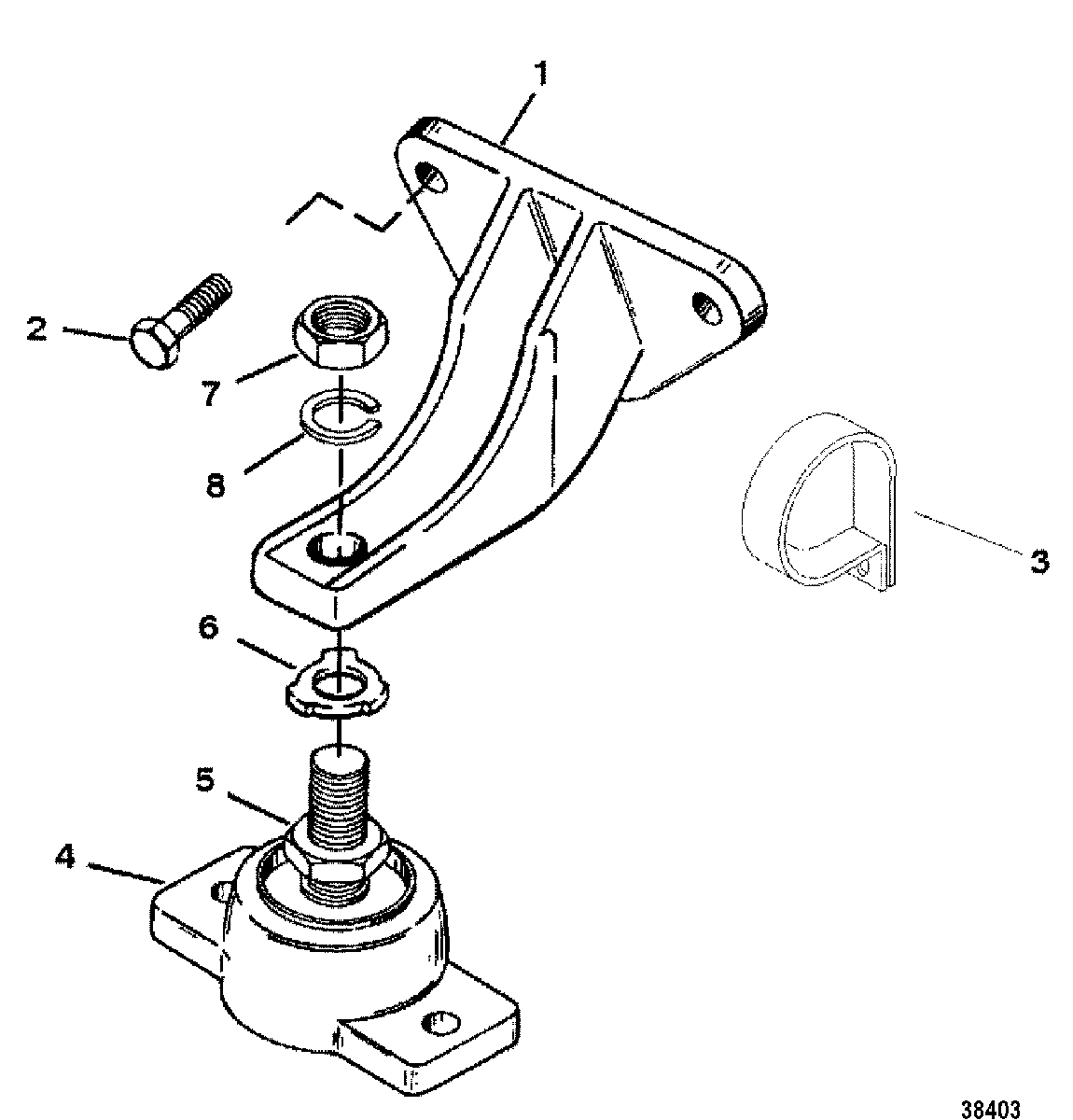

ENGINE MOUNTING для Mercruiser - 5.7L EFI (2 BBL.-TBI) GM 350 V-8 1997 0K001506 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET
    BRACKET
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 2
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • 2
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 3
    54-816398 CLIP
    CLIP
  • 4
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 5
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 6
    14-12657 TAB WASHER
    TAB WASHER
  • 7
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 8
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
