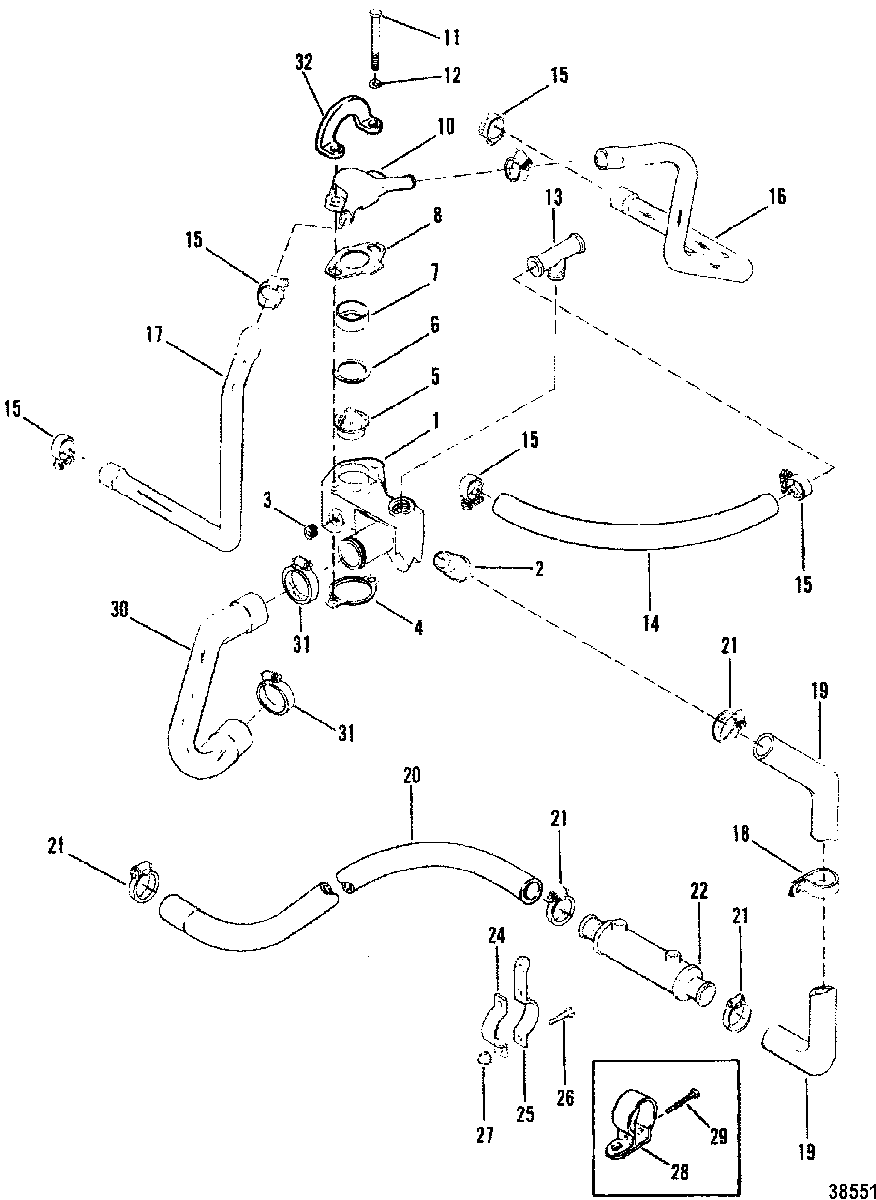

STANDARD COOLING SYSTEM(DESIGN I) для Mercruiser - 5.0LX (4 BBL.) GM 305 V-8 1988-1995 0B773740 THRU 0F600999
-
№АртикулНазвание
-
187290A4 HOUSING ASSEMBLY, ThermostatHOUSING ASSEMBLY, Thermostat
-
223-47511 SLEEVESLEEVE
-
322-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
427-530451 GASKETGASKET
-
58M0089715 THERMOSTAT (140 DEGREES)THERMOSTAT (140 DEGREES)
-
627-47510 GASKETGASKET
-
723-47508T SLEEVESLEEVE
-
827-41812 GASKETGASKET
-
1047441A1 COVERCOVER
-
1110-48130 SCREW, (.375-16 x 4.500)SCREW, (.375-16 x 4.500)
-
1213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1322-98477A2 VALVE ASSEMBLYVALVE ASSEMBLY
-
1432-8M0062614 HOSE, (48.00 Inches Bulk)HOSE, (48.00 Inches Bulk)
-
1554-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
1632-160211 HOSE (PORT)HOSE (PORT)
-
1732-871171 HOSE (STARBOARD)HOSE (STARBOARD)
-
1854-47715 CLIPCLIP
-
1932-88794 HOSEHOSE
-
2032-96246A4 HOSEHOSE
-
2154-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
2299356A2 COOLER ASSEMBLYCOOLER ASSEMBLY
-
2456328A1 BRACKET (SHORT)
2 PIECE BRACKETBRACKET (SHORT)
2 PIECE BRACKET -
2563820F3 BRACKET (LONG)
2 PIECE BRACKETBRACKET (LONG)
2 PIECE BRACKET -
2610-60300 SCREW, (.250-28 x .750)
2 PIECE BRACKETSCREW, (.250-28 x .750)
2 PIECE BRACKET -
2711-30506 NUT, (.250-28)
2 PIECE BRACKETNUT, (.250-28)
2 PIECE BRACKET -
2865970T1 BRACKET
1 PIECE BRACKETBRACKET
1 PIECE BRACKET -
2910-41408 SCREW, (#10-32 x 1.50)
1 PIECE BRACKETSCREW, (#10-32 x 1.50)
1 PIECE BRACKET -
3032-861590A05 HOSEHOSE
-
3154-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
3212552 LIFTING EYELIFTING EYE
