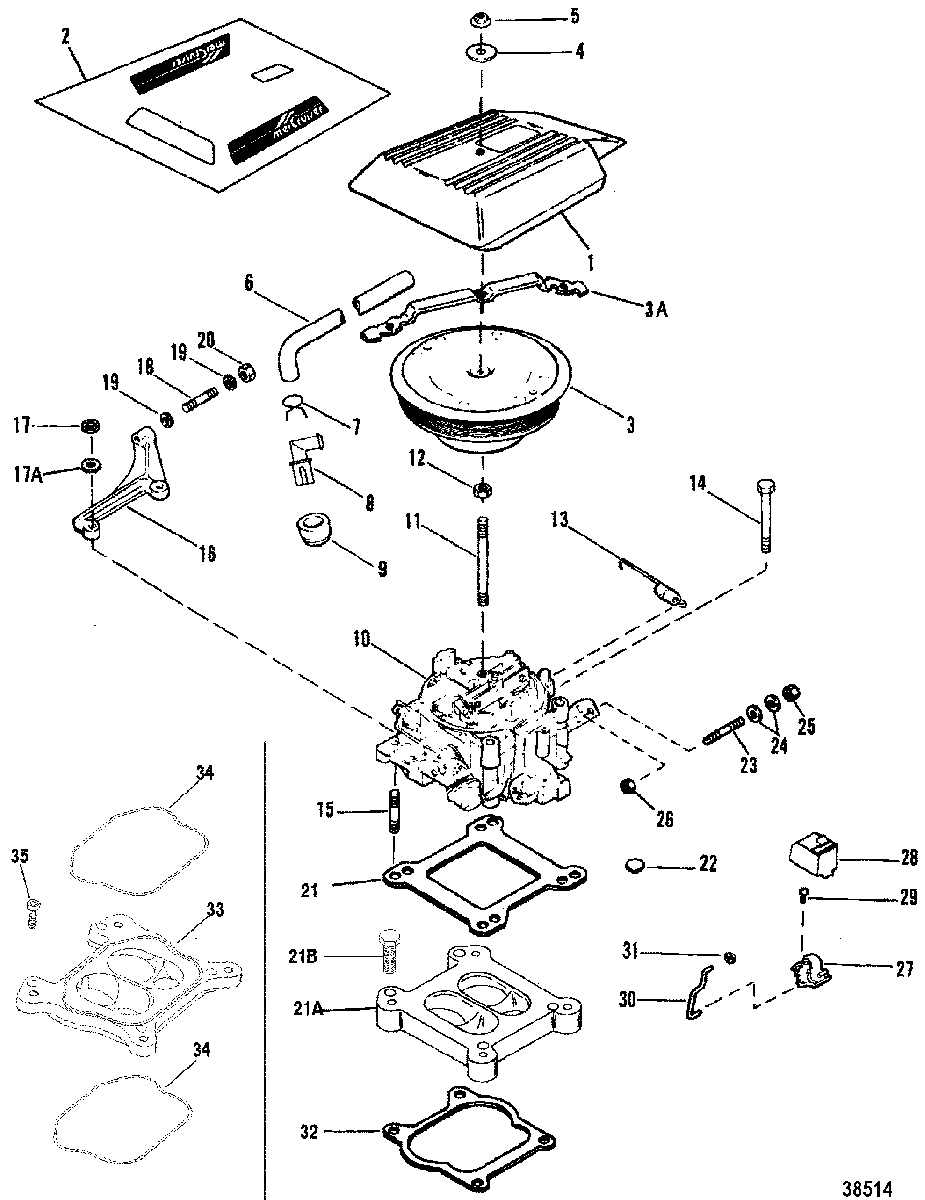

CARBURETOR/THROTTLE LINKAGE(WEBER - 4 BARREL) для Mercruiser - 5.0LX (4 BBL.) GM 305 V-8 1988-1995 0B773740 THRU 0F600999
-
№АртикулНазвание
-
118484A3 COVERCOVER
-
237-812776A4 DECAL SET
(5.0LX ALPHA)DECAL SET
(5.0LX ALPHA) -
237-812776A5 DECAL SET
(5.7L ALPHA)DECAL SET
(5.7L ALPHA) -
237-812776A25 DECAL SET
(5.7L BRAVO)DECAL SET
(5.7L BRAVO) -
237-812776A26 DECAL SET
(350 MAGNUM)DECAL SET
(350 MAGNUM) -
3805298A1 FLAME ARRESTORFLAME ARRESTOR
-
3A805314 RETAINER, Breather HoseRETAINER, Breather Hose
-
412-86400 WASHERWASHER
-
511-826709109 NUT, (.250-28)NUT, (.250-28)
-
632-8M0086022 HOSE, BreatherHOSE, Breather
-
754-53101 CLAMPCLAMP
-
897850T ELBOW, 90 Degree, BreatherELBOW, 90 Degree, Breather
-
923-8M0071559 GROMMETGROMMET
-
103310-806761A1 CARBURETOR
(5.7L ALPHA) SN# 0F000455 THRU 0F273497CARBURETOR
(5.7L ALPHA) SN# 0F000455 THRU 0F273497 -
103310-806761A3 CARBURETOR
(5.7L ALPHA) SN# 0F273498 & UpCARBURETOR
(5.7L ALPHA) SN# 0F273498 & Up -
103310-806545A1 CARBURETOR
(5.7L ALPHA) (SWISS EMISSIONSCARBURETOR
(5.7L ALPHA) (SWISS EMISSIONS -
103310-807262R02 CARBURETOR
(5.7L BRAVO/ 350 MAG) SN# 0D617328 & UpCARBURETOR
(5.7L BRAVO/ 350 MAG) SN# 0D617328 & Up -
1116-805161 STUD, (4.75 In) (4-3/4 IN.)STUD, (4.75 In) (4-3/4 IN.)
-
1116-805296 STUD, (4.50 Inch)STUD, (4.50 Inch)
-
1211-8267139 NUTNUT
-
1324-897454 SPRINGSPRING
-
1410-35385 SCREW, (.312-18 x 1-3/4)SCREW, (.312-18 x 1-3/4)
-
1410-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
1516-70237 STUD, (.312-18/.312-24 x 2.620)STUD, (.312-18/.312-24 x 2.620)
-
1516-8M0113177 STUD, (.312 x 1.500)STUD, (.312 x 1.500)
-
16805359T BRACKET
(CAST)BRACKET
(CAST) -
16805359T BRACKET
(STAMPED)BRACKET
(STAMPED) -
1711-29250 NUT, (.312-24)NUT, (.312-24)
-
17A12-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
1816-818192 STUDSTUD
-
1912-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
2011-826709109 NUT, (.250-28)NUT, (.250-28)
-
2127-41610 GASKET
5.7L ALPHAGASKET
5.7L ALPHA -
21A806177A3 SPACER
5.7L ALPHASPACER
5.7L ALPHA -
21B10-54523 SCREW, (.312-18 x 1.00)
5.7L ALPHASCREW, (.312-18 x 1.00)
5.7L ALPHA -
2222-12524 PLUG, (.375)PLUG, (.375)
-
2316-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
2412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2511-8267089 NUT, (.250-28)NUT, (.250-28)
-
2611-826709109 NUT, (.250-28)NUT, (.250-28)
-
2766205 CHOKE
AUTOMATIC CHOKECHOKE
AUTOMATIC CHOKE -
2863922 COVER
AUTOMATIC CHOKECOVER
AUTOMATIC CHOKE -
2910-69235 SCREW, (.190-24 x .500)
AUTOMATIC CHOKESCREW, (.190-24 x .500)
AUTOMATIC CHOKE -
30806941 ROD, Choke
AUTOMATIC CHOKEROD, Choke
AUTOMATIC CHOKE -
3153-818299 E RING
AUTOMATIC CHOKEE RING
AUTOMATIC CHOKE -
3227-524572 GASKET
(5.7L ALPHA /BRAVO & 350 MAGNUM)GASKET
(5.7L ALPHA /BRAVO & 350 MAGNUM) -
33806177A3 SPACER
USE WITH QUAD RINGSSPACER
USE WITH QUAD RINGS -
3425-806237 QUAD RING
USE WITH QUAD RINGSQUAD RING
USE WITH QUAD RINGS -
3510-54523 SCREW, (.312-18 x 1.00)
USE WITH QUAD RINGSSCREW, (.312-18 x 1.00)
USE WITH QUAD RINGS
