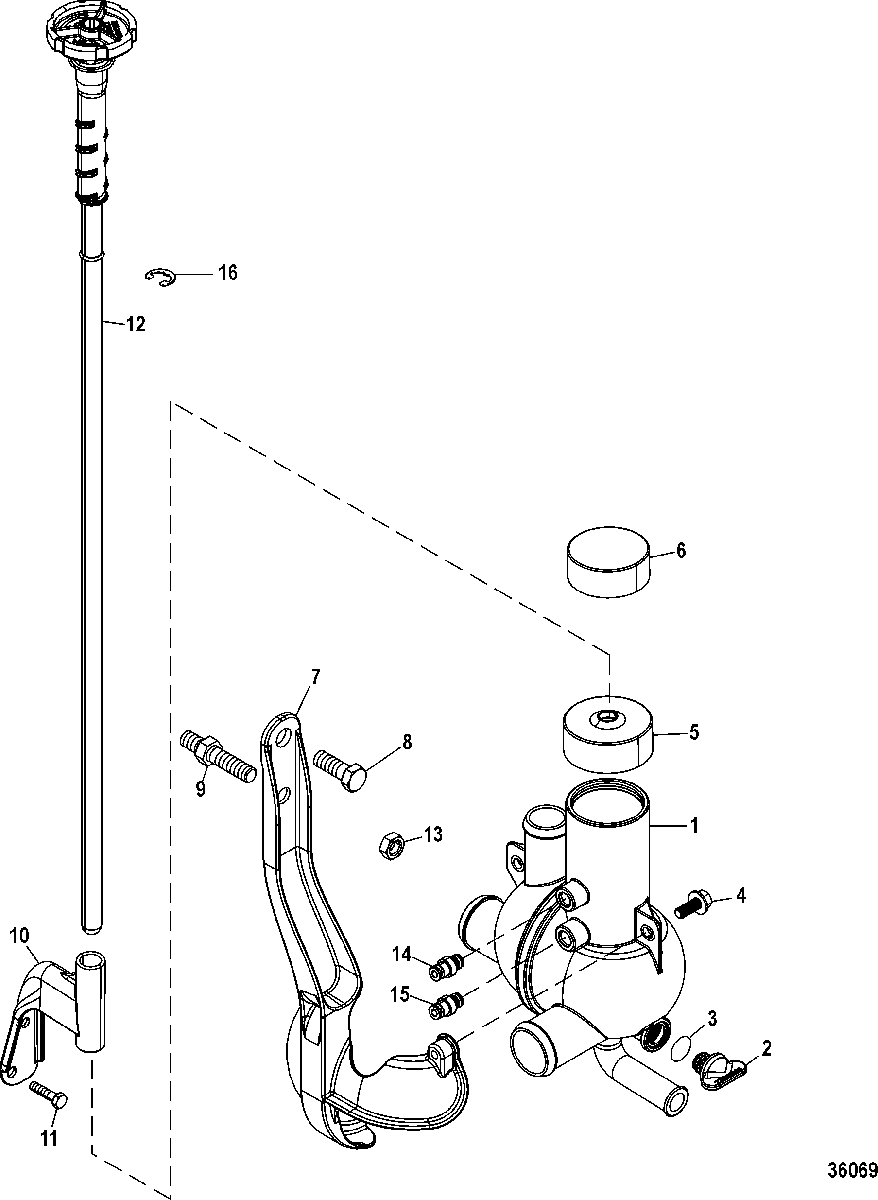

Water Distribution Housing для Mercruiser - 5.0L MPI ALPHA/BRAVO 0W310000 THRU 0W649999

  • №
    Артикул
    Название
  • 1
    863631T1 HOUSING, Water Distribution
    (Manual Drain)
    HOUSING, Water Distribution
    (Manual Drain)
  • 1
    863444T1 HOUSING, Water Distribution
    (Rod Actuated)
    HOUSING, Water Distribution
    (Rod Actuated)
  • 1
    863802T2 HOUSING, Water Distribution
    (Air Actuated) (Closed Cool)
    HOUSING, Water Distribution
    (Air Actuated) (Closed Cool)
  • 1
    863444T2 HOUSING, Water Distribution
    (Air Actuated) (Standard Cool)
    HOUSING, Water Distribution
    (Air Actuated) (Standard Cool)
  • 2
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 3
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 4
    10-8175051 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 5
    863839 COVER
    (Rod Actuated)
    COVER
    (Rod Actuated)
  • 6
    863865 COVER
    (Manual Drain)
    COVER
    (Manual Drain)
  • 7
    863449T BRACKET, Water Distribution Housing
    BRACKET, Water Distribution Housing
  • 8
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 9
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 10
    863451T BRACKET, Water Drain Actuator
    BRACKET, Water Drain Actuator
  • 11
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 12
    863381A1 DRAIN ROD ASSEMBLY
    DRAIN ROD ASSEMBLY
  • 13
    11-82671112 NUT, (.375-16)
    NUT, (.375-16)
  • 14
    22-863499 FITTING, Air Valve, Orange
    (Component of Air Actuated Housing Only)
    FITTING, Air Valve, Orange
    (Component of Air Actuated Housing Only)
  • 15
    22-863467 FITTING, Air Valve, Gray
    (Component of Air Actuated Housing Only)
    FITTING, Air Valve, Gray
    (Component of Air Actuated Housing Only)
  • 16
    53-863741 E-RING
    E-RING
