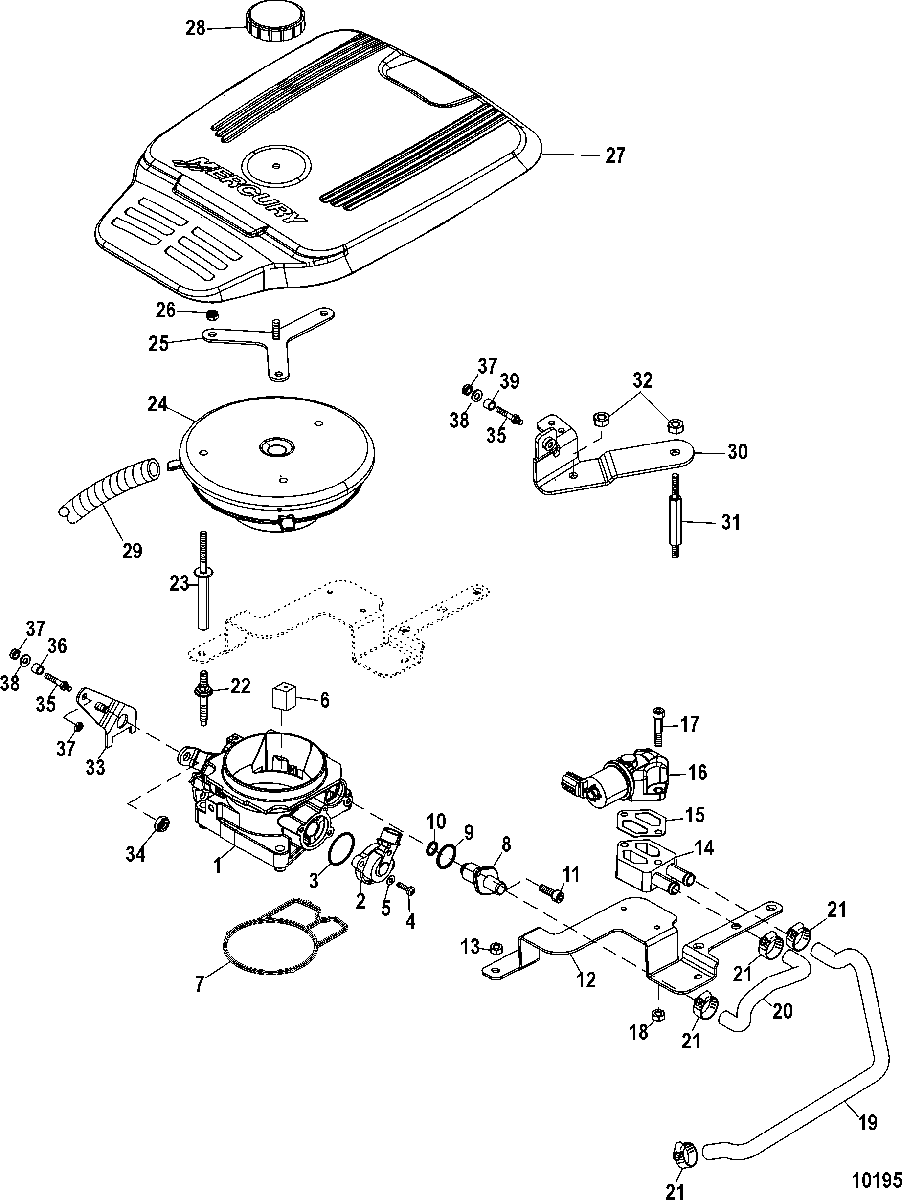

Throttle Body(Mechanical) для Mercruiser - 5.0L MPI ALPHA/BRAVO 0W310000 THRU 0W649999

  • №
    Артикул
    Название
  • 1
    8M0096994 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 2
    8M0097035 SENSOR, TPS
    SENSOR, TPS
  • 3
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 4
    10-853680 SCREW KIT, TPS
    SCREW KIT, TPS
  • 5
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 6
    35-863829 MUFFLER, Intake Air Control
    MUFFLER, Intake Air Control
  • 7
    27-8M4502066 GASKET, Throttle Body
    GASKET, Throttle Body
  • 8
    862999A5 PLUG KIT, IAC
    PLUG KIT, IAC
  • 9
    25-863006 O-RING
    O-RING
  • 10
    25-808547 O-RING
    O-RING
  • 11
    10-4008612 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 12
    863647T BRACKET
    BRACKET
  • 13
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    863419A1 VALVE ASSEMBLY, Air
    VALVE ASSEMBLY, Air
  • 15
    27-8M0119616 GASKET, Air Valve
    GASKET, Air Valve
  • 16
    862998 VALVE, Idle Air
    VALVE, Idle Air
  • 17
    10-F2192 SCREW, (.250-20 x 1.750)
    SCREW, (.250-20 x 1.750)
  • 18
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 19
    32-863429 HOSE
    HOSE
  • 20
    32-863428 HOSE
    HOSE
  • 21
    54-815504210 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • N.S.
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 22
    16-8M0088142 STUD
    STUD
  • 23
    16-864338 STUD, Special
    STUD, Special
  • 24
    863416T FLAME ARRESTOR
    FLAME ARRESTOR
  • 25
    863423 BRACKET, Cover Mount
    BRACKET, Cover Mount
  • 26
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 27
    879288T66 COVER, Black, Engine
    COVER, Black, Engine
  • 28
    11-863701 KNOB, Engine Cover
    KNOB, Engine Cover
  • 29
    32-8M0086022 HOSE, (16.50 Inches Bulk), Breather
    HOSE, (16.50 Inches Bulk), Breather
  • 30
    863420T BRACKET, Throttle Anchor
    BRACKET, Throttle Anchor
  • 31
    16-863439 STUD
    STUD
  • 32
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 33
    863417 BRACKET, Throttle
    BRACKET, Throttle
  • 34
    11-8267138 NUT, (.25-20)
    NUT, (.25-20)
  • 35
    16-97477A3 STUD KIT, Throttle Anchor
    STUD KIT, Throttle Anchor
  • 36
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 37
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 38
    12-20533 WASHER
    WASHER
  • 39
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 39
    23-11284 SPACER, (.62 Diameter)
    SPACER, (.62 Diameter)
