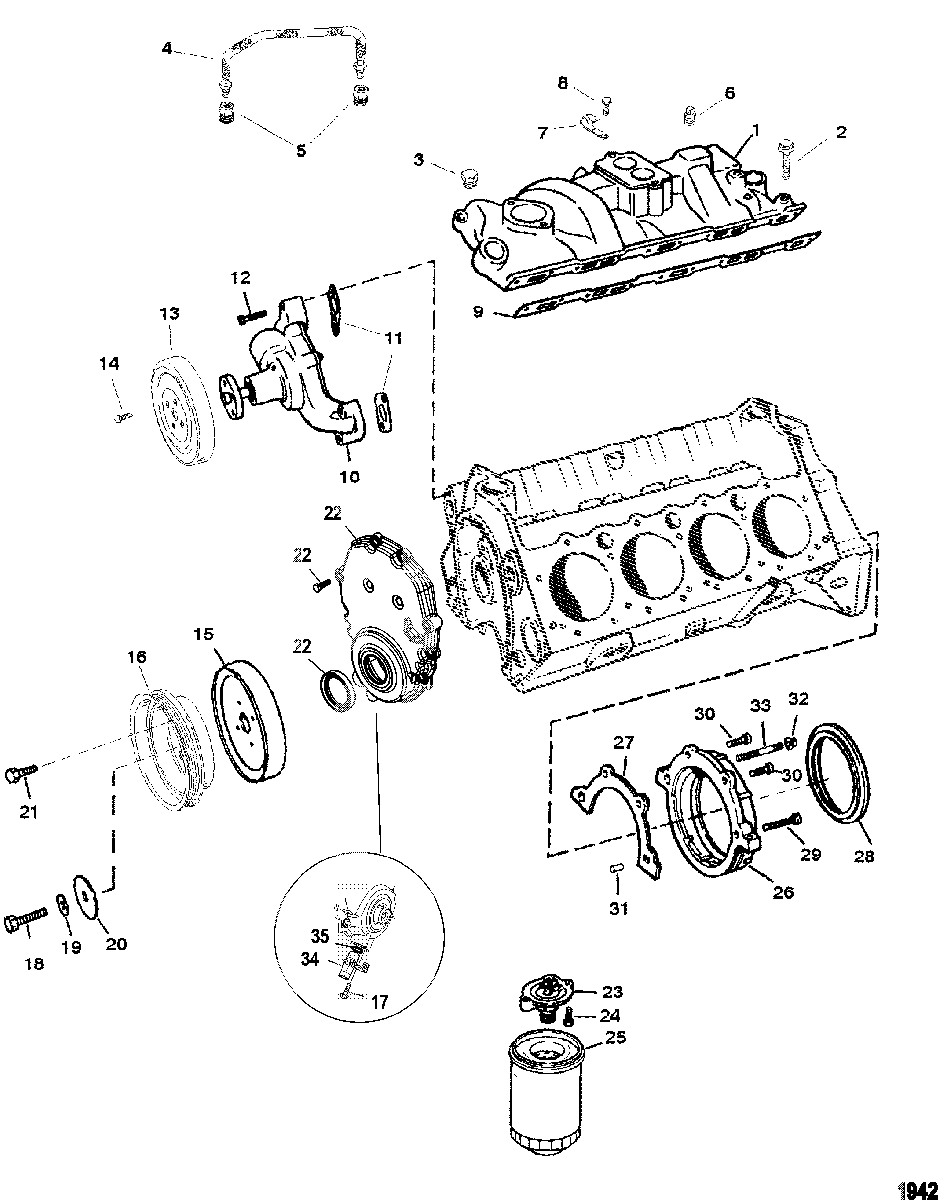

Water Pump And Front Cover для Mercruiser - 5.0L (2 BBL.) GM 305 V-8 1998-2001 0L015751 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    860100A1 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 2
    10-808010 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 3
    22-384071 PLUG, Pipe (.500)
    PLUG, Pipe (.500)
  • 4
    32-865100A01 TUBE
    TUBE
  • 5
    22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF To .50 Inch Inv. Flare)
    CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF To .50 Inch Inv. Flare)
  • 6
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 7
    54-73668 J-CLIP
    J-CLIP
  • 8
    10-86750 SCREW, (.312-18 x .620)
    SCREW, (.312-18 x .620)
  • 9
    27-807473A1 GASKET SET
    GASKET SET
  • 10
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 11
    27-34897 GASKET
    GASKET
  • 12
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 12
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 12
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 13
    807729T PULLEY
    PULLEY
  • 14
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 15
    852946001 BALANCER, Harmonic
    BALANCER, Harmonic
  • 16
    807730T PULLEY
    PULLEY
  • 17
    10-884018001 SCREW
    SN# 0M087348 & Up
    SCREW
    SN# 0M087348 & Up
  • 18
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 19
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 20
    12-35332001 WASHER
    WASHER
  • 21
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 22
    835005 COVER ASSEMBLY, Timing
    SN# 0M087347 & Below
    COVER ASSEMBLY, Timing
    SN# 0M087347 & Below
  • 22
    863396001 TIMING COVER ASSEMBLY
    SN# 0M087348 & Up
    TIMING COVER ASSEMBLY
    SN# 0M087348 & Up
  • 23
    71920 VALVE ASSEMBLY, Filter
    (With Out Remote Oil Filter)
    VALVE ASSEMBLY, Filter
    (With Out Remote Oil Filter)
  • 24
    10-54786 SCREW, (.312-18 x 1.250)
    (With Out Remote Oil Filter)
    SCREW, (.312-18 x 1.250)
    (With Out Remote Oil Filter)
  • 25
    35-866340Q03 FILTER, Oil
    (With Out Remote Oil Filter)
    FILTER, Oil
    (With Out Remote Oil Filter)
  • 26
    852940 HOUSING ASSEMBLY, With Studs
    HOUSING ASSEMBLY, With Studs
  • 27
    27-881715 GASKET
    GASKET
  • 28
    26-852941 SEAL, Oil (Rear)
    SEAL, Oil (Rear)
  • 29
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 30
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 31
    17-14263 PIN, Dowel
    PIN, Dowel
  • 32
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 33
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 34
    864297T01 SENSOR ASSEMBLY
    SN# 0M087348 & Up
    SENSOR ASSEMBLY
    SN# 0M087348 & Up
  • 35
    25-885192 O-RING
    SN# 0M087348 & Up
    O-RING
    SN# 0M087348 & Up
  • -
    27-861246A05 GASKET SET
    GASKET SET
