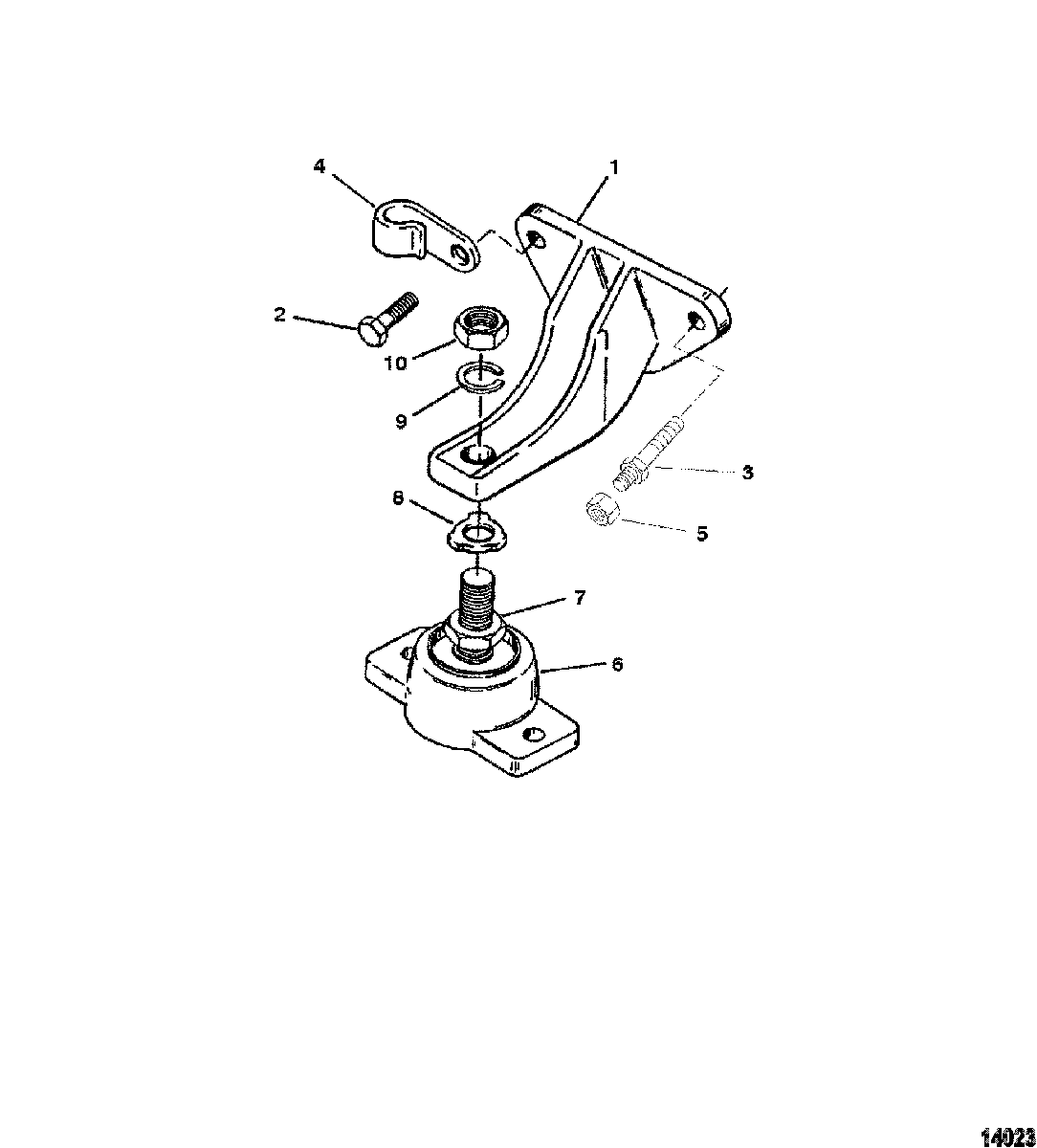

Engine Mounting для Mercruiser - 5.0L (2 BBL.) GM 305 V-8 1998-2001 0L015751 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET
    BRACKET
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    (With Out Remote Oil)
    SCREW, (.375-16 x 1.375)
    (With Out Remote Oil)
  • 3
    16-8M2004610 STUD, (.375-16 x 2.130)
    (With Out Remote Oil)
    STUD, (.375-16 x 2.130)
    (With Out Remote Oil)
  • 4
    54-92850 CLAMP
    (With Out Remote Oil)
    CLAMP
    (With Out Remote Oil)
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    (With Remote Oil)
    SCREW, (.375-16 x 1.375)
    (With Remote Oil)
  • 3
    16-8M2004610 STUD, (.375-16 x 2.130)
    (With Remote Oil)
    STUD, (.375-16 x 2.130)
    (With Remote Oil)
  • 4
    54-816398 CLIP
    (With Remote Oil)
    CLIP
    (With Remote Oil)
  • 5
    11-860069 NUT, (.375-16)
    (With Remote Oil)
    NUT, (.375-16)
    (With Remote Oil)
  • 6
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 7
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 8
    14-12657 TAB WASHER
    TAB WASHER
  • 9
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 10
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
