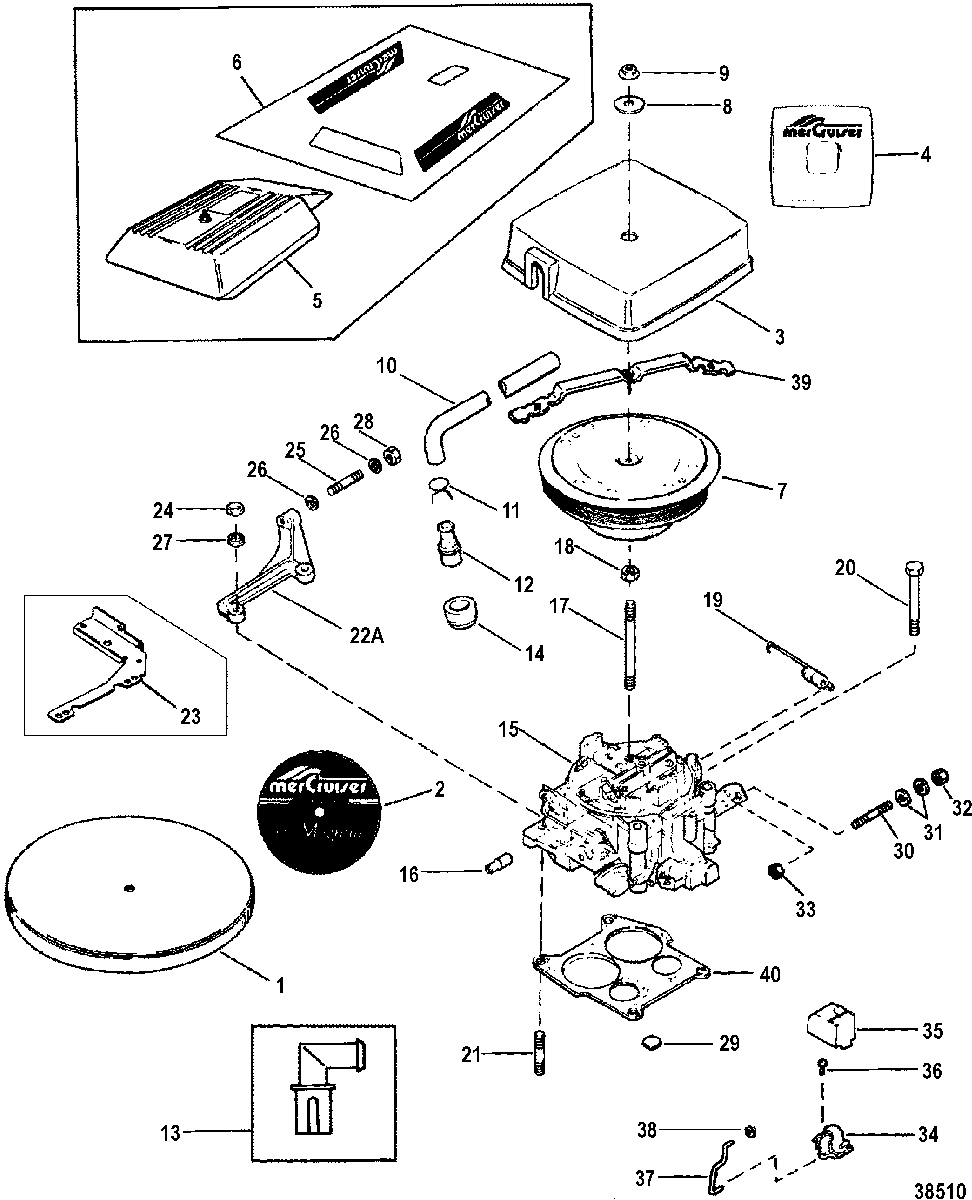

CARBURETOR/THROTTLE LINKAGE(ROCHESTER - 4 BBL) для Mercruiser - 5.0L (2 BBL.) GM 305 V-8 1988-1995 0B774445 THRU 0F600999

  • №
    Артикул
    Название
  • 1
    14605T1 COVER, Carburetor
    350 MAGNUM
    COVER, Carburetor
    350 MAGNUM
  • 2
    37-1372313 DECAL
    350 MAGNUM
    DECAL
    350 MAGNUM
  • 3
    15414A7 COVER
    DESIGN I
    COVER
    DESIGN I
  • 4
    37-1372312 DECAL
    (260 ALPHA) DESIGN I
    DECAL
    (260 ALPHA) DESIGN I
  • 4
    37-1372311 DECAL
    (230 ALPHA DESIGN I
    DECAL
    (230 ALPHA DESIGN I
  • 4
    37-1372333 DECAL
    (5.0LX) DESIGN I
    DECAL
    (5.0LX) DESIGN I
  • 4
    37-1372334 DECAL
    (5.7L) DESIGN I
    DECAL
    (5.7L) DESIGN I
  • 4
    37-1372344 DECAL
    (5.7L BRAVO) DESIGN I
    DECAL
    (5.7L BRAVO) DESIGN I
  • 5
    18484A3 COVER
    DESIGN II
    COVER
    DESIGN II
  • 6
    37-812776A4 DECAL SET
    (5.0LX) DESIGN II
    DECAL SET
    (5.0LX) DESIGN II
  • 6
    37-812776A5 DECAL SET
    (5.7L) DESIGN II
    DECAL SET
    (5.7L) DESIGN II
  • 6
    37-812776A25 DECAL SET
    (5.7L BRAVO) DESIGN II
    DECAL SET
    (5.7L BRAVO) DESIGN II
  • 6
    37-812776A26 DECAL SET
    (350 MAGNUM) DESIGN II
    DECAL SET
    (350 MAGNUM) DESIGN II
  • 7
    805298A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 8
    12-86400 WASHER
    WASHER
  • 9
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 10
    32-8M0062669 HOSE (11-1/4 IN.)
    HOSE (11-1/4 IN.)
  • 10
    32-8M0086022 HOSE, Breather
    (CORRUGATED)
    HOSE, Breather
    (CORRUGATED)
  • 11
    54-53101 CLAMP
    CLAMP
  • 12
    47957 CONNECTOR
    CONNECTOR
  • 13
    97850T ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 14
    23-8M0071559 GROMMET
    GROMMET
  • 15
    1347-804624R02 CARBURETOR ASSEMBLY
    (260-5.7L/5.7L BRAVO)
    CARBURETOR ASSEMBLY
    (260-5.7L/5.7L BRAVO)
  • 15
    1347-804623R02 CARBURETOR ASSEMBLY
    (230-5.0LX)
    CARBURETOR ASSEMBLY
    (230-5.0LX)
  • 15
    1347-804624R02 CARBURETOR ASSEMBLY
    (350 MAGNUM/5.7L BRAVO W/HI-RISE MANIFOLD)
    CARBURETOR ASSEMBLY
    (350 MAGNUM/5.7L BRAVO W/HI-RISE MANIFOLD)
  • 16
    22-97282 CONNECTOR
    CONNECTOR
  • 17
    16-91842 STUD (4 IN.)
    STUD (4 IN.)
  • 17
    16-805161 STUD (4-3/4 IN.)
    STUD (4-3/4 IN.)
  • 17
    16-806019 STUD (4 IN.) Step Stud
    STUD (4 IN.) Step Stud
  • 18
    11-8267139 NUT
    NUT
  • 19
    24-897454 SPRING
    SPRING
  • 20
    10-74822 SCREW, (.312-18 x 3.500)
    SCREW, (.312-18 x 3.500)
  • 21
    16-46857 STUD, (5/16 x 1-7/8) (1-7/8 IN.)
    STUD, (5/16 x 1-7/8) (1-7/8 IN.)
  • 21
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 22
    805359A02 BRACKET
    (CAST)
    BRACKET
    (CAST)
  • 23
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 24
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 25
    16-38525 STUD (1-1/2 IN.)
    STUD (1-1/2 IN.)
  • 25
    16-818192 STUD (1.69)
    STUD (1.69)
  • 26
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 27
    805359T BRACKET
    (STAMPED)
    BRACKET
    (STAMPED)
  • 28
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 29
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 30
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 31
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 32
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 33
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 34
    71464A01 CHOKE
    CHOKE
  • 35
    63922 COVER
    COVER
  • 36
    10-69235 SCREW, (.190-24 x .500)
    SCREW, (.190-24 x .500)
  • 37
    77931 CHOKE ROD
    CHOKE ROD
  • 38
    53-818299 E RING
    E RING
  • 37
    72468 CHOKE ROD
    HI-RISE INTAKE MANIFOLD
    CHOKE ROD
    HI-RISE INTAKE MANIFOLD
  • 38
    54-89668 CLIP
    HI-RISE INTAKE MANIFOLD
    CLIP
    HI-RISE INTAKE MANIFOLD
  • 39
    805314 RETAINER, Breather Hose
    RETAINER, Breather Hose
  • 40
    27-524572 GASKET
    GASKET
