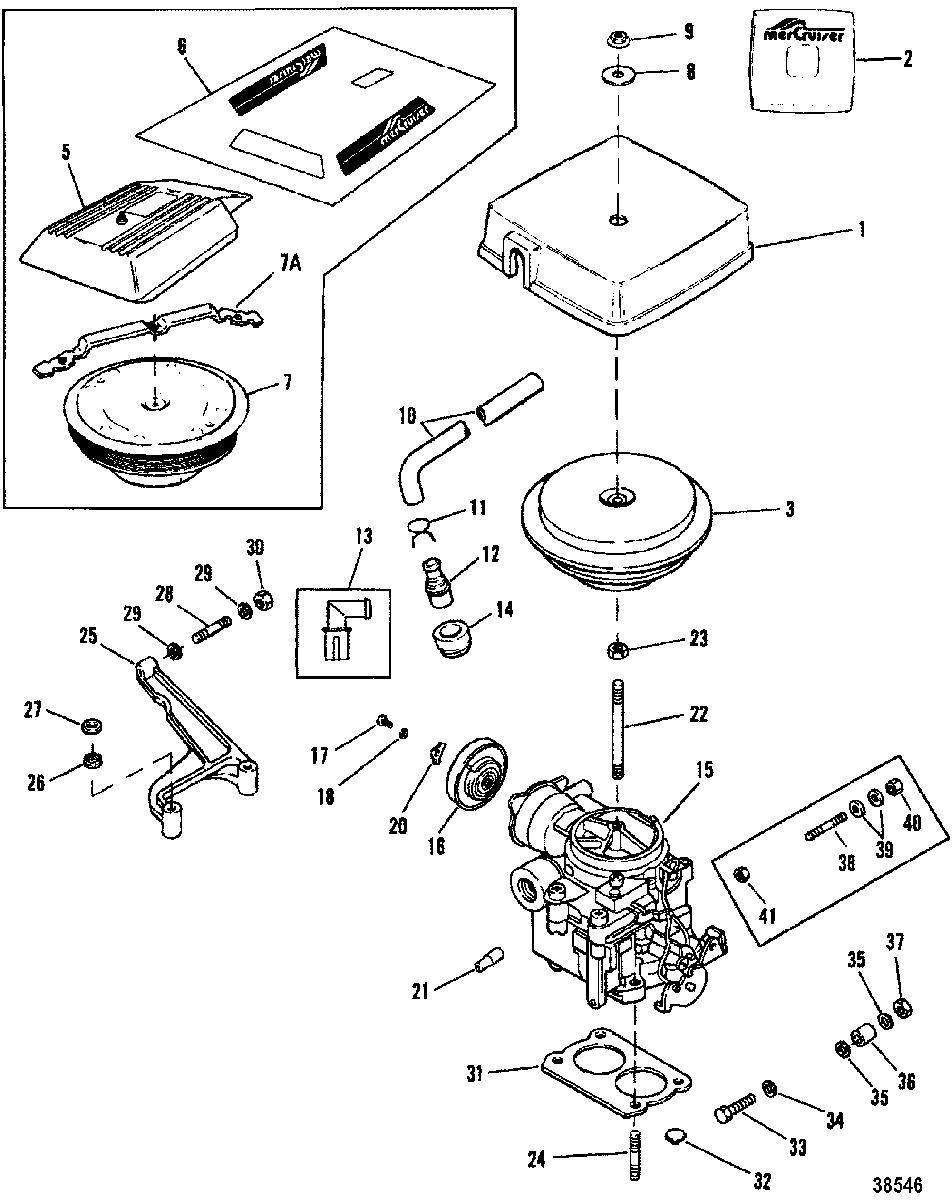

CARBURETOR/THROTTLE LINKAGE(2 BARREL) для Mercruiser - 5.0L (2 BBL.) GM 305 V-8 1988-1995 0B774445 THRU 0F600999

  • №
    Артикул
    Название
  • 1
    15414A7 COVER
    DESIGN I
    COVER
    DESIGN I
  • 2
    37-137239 DECAL
    (200 ALPHA) DESIGN I
    DECAL
    (200 ALPHA) DESIGN I
  • 2
    37-1372331 DECAL
    (5.0L) DESIGN I
    DECAL
    (5.0L) DESIGN I
  • 3
    86271 FLAME ARRESTOR
    DESIGN I
    FLAME ARRESTOR
    DESIGN I
  • 5
    18484A3 COVER
    DESIGN II
    COVER
    DESIGN II
  • 6
    37-812776A3 DECAL SET
    (5.0L ALPHA) DESIGN II
    DECAL SET
    (5.0L ALPHA) DESIGN II
  • 6
    37-812776A19 DECAL SET
    (5.0L BRAVO) DESIGN II
    DECAL SET
    (5.0L BRAVO) DESIGN II
  • 7
    805016A1 FLAME ARRESTOR
    DESIGN II
    FLAME ARRESTOR
    DESIGN II
  • 7A
    805313 RETAINER
    DESIGN II
    RETAINER
    DESIGN II
  • 8
    12-86400 WASHER
    WASHER
  • 9
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 10
    32-8M0062669 HOSE
    (11-1/4 IN.)
    HOSE
    (11-1/4 IN.)
  • 10
    32-8M0086022 HOSE, Breather
    (CORRUGATED)
    HOSE, Breather
    (CORRUGATED)
  • 11
    54-53101 CLAMP
    CLAMP
  • 12
    47957 CONNECTOR
    CONNECTOR
  • 13
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 14
    23-8M0071559 GROMMET
    GROMMET
  • 15
    3310-807312A1 CARBURETOR ASSEMBLY (MERCARB)
    CARBURETOR ASSEMBLY (MERCARB)
  • 16
    70125A02 COVER, Choke
    COVER, Choke
  • 17
    10-33047 SCREW
    SCREW
  • 18
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 20
    54-33036 RETAINER
    RETAINER
  • 21
    22-54090 ELBOW (90 DEGREES)
    ELBOW (90 DEGREES)
  • 22
    16-97012 STUD (2-3/4 IN.)
    STUD (2-3/4 IN.)
  • 22
    16-8M0113181 STUD, (.250-20/.250-28 x Special) (3 IN.)
    STUD, (.250-20/.250-28 x Special) (3 IN.)
  • 23
    11-8267139 NUT
    NUT
  • 24
    16-70237 STUD, (.312-18/.312-24 x 2.620)
    STUD, (.312-18/.312-24 x 2.620)
  • 24
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 25
    805489T BRACKET
    BRACKET
  • 26
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 27
    11-862902 NUT, (.9375-24)
    NUT, (.9375-24)
  • 28
    16-38525 STUD
    STUD
  • 29
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 30
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 31
    27-8079821 GASKET
    GASKET
  • 32
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 33
    10-37892 SCREW, (.190-32 x 1.00)
    CABLE ATTACHED WITH SCREW
    SCREW, (.190-32 x 1.00)
    CABLE ATTACHED WITH SCREW
  • 34
    12-26907 WASHER
    CABLE ATTACHED WITH SCREW
    WASHER
    CABLE ATTACHED WITH SCREW
  • 35
    12-847883 WASHER, (.192 x .375 x .033)
    CABLE ATTACHED WITH SCREW
    WASHER, (.192 x .375 x .033)
    CABLE ATTACHED WITH SCREW
  • 36
    23-57938 BUSHING
    CABLE ATTACHED WITH SCREW
    BUSHING
    CABLE ATTACHED WITH SCREW
  • 37
    11-859124 NUT, (#10-32) Stainless Steel
    CABLE ATTACHED WITH SCREW
    NUT, (#10-32) Stainless Steel
    CABLE ATTACHED WITH SCREW
  • 38
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    CABLE ATTACHED WITH STUD
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
    CABLE ATTACHED WITH STUD
  • 39
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    CABLE ATTACHED WITH STUD
    WASHER, (.281 x .500 x .060) Stainless Steel
    CABLE ATTACHED WITH STUD
  • 40
    11-8267089 NUT, (.250-28)
    CABLE ATTACHED WITH STUD
    NUT, (.250-28)
    CABLE ATTACHED WITH STUD
  • 41
    11-826709109 NUT, (.250-28)
    CABLE ATTACHED WITH STUD
    NUT, (.250-28)
    CABLE ATTACHED WITH STUD
