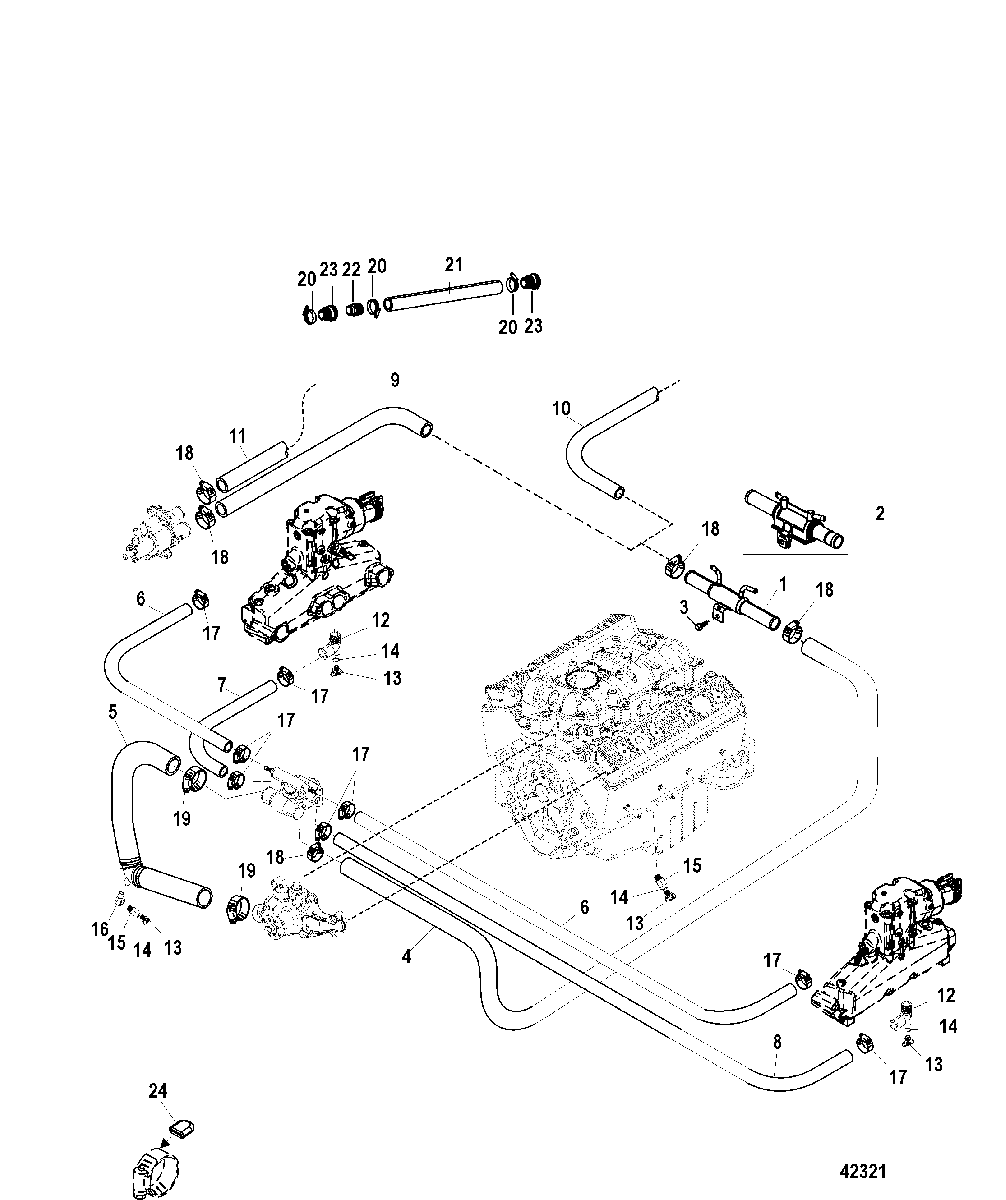

Standard Cooling System, 357 Alpha/Bravo для Mercruiser - 383 Mag Bravo 4V 1G480748 & Up

  • №
    Артикул
    Название
  • 1
    8M0125855 COOLER, Power Steering
    (Metal)
    COOLER, Power Steering
    (Metal)
  • 2
    8M0125855 COOLER, Power Steering
    (Composite)
    COOLER, Power Steering
    (Composite)
  • 3
    10-816585 SCREW, (.375-18 x .875)
    Metal Cooler
    SCREW, (.375-18 x .875)
    Metal Cooler
  • 3
    10-8M2016106 SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
    SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
  • 4
    32-865093 HOSE, Power Steering Cooler to Thermostat Housing
    HOSE, Power Steering Cooler to Thermostat Housing
  • 5
    32-861590A05 HOSE ASSEMBLY, Circulating Pump to Thermostat Housing
    HOSE ASSEMBLY, Circulating Pump to Thermostat Housing
  • 6
    32-864979 HOSE, Exhaust Elbow to Thermostat Housing
    (Starboard)
    HOSE, Exhaust Elbow to Thermostat Housing
    (Starboard)
  • 6
    32-864977 HOSE, Exhaust Elbow to Thermostat Housing
    (Port)
    HOSE, Exhaust Elbow to Thermostat Housing
    (Port)
  • 7
    32-807697 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 8
    32-862139 HOSE, Thermostat Housing to Port Exhaust Manifold
    HOSE, Thermostat Housing to Port Exhaust Manifold
  • 9
    32-8080441 HOSE, Molded, Sea Water Pump To Power Stering Cooler
    Bravo
    HOSE, Molded, Sea Water Pump To Power Stering Cooler
    Bravo
  • 10
    32-807661 HOSE, Transom Assembly to Power Steering Cooler
    Alpha
    HOSE, Transom Assembly to Power Steering Cooler
    Alpha
  • 11
    32-8M0062666 HOSE, (96.00 Inches Bulk), Transom Water Pick Up To Sea Water Pump (36 IN.)
    HOSE, (96.00 Inches Bulk), Transom Water Pick Up To Sea Water Pump (36 IN.)
  • 12
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 13
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 14
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 15
    22-860088 BUSHING
    BUSHING
  • 16
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 18
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 19
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 20
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 21
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 22
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 23
    22-865324 QUICK CONNECT
    QUICK CONNECT
  • 24
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
