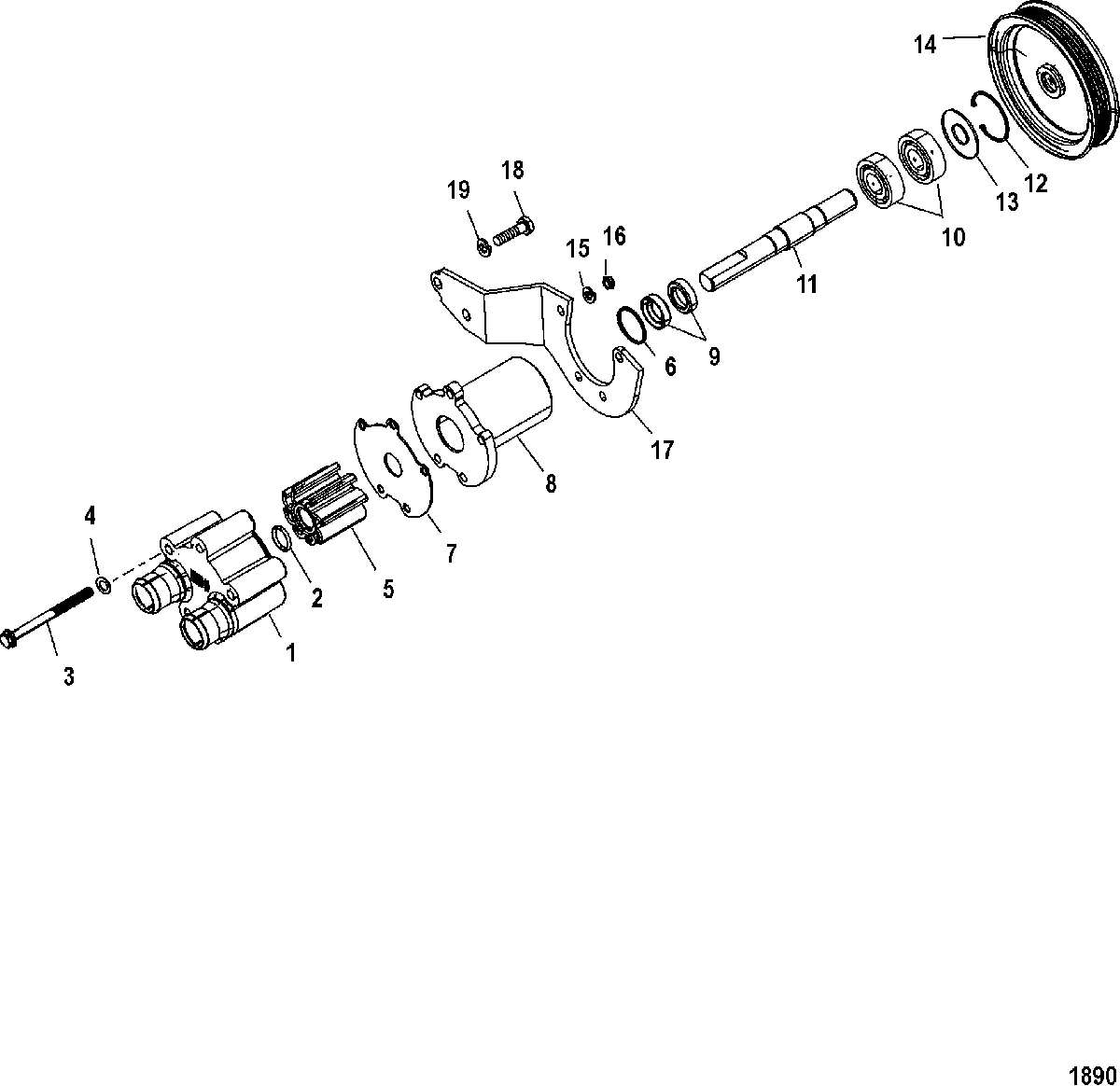

Sea Water Pump Assembly для Mercruiser - 383 Mag Bravo 4V 1G480748 & Up
-
№АртикулНазвание
-
-46-807151A9 PUMP ASSEMBLY, Sea WaterPUMP ASSEMBLY, Sea Water
-
146-807151A14 BODY/IMPELLER KITBODY/IMPELLER KIT
-
225-33465 O-RINGO-RING
-
310-807356 SCREW, (.312-18 x 2.680)SCREW, (.312-18 x 2.680)
-
310-74191 SCREW, (.312-18 x 3.250)SCREW, (.312-18 x 3.250)
-
412-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
547-59362T1 IMPELLERIMPELLER
-
625-94288 QUAD RINGQUAD RING
-
794576 WEAR PLATE, InnerWEAR PLATE, Inner
-
846-94913A5 HOUSING ASSEMBLY, PumpHOUSING ASSEMBLY, Pump
-
926-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1030-72961 BEARING, BallBEARING, Ball
-
1159501A1 SHAFTSHAFT
-
1253-23720 RING, RetainingRING, Retaining
-
1326-72785 SEALSEAL
-
14861579 PULLEYPULLEY
-
1513-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
1611-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
178077491 BRACKETBRACKET
-
1810-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1913-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
