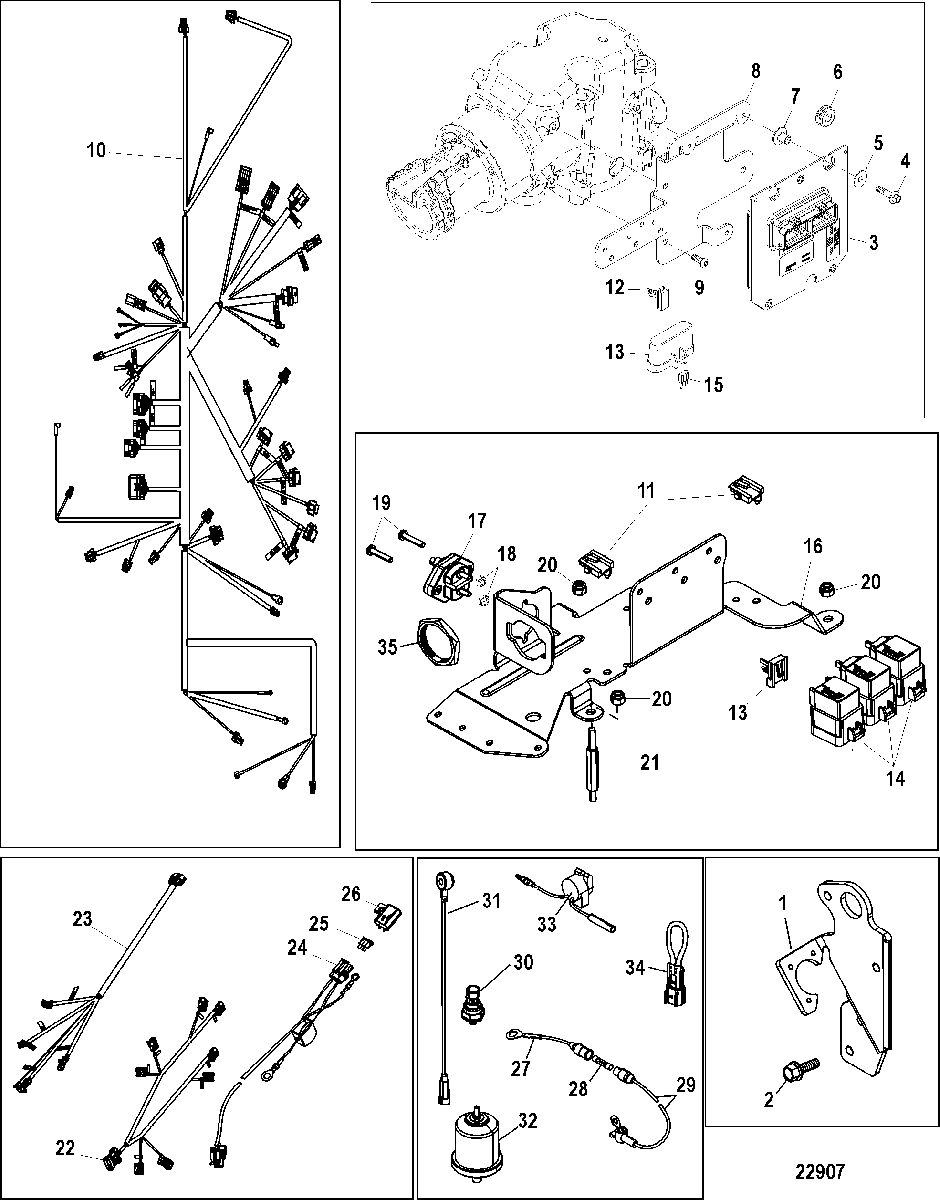

Electrical Components, Mechanical для Mercruiser - 377 MAG MPI BRAVO 1A623185 & Up

  • №
    Артикул
    Название
  • 1
    865480T BRACKET, Harness Mounting/Lifting Eye
    BRACKET, Harness Mounting/Lifting Eye
  • 2
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 3
    879194T82 ECM, Engine Control Module
    5.0L MPI Alpha, Standard Cooling
    ECM, Engine Control Module
    5.0L MPI Alpha, Standard Cooling
  • 3
    879194T83 ECM, Engine Control Module
    5.0L MPI Alpha, Closed Cooling
    ECM, Engine Control Module
    5.0L MPI Alpha, Closed Cooling
  • 3
    879194T84 ECM, Engine Control Module
    5.0L MPI Bravo, Standard Cooling
    ECM, Engine Control Module
    5.0L MPI Bravo, Standard Cooling
  • 3
    879194T85 ECM, Engine Control Module
    5.0L MPI Bravo, Closed Cooling
    ECM, Engine Control Module
    5.0L MPI Bravo, Closed Cooling
  • 3
    879194T86 ECM, Engine Control Module
    350 Mag MPI Alpha, Standard Cooling
    ECM, Engine Control Module
    350 Mag MPI Alpha, Standard Cooling
  • 3
    879194T87 ECM, Engine Control Module
    350 Mag MPI Alpha, Closed Cooling
    ECM, Engine Control Module
    350 Mag MPI Alpha, Closed Cooling
  • 3
    879194T88 ECM, Engine Control Module
    350 Mag MPI Bravo, Standard Cooling
    ECM, Engine Control Module
    350 Mag MPI Bravo, Standard Cooling
  • 3
    879194T89 ECM, Engine Control Module
    350 Mag MPI Bravo, Closed Cooling
    ECM, Engine Control Module
    350 Mag MPI Bravo, Closed Cooling
  • 3
    879288T92 ECM, Engine Control Module
    377 MAG MPI, Standard Cooling
    ECM, Engine Control Module
    377 MAG MPI, Standard Cooling
  • 3
    879288T93 ECM, Engine Control Module
    377 MAG MPI, Closed Cooling
    ECM, Engine Control Module
    377 MAG MPI, Closed Cooling
  • 4
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 5
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 6
    25-834985 GROMMET
    GROMMET
  • 7
    23-856954 BUSHING
    BUSHING
  • 8
    863424T BRACKET, ECM
    BRACKET, ECM
  • 9
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 10
    84-866058T02 HARNESS ASSEMBLY
    Alpha
    HARNESS ASSEMBLY
    Alpha
  • 10
    84-866056T02 HARNESS ASSEMBLY
    Bravo
    HARNESS ASSEMBLY
    Bravo
  • 11
    86-865205 CLIP, Relay Mounting
    CLIP, Relay Mounting
  • 12
    54-804352 CLIP, Fuse Block Mounting
    CLIP, Fuse Block Mounting
  • 13
    883562 COVER, Fuse
    COVER, Fuse
  • 14
    882751 RELAY
    RELAY
  • 15
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 15
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 16
    865483T BRACKET, Circuit Breaker and Relays
    BRACKET, Circuit Breaker and Relays
  • 17
    88-11178A01 BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A171549 & Below
    BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A171549 & Below
  • 17
    88-11178A01 BREAKER, Circuit - 50 Ampere, Button reset
    SN# 2A171550 & Up
    BREAKER, Circuit - 50 Ampere, Button reset
    SN# 2A171550 & Up
  • 18
    11-826709106 NUT, (#10-32) Stainless Steel
    SN# 2A171549 & Below
    NUT, (#10-32) Stainless Steel
    SN# 2A171549 & Below
  • 18
    11-68219 NUT, (#10-32) Stainless Steel
    SN# 2A171550 & Up
    NUT, (#10-32) Stainless Steel
    SN# 2A171550 & Up
  • 19
    10-830861 SCREW, (#8-32 x .625)
    SN# 2A171549 & Below
    SCREW, (#8-32 x .625)
    SN# 2A171549 & Below
  • 19
    10-45862 SCREW, (#10-32 x .875)
    SN# 2A171550 & Up
    SCREW, (#10-32 x .875)
    SN# 2A171550 & Up
  • 20
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 21
    16-863439 STUD
    STUD
  • 22
    84-865983T01 HARNESS ASSEMBLY, Injectors
    HARNESS ASSEMBLY, Injectors
  • 23
    84-865677T02 HARNESS ASSEMBLY, Transom
    HARNESS ASSEMBLY, Transom
  • 24
    84-8M0113732 HARNESS ASSEMBLY, Clean Power
    HARNESS ASSEMBLY, Clean Power
  • 25
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 26
    828054 COVER, Fuse
    COVER, Fuse
  • 27
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    Bravo
    CABLE ASSEMBLY, (5.00 Inches) Red
    Bravo
  • 28
    88-79091 FUSE, 20 Ampere
    Bravo
    FUSE, 20 Ampere
    Bravo
  • 29
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    Bravo
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    Bravo
  • 30
    8M6000623 SENSOR, Pressure
    Steering Cooler
    SENSOR, Pressure
    Steering Cooler
  • 30
    881879T11 SENSOR, Pressure (0 - 100 PSI), Oil
    SENSOR, Pressure (0 - 100 PSI), Oil
  • 31
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 32
    8M0068784 SENDER ASSEMBLY, Oil
    SENDER ASSEMBLY, Oil
  • 32
    37293T SENDER ASSEMBLY, Oil
    Dual Station
    SENDER ASSEMBLY, Oil
    Dual Station
  • 33
    816492A15 ALARM KIT
    ALARM KIT
  • 34
    864337A1 CONNECTOR, Black, Jumper
    Black Wire
    CONNECTOR, Black, Jumper
    Black Wire
  • 35
    11-889664 NUT, (1.500-18) Black Nylon
    NUT, (1.500-18) Black Nylon
