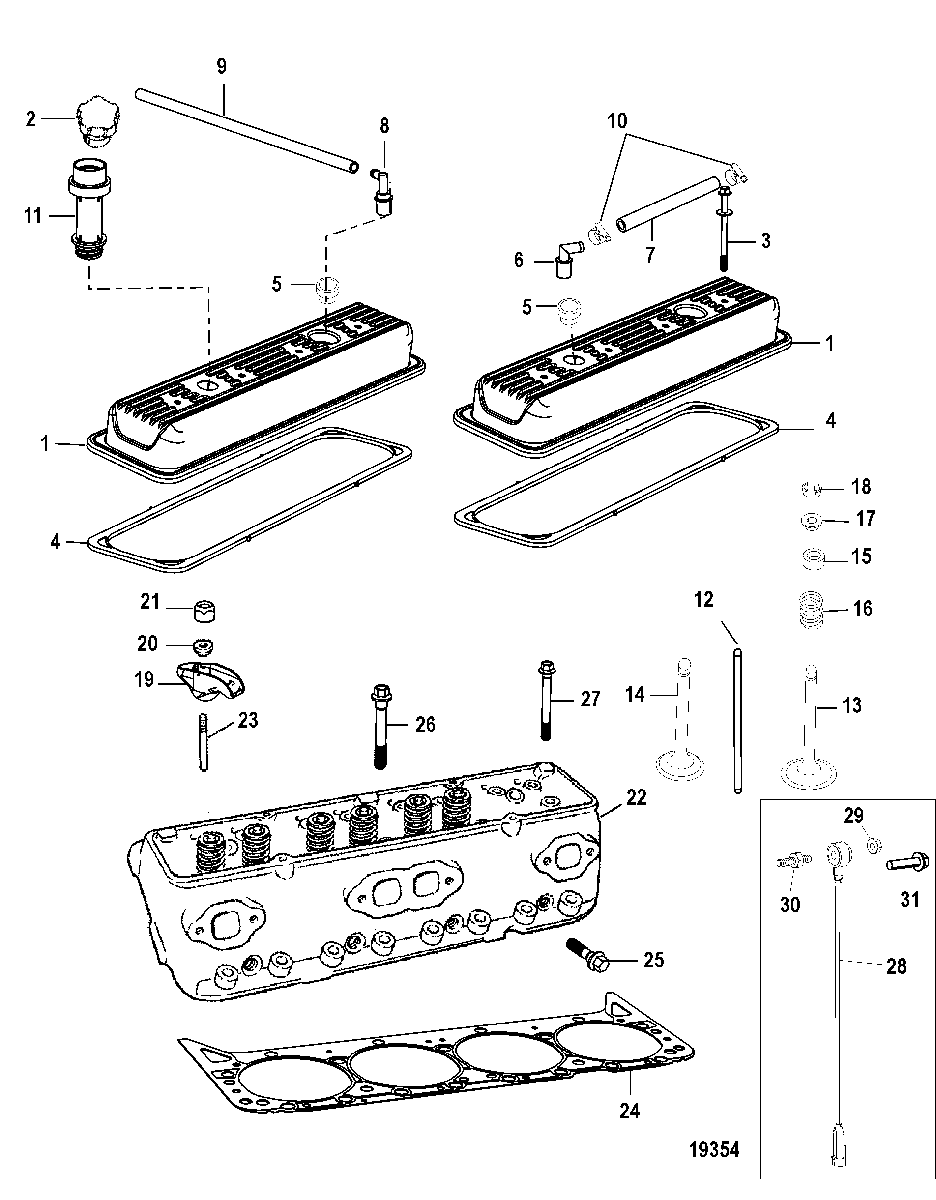

Cylinder Head and Rocker Cover для Mercruiser - 377 MAG MPI BRAVO 1A623185 & Up

  • №
    Артикул
    Название
  • 1
    809995 COVER, Rocker, With Oil Fill Hole
    COVER, Rocker, With Oil Fill Hole
  • 1
    8M0086350 COVER, Rocker, Without Oil Fill Hole
    COVER, Rocker, Without Oil Fill Hole
  • 2
    36-18710002 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 5
    23-8M0071559 GROMMET
    GROMMET
  • 6
    97850T ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 7
    32-8M0062321 HOSE, (33.00 Inches Bulk)
    HOSE, (33.00 Inches Bulk)
  • 8
    21-8M2017060 VALVE, PCV
    VALVE, PCV
  • 9
    32-8M0086022 HOSE, (16.50 Inches Bulk), Breather
    HOSE, (16.50 Inches Bulk), Breather
  • 10
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    807688T TUBE, Oil Fill
    TUBE, Oil Fill
  • 12
    173391 PUSH ROD
    PUSH ROD
  • 13
    8243171 VALVE, Exhaust
    Standard
    VALVE, Exhaust
    Standard
  • 13
    8243181 VALVE, Exhaust
    (.030) Oversize
    VALVE, Exhaust
    (.030) Oversize
  • 14
    802555 VALVE, Intake
    5.0L Standard
    VALVE, Intake
    5.0L Standard
  • 14
    809992 VALVE, Intake
    350 Standard
    VALVE, Intake
    350 Standard
  • 14
    8M2010902 VALVE, Intake
    377 Standard
    VALVE, Intake
    377 Standard
  • 15
    26-8M0050563 SEAL, Intake
    SEAL, Intake
  • 15
    26-804507 SEAL, Exhaust
    SEAL, Exhaust
  • 16
    24-483471 SPRING
    SPRING
  • 17
    483481 CAP
    CAP
  • 18
    28-547971 KEY
    KEY
  • 19
    35329 ARM KIT, Rocker
    ARM KIT, Rocker
  • 20
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 21
    11-34516 NUT
    NUT
  • 22
    938-8M0087884 CYLINDER HEAD ASSEMBLY
    5.0L (Bare)
    CYLINDER HEAD ASSEMBLY
    5.0L (Bare)
  • 22
    938-8M0115137 CYLINDER HEAD ASSEMBLY
    350 (Bare)
    CYLINDER HEAD ASSEMBLY
    350 (Bare)
  • 22
    900-8M0061735 CYLINDER HEAD ASSEMBLY
    377 (Loaded - Includes references 13-18, 23-24)
    CYLINDER HEAD ASSEMBLY
    377 (Loaded - Includes references 13-18, 23-24)
  • 23
    16-34522 STUD
    (.003) Oversized
    STUD
    (.003) Oversized
  • 23
    16-34521 STUD
    (.013) Oversized
    STUD
    (.013) Oversized
  • 24
    27-75611001 GASKET
    GASKET
  • 25
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 26
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 27
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • 28
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 29
    11-82670912 NUT, (.375-16) Stainless Steel
    5.0L
    NUT, (.375-16) Stainless Steel
    5.0L
  • 30
    16-863414 STUD, Knock Sensor
    5.0L
    STUD, Knock Sensor
    5.0L
  • 31
    10-865982007 SCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor
    350 Mag / 377 Mag
    SCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor
    350 Mag / 377 Mag
  • -
    8M0088396 LONGBLOCK ASSEMBLY
    5.0L MPI
    LONGBLOCK ASSEMBLY
    5.0L MPI
  • -
    800-866138A03 LONGBLOCK ASSEMBLY
    350 MAG-MPI
    LONGBLOCK ASSEMBLY
    350 MAG-MPI
  • -
    879288A06 LONGBLOCK ASSEMBLY
    377 MAG
    LONGBLOCK ASSEMBLY
    377 MAG
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • -
    27-75611A03 GASKET SET, Cylinder Head
    GASKET SET, Cylinder Head
