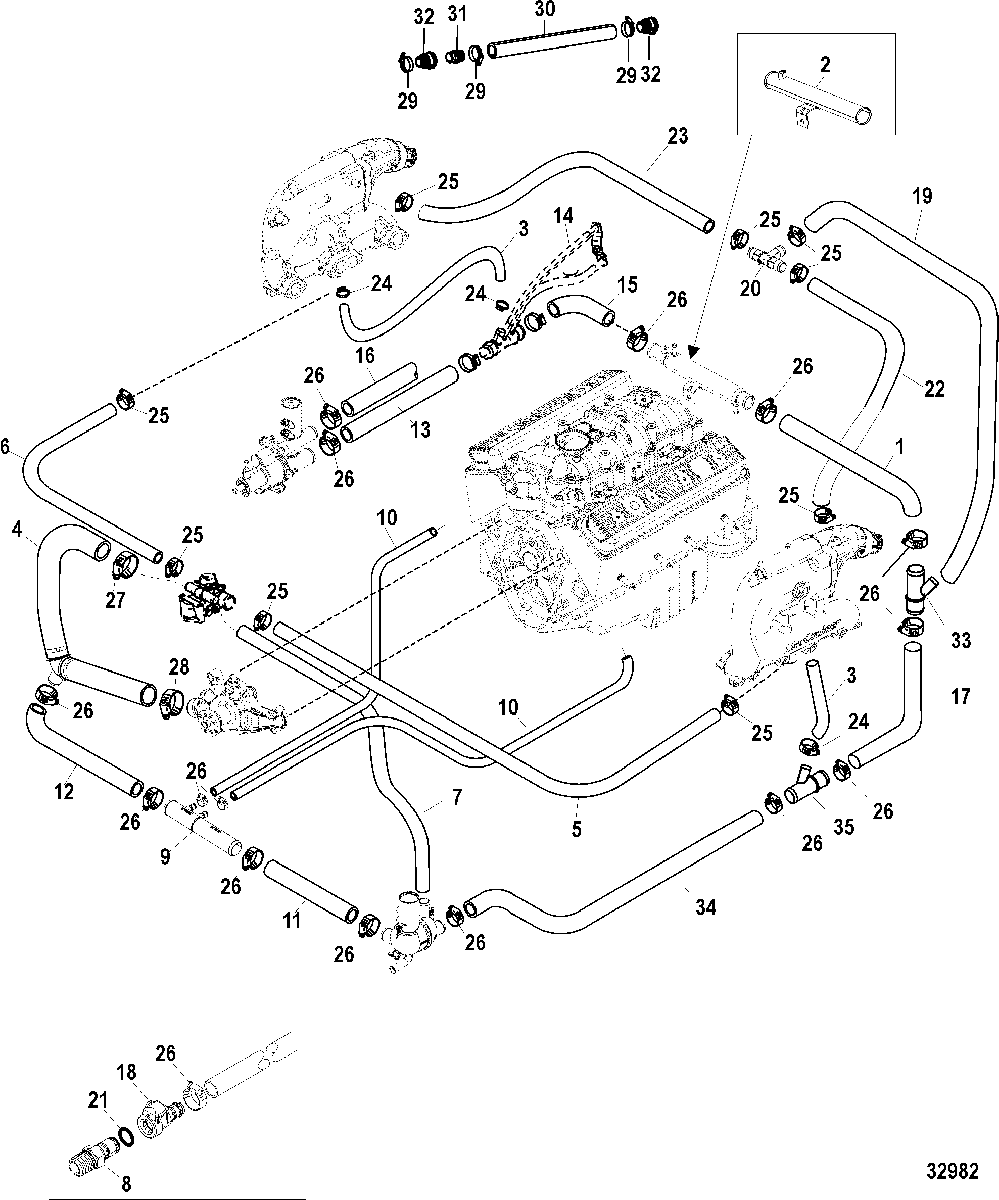

Standard Cooling System (Bravo), Air, 3 & 7 Point Drain для Mercruiser - 377 MAG MPI BRAVO EC 1A343300 THRU 1A611927
-
№АртикулНазвание
-
132-8M2004196 HOSE, Power Steering Cooler to Y-FittingHOSE, Power Steering Cooler to Y-Fitting
-
132-8M2014425 HOSE, Tube to Y-Fitting
AxiusHOSE, Tube to Y-Fitting
Axius -
2863841T TUBE, WaterTUBE, Water
-
332-8M0062634 HOSE, (44.00 Inches Bulk), Exhaust Manifold to Fitting
3 Point and Air Actuated Drain (Port-9 Inches, Starboard 3.5 Inches)HOSE, (44.00 Inches Bulk), Exhaust Manifold to Fitting
3 Point and Air Actuated Drain (Port-9 Inches, Starboard 3.5 Inches) -
332-8M0062634 HOSE, (44.00 Inches Bulk), Port Exhaust Manifold to Fitting
Cut to 17 Inches, AxiusHOSE, (44.00 Inches Bulk), Port Exhaust Manifold to Fitting
Cut to 17 Inches, Axius -
432-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating PumpHOSE ASSEMBLY, Thermostat Housing to Circulating Pump
-
532-863458 HOSE, Thermostat Housing to Port ManifoldHOSE, Thermostat Housing to Port Manifold
-
632-863459 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
732-8M2003797 HOSE, Distribution Housing to Thermostat HousingHOSE, Distribution Housing to Thermostat Housing
-
822-862603 FITTING, Male Quick Connector, Threaded - Engine BlockFITTING, Male Quick Connector, Threaded - Engine Block
-
922-864989A01 FITTING ASSEMBLY, Lower DistributionFITTING ASSEMBLY, Lower Distribution
-
1032-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
Port 23 Inches, Starboard 17 InchesHOSE, Cylinder Block Drain to Distribution Fitting
Port 23 Inches, Starboard 17 Inches -
1132-863490 HOSE, Water Drain Accumulator to Distribution FittingHOSE, Water Drain Accumulator to Distribution Fitting
-
1132-8M2010477 HOSE, Distribution Housing to Circulation PumpHOSE, Distribution Housing to Circulation Pump
-
1232-865394 HOSEHOSE
-
1332-8M2021656 HOSE, Sea Pump to Water Orifice
3 Point and 7 Point DrainHOSE, Sea Pump to Water Orifice
3 Point and 7 Point Drain -
1332-865234 HOSE, Sea Pump to Water Orifice
Air Actuated DrainHOSE, Sea Pump to Water Orifice
Air Actuated Drain -
1532-8M2021655 HOSE, Water Orifice to Power Steering CoolerHOSE, Water Orifice to Power Steering Cooler
-
1632-8M0062666 HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water PumpHOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump
-
1732-8M2008992 HOSE, Y-Fitting to Water Distribution Housing
7 Point DrainHOSE, Y-Fitting to Water Distribution Housing
7 Point Drain -
1732-8M2004199 HOSE, Y-Fitting to Drain Fitting
Air Actuated and 3 Point DrainHOSE, Y-Fitting to Drain Fitting
Air Actuated and 3 Point Drain -
1732-8M2013927 HOSE, Y-Fitting to Drain Fitting
Air Actuated, AxiusHOSE, Y-Fitting to Drain Fitting
Air Actuated, Axius -
1732-8M2013926 HOSE, Y-Fitting to Distribution Housing
7 Point Drain, AxiusHOSE, Y-Fitting to Distribution Housing
7 Point Drain, Axius -
1822-862225 FITTING, Pushlock - Block Drian HoseFITTING, Pushlock - Block Drian Hose
-
1932-8M2012165 HOSE, Y-Fitting to Tee FittingHOSE, Y-Fitting to Tee Fitting
-
1932-8M2013922 HOSE, Y-Fitting to Tee Fitting
AxiusHOSE, Y-Fitting to Tee Fitting
Axius -
2022-8M2014001 FITTING, Tee, GreenFITTING, Tee, Green
-
2125-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2232-8M2012166 HOSE, Tee Fitting to Port ElbowHOSE, Tee Fitting to Port Elbow
-
2232-8M2013923 HOSE, Tee Fitting to Exhaust Port
AxiusHOSE, Tee Fitting to Exhaust Port
Axius -
2332-8M2012167 HOSE, Tee Fitting to Starboard ElbowHOSE, Tee Fitting to Starboard Elbow
-
2332-8M2013924 HOSE, Tee Fitting to Exhaust Starboard
AxiusHOSE, Tee Fitting to Exhaust Starboard
Axius -
2454-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
2554-815504216 CLAMP, Worm Gear (1.56 Diameter)CLAMP, Worm Gear (1.56 Diameter)
-
2654-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
2754-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
2854-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
2954-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
3032-8M0062653 HOSE, (4.00 Inches)HOSE, (4.00 Inches)
-
3122-865362 QUICK CONNECT, Transom HoseQUICK CONNECT, Transom Hose
-
3222-865324 QUICK CONNECT, Transom HoseQUICK CONNECT, Transom Hose
-
3322-8M2003728 Y-FITTINGY-FITTING
-
3432-866331 HOSE, Drain Fitting to Distribution Housing
Air Actuated and 3 Point DrainHOSE, Drain Fitting to Distribution Housing
Air Actuated and 3 Point Drain -
3432-8M2007277 HOSE, Drain Fitting to Distribution Housing
AxiusHOSE, Drain Fitting to Distribution Housing
Axius -
3522-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Air Actuated and 3 Point DrainFITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Air Actuated and 3 Point Drain
