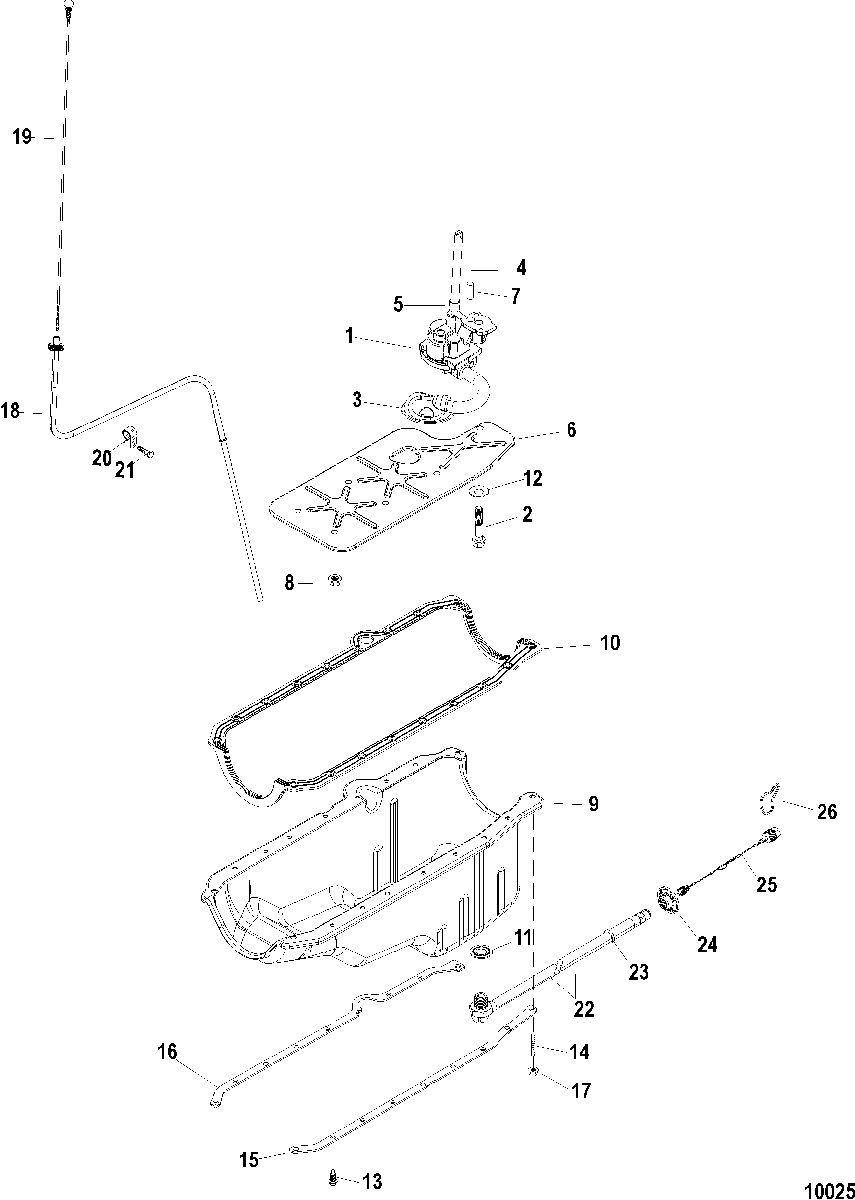

Oil Pan and Oil Pump для Mercruiser - 377 MAG MPI BRAVO EC 1A343300 THRU 1A611927
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-17346 SCREW, Oil PumpSCREW, Oil Pump
-
3809909 SCREEN, Oil Pump Pick UpSCREEN, Oil Pump Pick Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR, OilDEFLECTOR, Oil
-
717-843378 PIN, Dowel, Alignment, Oil PumpPIN, Dowel, Alignment, Oil Pump
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9809910 PAN, OilPAN, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1127-8M0077608 GASKET, Drain ScrewGASKET, Drain Screw
-
1212-27339 WASHERWASHER
-
1310-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1416-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1514257 REINFORCEMENT, PortREINFORCEMENT, Port
-
1614256 REINFORCEMENT, StarboardREINFORCEMENT, Starboard
-
1711-11971 NUT, (.312-18)NUT, (.312-18)
-
18860274A2 TUBE ASSEMBLY, DipstickTUBE ASSEMBLY, Dipstick
-
19861942T7 DIPSTICKDIPSTICK
-
2054-805625 CLIP, Dipstick TubeCLIP, Dipstick Tube
-
2110-8M0040582 SCREWSCREW
-
2232-865281 HOSE, Oil DrainHOSE, Oil Drain
-
2232-865280 HOSE, Oil Drain
(Jackshaft Models)HOSE, Oil Drain
(Jackshaft Models) -
2354-863481 CLAMP, Ty StrapCLAMP, Ty Strap
-
24862777 FLANGE, DrainFLANGE, Drain
-
25862827 TETHER ASSEMBLYTETHER ASSEMBLY
-
2654-805524 CLIPCLIP
-
-27-861246A06 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
