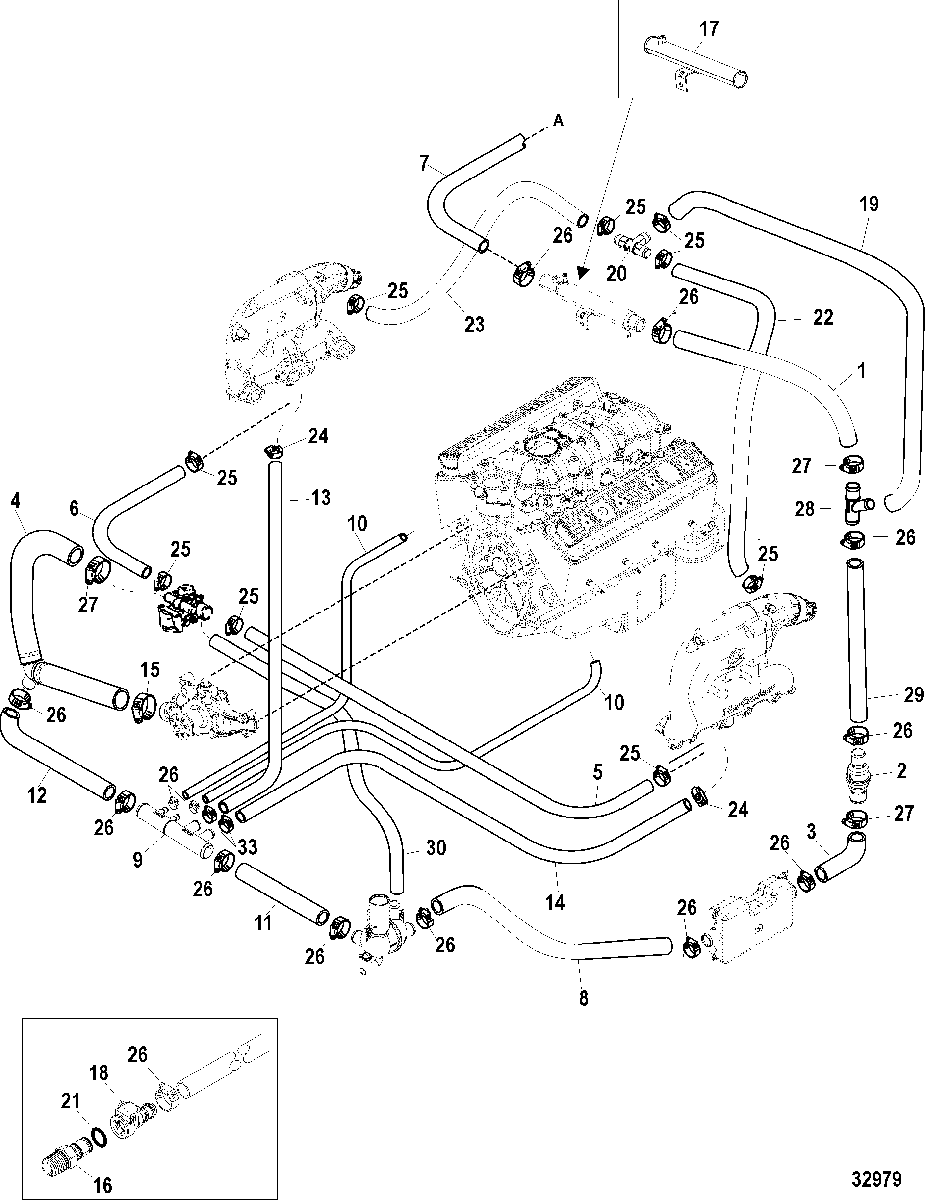

Standard Cooling System (Alpha), Single and 7 Point Drain для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A611928 THRU 1A623184
-
№АртикулНазвание
-
132-8M2004196 HOSE, Power Steering Cooler to Check ValveHOSE, Power Steering Cooler to Check Valve
-
221-864206A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
332-863623 HOSE, Check Valve to Fuel CoolerHOSE, Check Valve to Fuel Cooler
-
432-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating PumpHOSE ASSEMBLY, Thermostat Housing to Circulating Pump
-
532-863458 HOSE, Thermostat Housing to Port ManifoldHOSE, Thermostat Housing to Port Manifold
-
632-863459 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
732-807661 HOSE, Transom Assembly to Power Steering CoolerHOSE, Transom Assembly to Power Steering Cooler
-
832-863670 HOSE, Fuel Cooler to Water Distribution HousingHOSE, Fuel Cooler to Water Distribution Housing
-
922-864621A1 FITTING ASSEMBLY, Lower DistributionFITTING ASSEMBLY, Lower Distribution
-
1032-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
Port Cut to 23 Inches, Starboard 17 InchesHOSE, Cylinder Block Drain to Distribution Fitting
Port Cut to 23 Inches, Starboard 17 Inches -
1132-863490 HOSE, Water Drain Accumulator to Distribution FittingHOSE, Water Drain Accumulator to Distribution Fitting
-
1132-8M2010477 HOSE, Water Distribution Housing to Circulation Pump
7 Point DrainHOSE, Water Distribution Housing to Circulation Pump
7 Point Drain -
1232-863491 HOSE, Distribution Fitting to Y-FittingHOSE, Distribution Fitting to Y-Fitting
-
1332-8M0062634 HOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting
Cut to 22 Inch LengthHOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting
Cut to 22 Inch Length -
1432-8M0062634 HOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting
Cut to 31 Inch LengthHOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting
Cut to 31 Inch Length -
1554-815504232 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
1622-862603 FITTING, Male Quick Connector, ThreadedFITTING, Male Quick Connector, Threaded
-
17863841T TUBE, Water, Brass
Compact Hydraulic SteeringTUBE, Water, Brass
Compact Hydraulic Steering -
1822-862225 FITTING, PushlockFITTING, Pushlock
-
1932-8M2012165 HOSE, Y-Fitting to Tee FittingHOSE, Y-Fitting to Tee Fitting
-
2022-8M2014002 FITTING, Tee, RedFITTING, Tee, Red
-
2125-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2232-8M2012166 HOSE, Tee Fitting to Port ElbowHOSE, Tee Fitting to Port Elbow
-
2332-8M2012167 HOSE, Tee Fitting to Starboard ElbowHOSE, Tee Fitting to Starboard Elbow
-
2454-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
2554-815504216 CLAMP, Worm Gear (1.56 Diameter)CLAMP, Worm Gear (1.56 Diameter)
-
2654-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
2754-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
2822-8M2003728 Y-FITTINGY-FITTING
-
2932-8M2010479 HOSE, Y-Fitting to Check ValveHOSE, Y-Fitting to Check Valve
-
3032-8M2003797 HOSE, Distribution Housing to Thermostat HousingHOSE, Distribution Housing to Thermostat Housing
