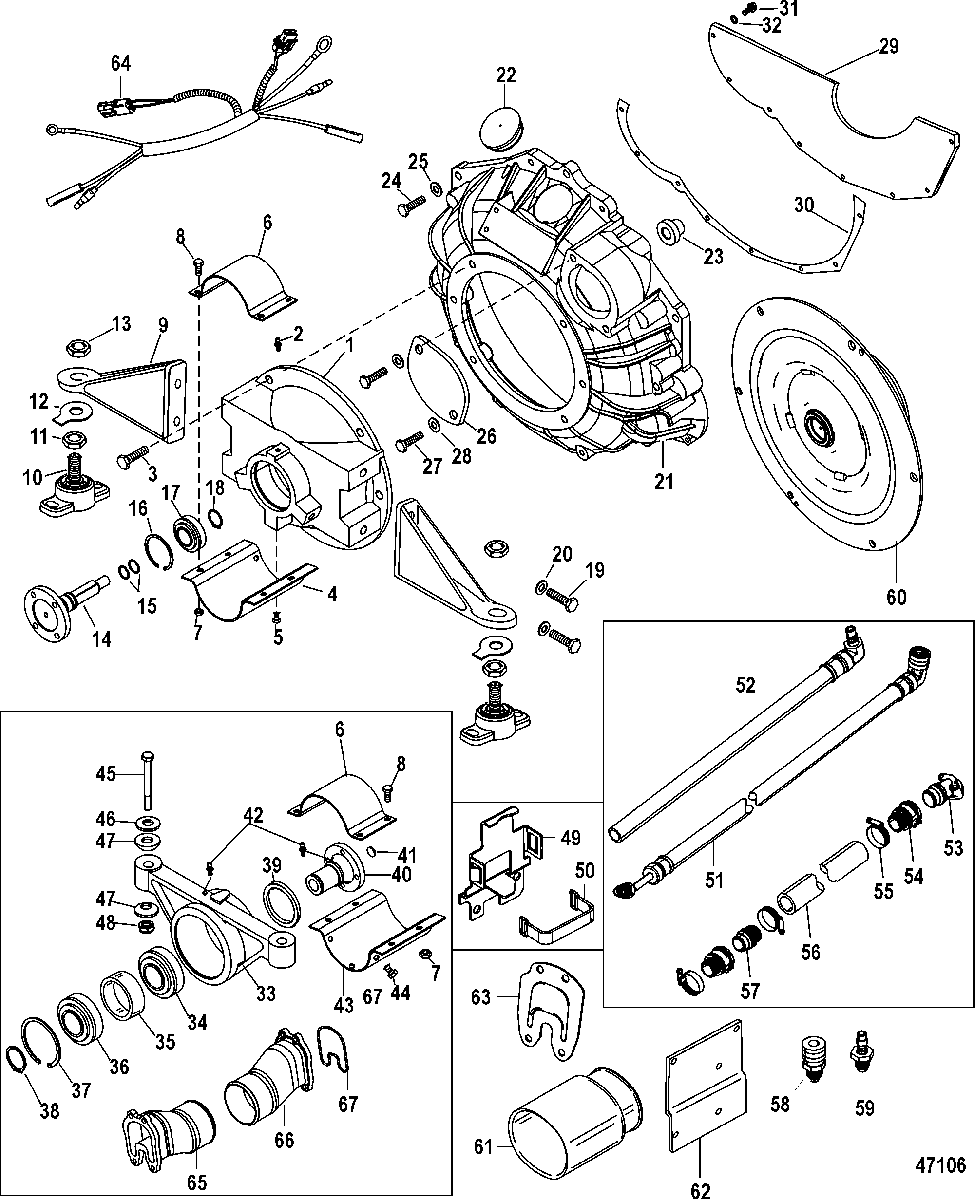

Jackshaft Main Kit для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A611928 THRU 1A623184

  • №
    Артикул
    Название
  • -
    98634A20 EXTENSION KIT, Jackshaft Kit
    EXTENSION KIT, Jackshaft Kit
  • 1
    93911A4 HOUSING ASSEMBLY, Shaft Extension Support
    HOUSING ASSEMBLY, Shaft Extension Support
  • 2
    22-74036 FITTING, Grease
    (Use with greased bearing)
    FITTING, Grease
    (Use with greased bearing)
  • 2
    10-8M2015913 PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
    PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
  • 3
    10-47651 SCREW, (.437-14 x 1.50)
    SCREW, (.437-14 x 1.50)
  • 4
    93918A1 SHIELD, Lower
    SHIELD, Lower
  • 5
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 6
    93919A1 SHIELD, Upper
    SHIELD, Upper
  • 7
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 8
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 9
    93923A1 MOUNT ASSEMBLY, Flywheel Housing
    MOUNT ASSEMBLY, Flywheel Housing
  • 10
    814263A1 BASE ASSEMBLY, Mount Assembly
    BASE ASSEMBLY, Mount Assembly
  • 11
    11-816331 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 12
    14-12657 TAB WASHER
    TAB WASHER
  • 13
    11-859126 NUT, (.750-16)
    NUT, (.750-16)
  • 14
    93906A2 SHAFT, Output
    SHAFT, Output
  • 15
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 16
    53-94104 RING, Retaining
    RING, Retaining
  • 17
    30-879194A03 GIMBAL BEARING KIT
    GIMBAL BEARING KIT
  • 18
    53-8M0141818 RING, Retaining
    RING, Retaining
  • 19
    10-47651 SCREW, (.437-14 x 1.50)
    SCREW, (.437-14 x 1.50)
  • 20
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 21
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 22
    19-12304 PLUG, Timing Window
    PLUG, Timing Window
  • 23
    23-49126 BUSHING, Pilot
    V8
    BUSHING, Pilot
    V8
  • 23
    30-863864 BEARING, Pilot
    496
    BEARING, Pilot
    496
  • 24
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 24
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 24
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 25
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 26
    939201 PLATE, Cover
    PLATE, Cover
  • 27
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 28
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 29
    818718A3 COVER KIT, Flywheel Inspection
    COVER KIT, Flywheel Inspection
  • 30
    27-86015 GASKET, Flywheel Inspection Cover
    GASKET, Flywheel Inspection Cover
  • 31
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 32
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 33
    817416A4 HOUSING ASSEMBLY, Bearing
    HOUSING ASSEMBLY, Bearing
  • 34
    30-93944A2 BEARING SET, Ball
    Includes Part Number 36
    BEARING SET, Ball
    Includes Part Number 36
  • 35
    23-817417T SPACER
    SPACER
  • 36
    30-93944A2 BEARING SET, Ball
    Includes Part Number 34
    BEARING SET, Ball
    Includes Part Number 34
  • 37
    53-93914 RING, Retaining
    RING, Retaining
  • 38
    53-93915 RING, Retaining
    RING, Retaining
  • 39
    26-93924 SEAL, Oil
    SEAL, Oil
  • 40
    NSS NOT SOLD SEPARATE, Input Shaft
    NOT SOLD SEPARATE, Input Shaft
  • 41
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 42
    22-74036 FITTING, Grease
    FITTING, Grease
  • 43
    93918A1 SHIELD, Lower
    SHIELD, Lower
  • 44
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 45
    10-57053 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 46
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 47
    12-42307 WASHER, Spherical
    WASHER, Spherical
  • 48
    11-898832 NUT, (.500-20)
    NUT, (.500-20)
  • 49
    860065A1 BRACKET KIT
    BRACKET KIT
  • 50
    808023T STRAP
    STRAP
  • 51
    32-8M0063022 HOSE, Female Quick Connect (Fittings on Both Ends)
    HOSE, Female Quick Connect (Fittings on Both Ends)
  • 52
    32-865390134 HOSE, Male Quick Connect (Fittings on One End)
    HOSE, Male Quick Connect (Fittings on One End)
  • 53
    865470 HOUSING, Inlet
    HOUSING, Inlet
  • 54
    22-865324 QUICK CONNECT
    QUICK CONNECT
  • 55
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 56
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    (Cut to 13 Inches)
    HOSE, (96.00 Inches Bulk)
    (Cut to 13 Inches)
  • 57
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 58
    22-865415 FITTING, PS Return
    FITTING, PS Return
  • 59
    22-865414001 FITTING, PS Pressure
    FITTING, PS Pressure
  • 60
    8M0098797 COUPLER ASSEMBLY, Engine - Short Steel Hub
    COUPLER ASSEMBLY, Engine - Short Steel Hub
  • 61
    78458A1 TUBE
    TUBE
  • 62
    41063A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 63
    861776A2 PLATE KIT
    PLATE KIT
  • 64
    84-41575A10 HARNESS ASSEMBLY
    Alpha
    HARNESS ASSEMBLY
    Alpha
  • 64
    84-41575A11 HARNESS ASSEMBLY
    Bravo
    HARNESS ASSEMBLY
    Bravo
  • 65
    862268T1 TUBE
    TUBE
  • 66
    862268T2 TUBE
    TUBE
  • 67
    41802 SEAL, Rubber
    SEAL, Rubber
