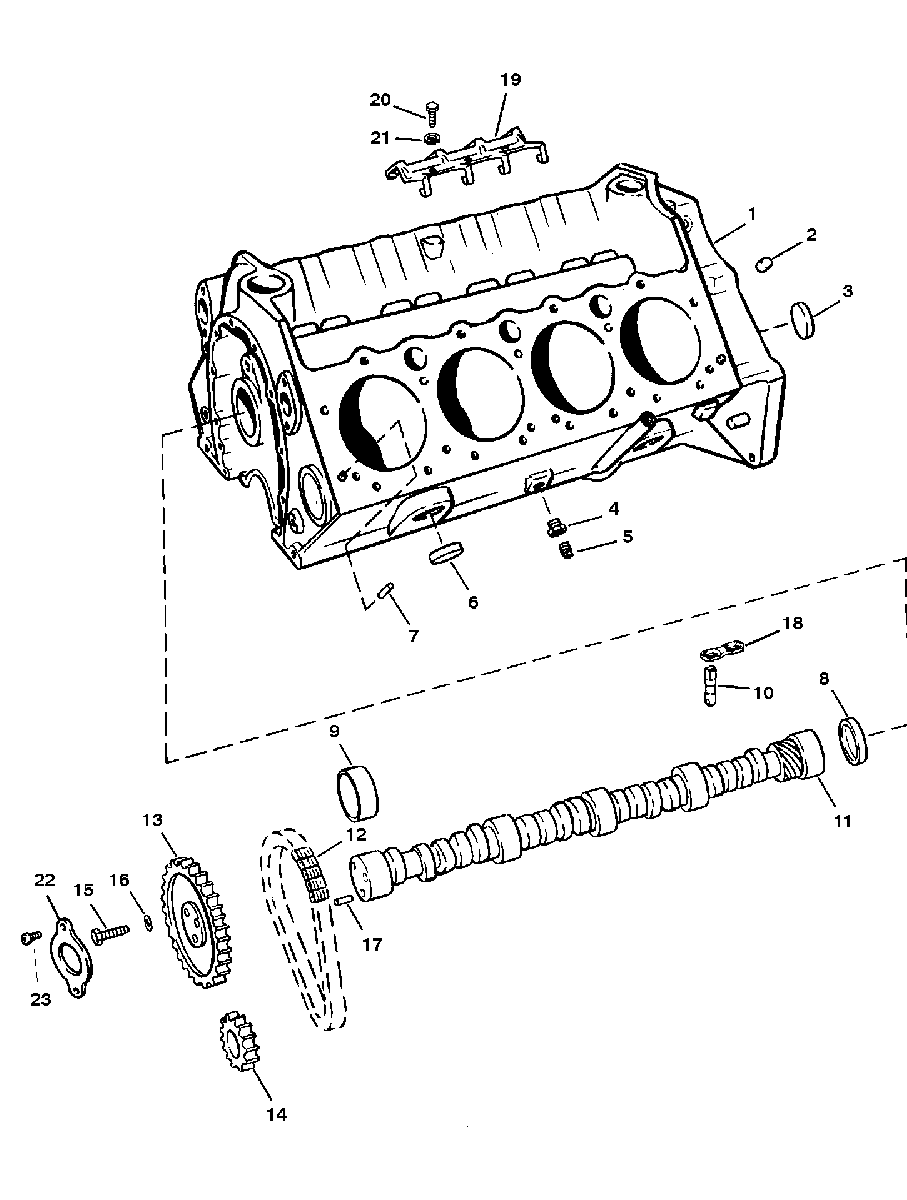

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 350 MAG. BRAVO MPI(GEN+) GM 350 V-8 1996 0F602000 THRU 0K001500

  • №
    Артикул
    Название
  • 1
    NSS CYLINDER BLOCK ASSEMBLY
    (ORDER LONG BLOCK 807449A1)
    CYLINDER BLOCK ASSEMBLY
    (ORDER LONG BLOCK 807449A1)
  • 2
    22-32561 PIPE PLUG (1/4 IN.)
    PIPE PLUG (1/4 IN.)
  • 3
    19-816565 EXPANSION PLUG (15/32 IN.)
    EXPANSION PLUG (15/32 IN.)
  • 4
    22-48556 BUSHING
    BUSHING
  • 5
    22-328022 PIPE PLUG
    PIPE PLUG
  • 6
    19-34270 EXPANSION PLUG (1-5/8 IN. DIA.)
    EXPANSION PLUG (1-5/8 IN. DIA.)
  • 7
    17-35465 DOWEL PIN (5/16 IN. DIA.)
    DOWEL PIN (5/16 IN. DIA.)
  • 8
    22-72640 PLUG
    PLUG
  • 9
    23-85674 BEARING UNIT (SET)
    BEARING UNIT (SET)
  • 10
    17340T1 LIFTER
    LIFTER
  • 11
    431-811658 CAMSHAFT
    CAMSHAFT
  • 12
    17161T TIMING CHAIN
    TIMING CHAIN
  • 13
    43-8116591 SPROCKET
    SPROCKET
  • 14
    43-17160 SPROCKET
    SPROCKET
  • 15
    10-8M0043993 BOLT (3/4 IN.)
    BOLT (3/4 IN.)
  • 16
    12-848136 WASHER
    WASHER
  • 17
    17-843378 PIN
    PIN
  • 18
    17341T RESTRICTOR
    RESTRICTOR
  • 19
    811662 RETAINER
    RETAINER
  • 20
    10-34500 SCREW
    SCREW
  • 21
    12-811664 LOCKWASHER
    LOCKWASHER
  • 22
    845941 RETAINER
    RETAINER
  • 23
    10-845943 SCREW
    SCREW
  • -
    92-809825 SEALER-RED RTV (Where applicable)
    SEALER-RED RTV (Where applicable)
  • -
    92-34227Q02 PERFECT SEAL (Where applicable)
    PERFECT SEAL (Where applicable)
  • -
    860186R5 MARINE LONG BLOCK ENGINE
    (SEE NOTE)
    MARINE LONG BLOCK ENGINE
    (SEE NOTE)
