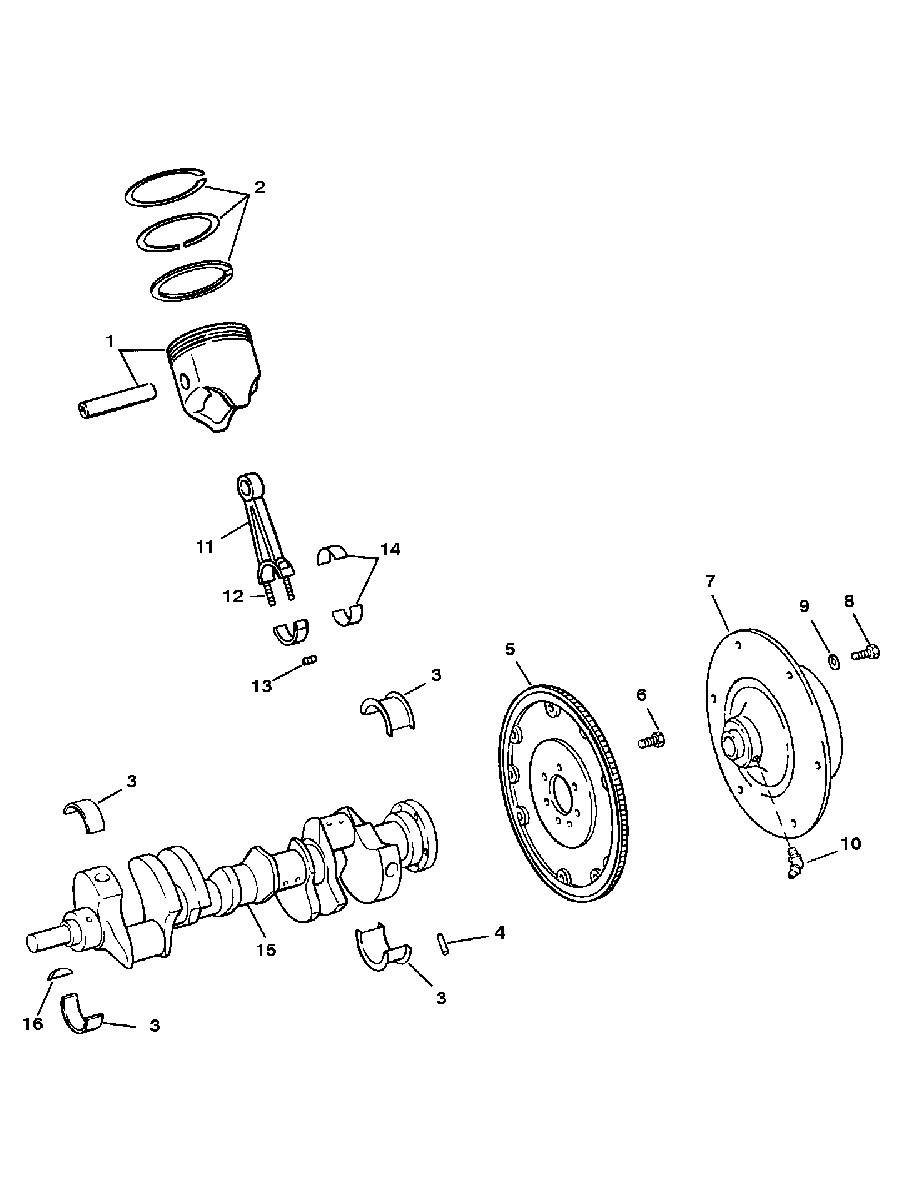

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 350 MAG. BRAVO MPI(GEN+) GM 350 V-8 1996 0F602000 THRU 0K001500

  • №
    Артикул
    Название
  • 1
    735-835001T PISTON/PISTON PIN
    (STANDARD)
    PISTON/PISTON PIN
    (STANDARD)
  • 1
    735-835002T PISTON/PISTON PIN
    (.5MM O.S.)
    PISTON/PISTON PIN
    (.5MM O.S.)
  • 2
    39-8018611 PISTON RING
    (STANDARD)
    PISTON RING
    (STANDARD)
  • 2
    39-835000 PISTON RING
    (.5MM O.S.)
    PISTON RING
    (.5MM O.S.)
  • 3
    23-818465 BEARING SET
    (STANDARD)
    BEARING SET
    (STANDARD)
  • 3
    23-818466 BEARING SET
    (.001 U.S.)
    BEARING SET
    (.001 U.S.)
  • 3
    23-818467 BEARING SET
    (.010 U.S.)
    BEARING SET
    (.010 U.S.)
  • 3
    23-818468 BEARING SET
    (.020 U.S.)
    BEARING SET
    (.020 U.S.)
  • 4
    17-43504 DOWEL PIN (1/4 IN. DIA.)
    DOWEL PIN (1/4 IN. DIA.)
  • 5
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 6
    10-845757 SCREW
    SCREW
  • 7
    8M0098795 COUPLING
    COUPLING
  • 8
    10-14883 SCREW
    SCREW
  • 9
    12-20572 WASHER
    WASHER
  • 10
    22-49099 GREASE FITTING
    GREASE FITTING
  • 11
    614-8164T CONNECTING ROD
    CONNECTING ROD
  • 12
    10-85802 BOLT
    BOLT
  • 13
    11-37493 NUT
    NUT
  • 14
    23-85701 BEARING UNIT
    (PAIR - STANDARD)
    BEARING UNIT
    (PAIR - STANDARD)
  • 14
    23-85702 BEARING UNIT
    (PAIR - .001 U.S.)
    BEARING UNIT
    (PAIR - .001 U.S.)
  • 14
    23-85703 BEARING UNIT
    (PAIR - .002 U.S.)
    BEARING UNIT
    (PAIR - .002 U.S.)
  • 14
    23-85704 BEARING UNIT
    (PAIR - .010 U.S.)
    BEARING UNIT
    (PAIR - .010 U.S.)
  • 14
    23-85705 BEARING UNIT
    (PAIR - .020 U.S.)
    BEARING UNIT
    (PAIR - .020 U.S.)
  • 15
    429-8M0054508 CRANKSHAFT
    CRANKSHAFT
  • 16
    28-34466 KEY
    KEY
