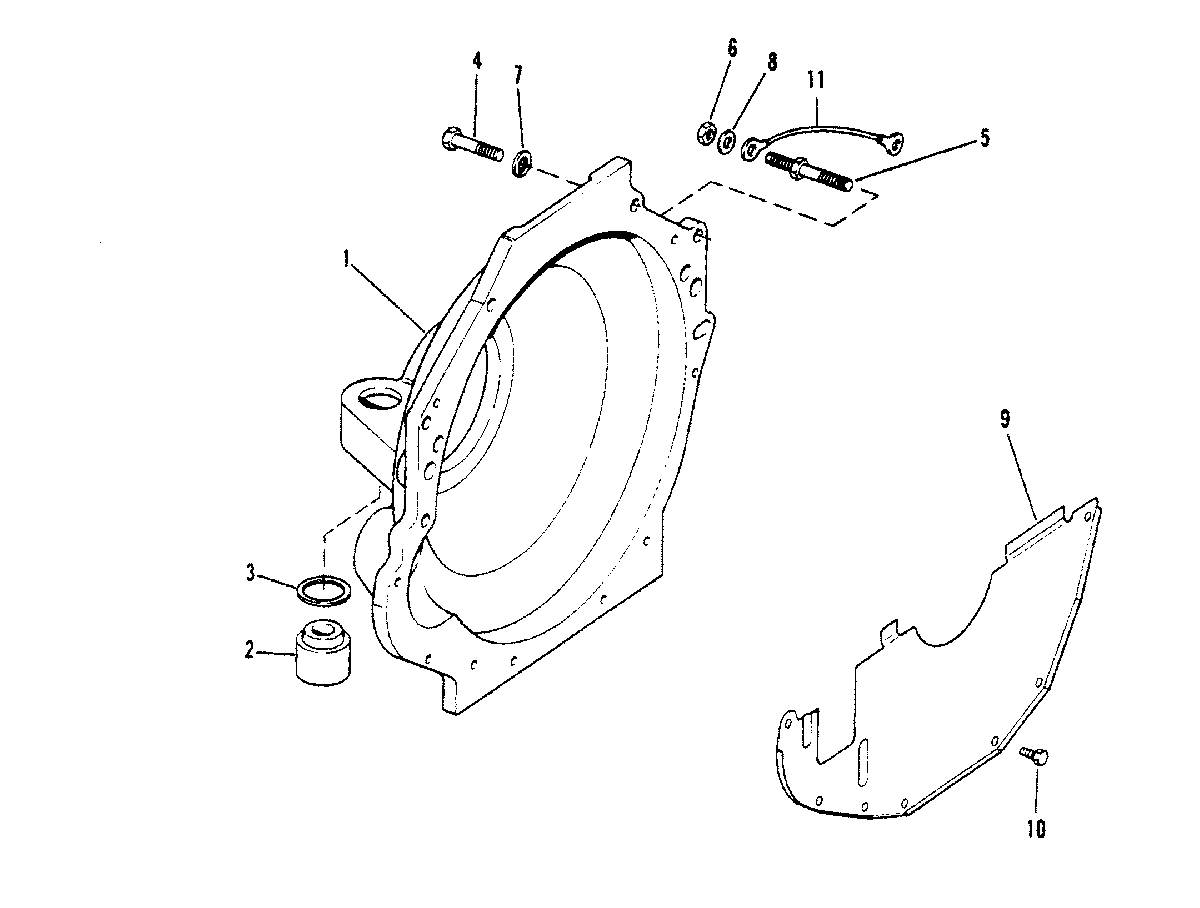

FLYWHEEL HOUSING для Mercruiser - 350 MAG. BRAVO MPI GM 350 V-8 1995 0F415189 THRU 0F601999
-
№АртикулНазвание
-
1865657A04 FLYWHEEL HOUSINGFLYWHEEL HOUSING
-
28M0103028 RUBBER MOUNTRUBBER MOUNT
-
323-99322 SPACERSPACER
-
410-37612 SCREW (1-1/4")SCREW (1-1/4")
-
410-358701 SCREW (2")SCREW (2")
-
516-861316 STUDSTUD
-
611-32219 NUTNUT
-
713-35048 LOCKWASHERLOCKWASHER
-
812-20572 WASHERWASHER
-
9807260A2 COVER ASSEMBLYCOVER ASSEMBLY
-
1010-32773 SCREWSCREW
-
1184-62826T06 WIREWIRE
Все узлы модели:
- ALTERNATOR (MANDO)
- CRANKSHAFT, PISTONS AND CONN. RODS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ELECTRICAL BOX AND COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- • FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FUEL RAILS
- INTAKE PLENUM AND FLAME ARRESTOR
- OIL FILTER AND ADAPTOR
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- SEA WATER PUMP ASSEMBLY
- SENDERS AND SENSORS
- SHIFT BRACKET
- STARTER AND ALTERNATOR
- STARTER MOTOR
- THERMOSTAT HOUSING (STANDARD COOLING)
- VAPOR SEPARATOR TANK
- VAPOR SEPARATOR TANK AND FUEL LINES
- WATER PUMP AND FRONT COVER
- WIRING HARNESS (EFI) (ILLUSTRATION)
- WIRING HARNESS (ENGINE) (ILLUSTRATION)
