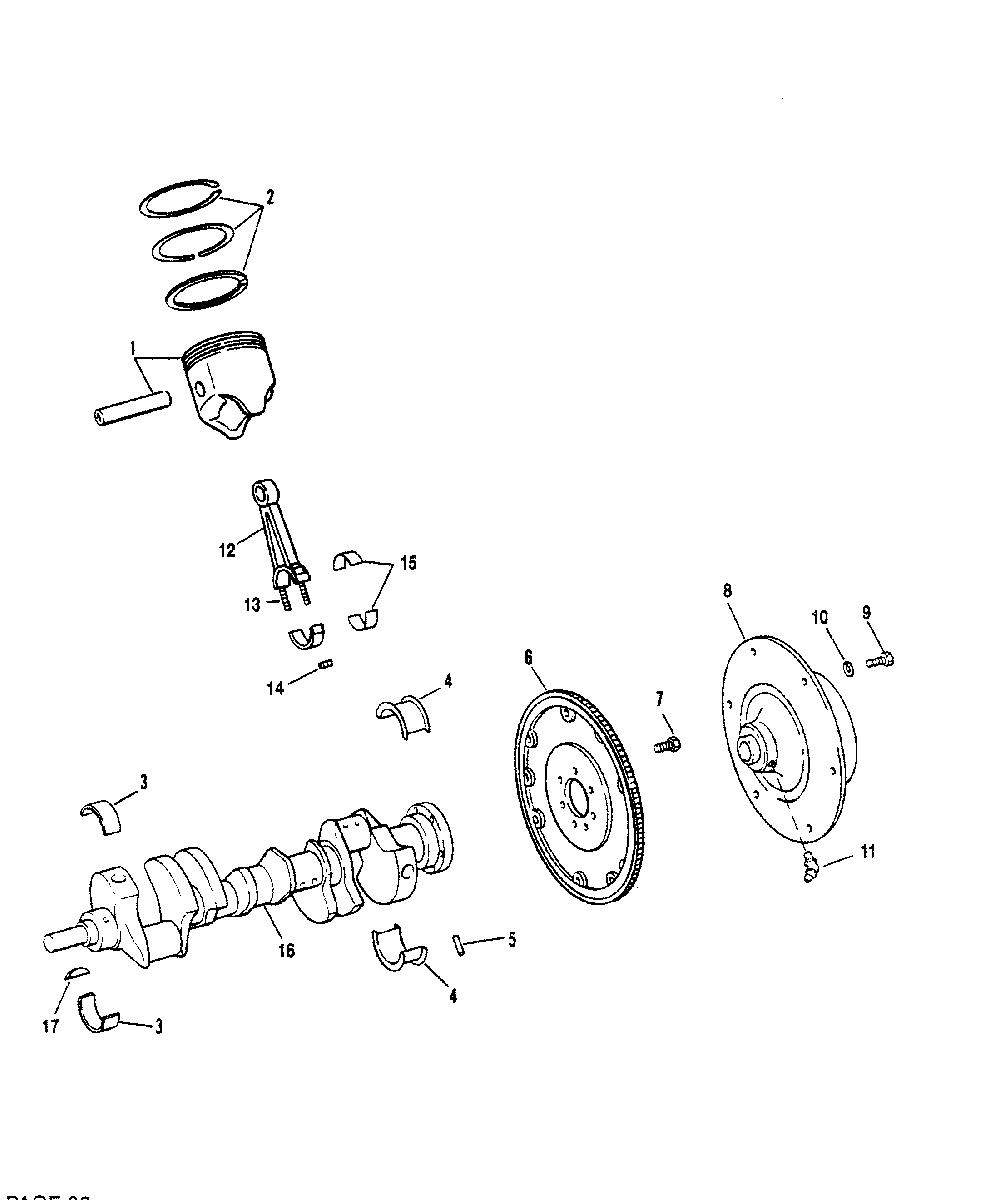

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 350 MAG. BRAVO MPI GM 350 V-8 1995 0F415189 THRU 0F601999

  • №
    Артикул
    Название
  • 1
    735-850097 PISTON/PISTON PIN (STANDARD)
    PISTON/PISTON PIN (STANDARD)
  • 1
    735-850098 PISTON/PISTON PIN (.030 O.S.)
    PISTON/PISTON PIN (.030 O.S.)
  • 2
    39-801861 PISTON RING (STANDARD) (SEE NOTE)
    PISTON RING (STANDARD) (SEE NOTE)
  • 2
    39-17465 PISTON RING (.030 O.S.)
    PISTON RING (.030 O.S.)
  • 3/4
    23-818465 BEARING SET (STANDARD)
    BEARING SET (STANDARD)
  • 3/4
    23-818466 BEARING SET (.001 U.S.)
    BEARING SET (.001 U.S.)
  • 3/4
    23-818467 BEARING SET (.010 U.S.)
    BEARING SET (.010 U.S.)
  • 3/4
    23-818468 BEARING SET (.020 U.S.)
    BEARING SET (.020 U.S.)
  • 5
    17-843378 DOWEL PIN (1/4" DIA.)
    DOWEL PIN (1/4" DIA.)
  • 6
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW
    SCREW
  • 8
    8M0098795 COUPLING
    COUPLING
  • 9
    10-14883 SCREW
    SCREW
  • 10
    12-20572 WASHER
    WASHER
  • 11
    22-49099 GREASE FITTING
    GREASE FITTING
  • 12
    614-8164T CONNECTING ROD
    CONNECTING ROD
  • 13
    10-85802 BOLT
    BOLT
  • 14
    11-37493 NUT
    NUT
  • 15
    23-85701 BEARING UNIT (PAIR - STANDARD)
    BEARING UNIT (PAIR - STANDARD)
  • 15
    23-85702 BEARING UNIT (PAIR - .001 U.S.)
    BEARING UNIT (PAIR - .001 U.S.)
  • 15
    23-85703 BEARING UNIT (PAIR - .002 U.S.)
    BEARING UNIT (PAIR - .002 U.S.)
  • 15
    23-85704 BEARING UNIT (PAIR - .010 U.S.)
    BEARING UNIT (PAIR - .010 U.S.)
  • 15
    23-85705 BEARING UNIT (PAIR - .020 U.S.)
    BEARING UNIT (PAIR - .020 U.S.)
  • 16
    429-9521T CRANKSHAFT
    CRANKSHAFT
  • 17
    28-34466 KEY
    KEY
