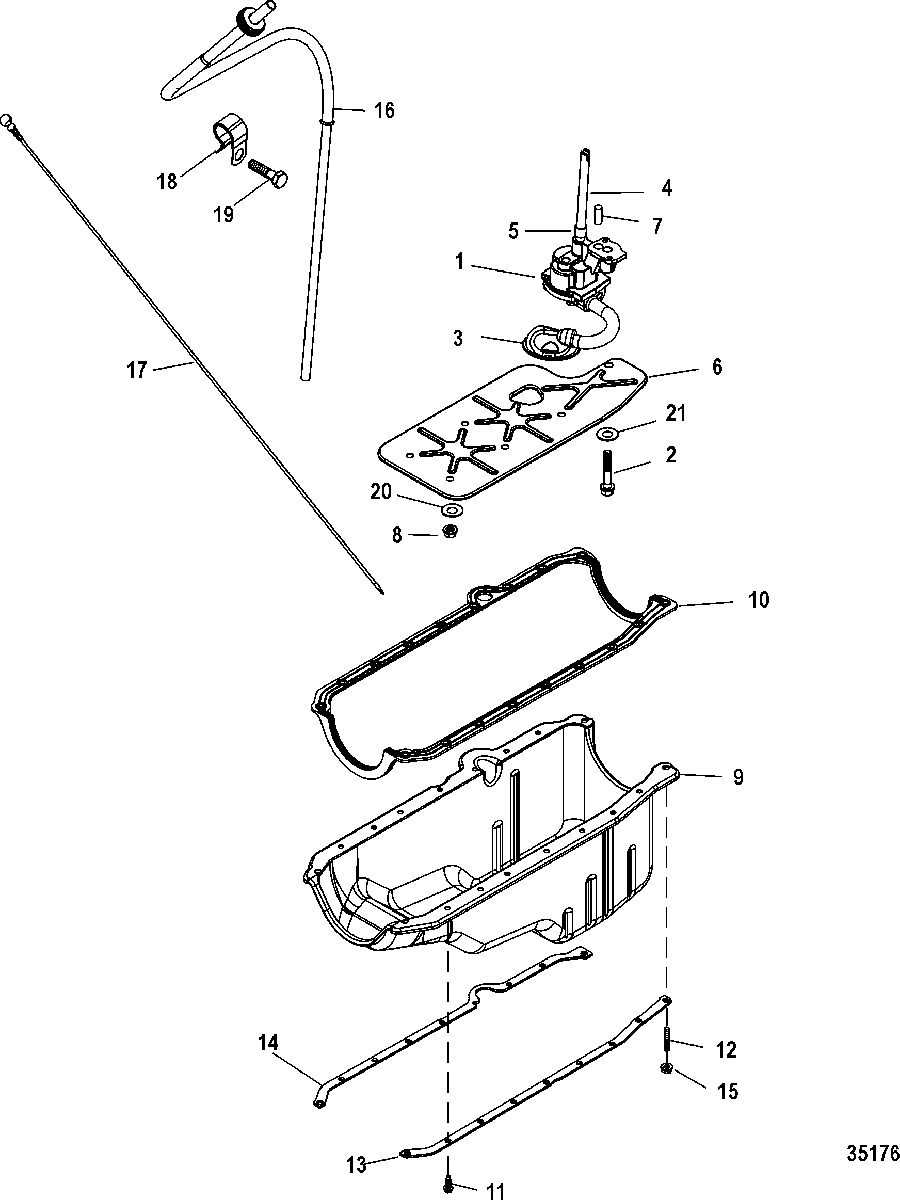

Oil Pan and Oil Pump для Mercruiser - 350 (4BBL) Crate Inboard 1G800000 & Up

  • №
    Артикул
    Название
  • 1
    809907002 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    10-17346 SCREW, Oil Pump
    SCREW, Oil Pump
  • 3
    809909 SCREEN, Oil Pump Pick-Up
    SCREEN, Oil Pump Pick-Up
  • 4
    36184 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    986021 DEFLECTOR, Oil
    DEFLECTOR, Oil
  • 7
    17-843378 PIN, Dowel, Alignment,Oil Pump
    PIN, Dowel, Alignment,Oil Pump
  • 8
    11-37500 NUT, (3/8-16)
    NUT, (3/8-16)
  • 9
    809910 PAN, Oil
    PAN, Oil
  • 10
    27-138651 GASKET, Oil Pan
    GASKET, Oil Pan
  • 11
    10-14070 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 12
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 13
    14257 REINFORCEMENT
    Port
    REINFORCEMENT
    Port
  • 14
    14256 REINFORCEMENT
    Starboard
    REINFORCEMENT
    Starboard
  • 15
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 16
    860274A2 TUBE ASSEMBLY, Dipstick
    TUBE ASSEMBLY, Dipstick
  • 17
    861942T7 DIPSTICK
    DIPSTICK
  • 18
    54-805625 CLIP, Dipsitck Tube
    CLIP, Dipsitck Tube
  • 19
    10-14070 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 20
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 21
    12-27339 WASHER
    WASHER
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
